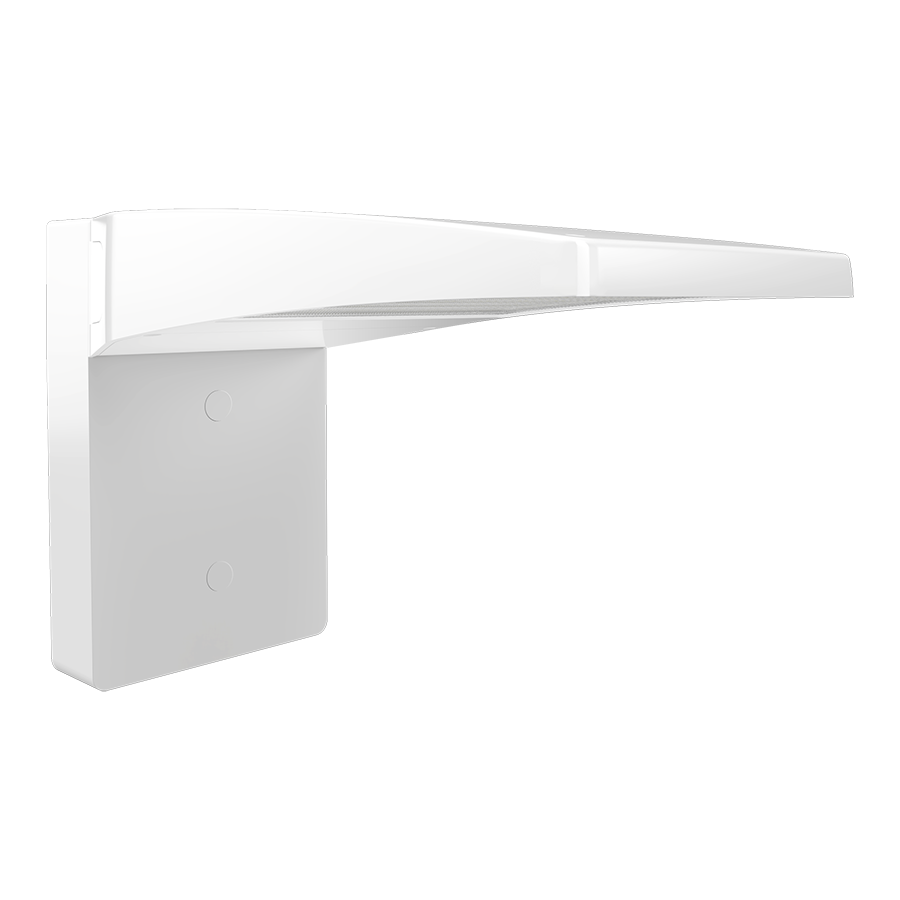

WPLEDMW/E
32W 3000/4000/5000K
- 100,000-Hour LED lifespan
- 0-10V dimming standard
- 5-Year, no-compromise warranty
Performance
| Watts | 32/24/16W |
| Color Temp | 3000/4000/5000K |
| Lumens | 2,020-4,151 lm |
| Efficacy | 123.8-148.5 lm/W |
| Color Accuracy | 82-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 0.26A/0.19A/0.13A |
| 208V | 0.16A/0.12A/0.08A |
| 240V | 0.14A/0.10A/0.07A |
| 277V | 0.12A/0.09A/0.06A |
| Input Watts | 14.8-31.2W |
Dimensions
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
32W/24W/16W (factory default: 24W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default: 4000K)
32W/24W/16W (factory default: 24W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default: 4000K)
Compliance
UL Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-FP7DFD
DLC Product Code: S-FP7DFD
Electrical
Driver
32W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.26A, 208V: 0.16A, 240V: 0.14A, 277V: 0.12A
24W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.19A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A
16W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.13A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A
24W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.19A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A
16W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.13A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.58% at 120V, 11.18% at 277V
Power Factor
99.5% at 120V, 92.3% at 277V
Photocell
Integrated photocell included with on/off switch
Surge Protection
L-L 2 kV; L-G 4 kV
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
0.466
Aux Power Supply
Yes
Dim to Off
Yes
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Optical
BUG Rating
32W: B1 U0 G1
24W: B1 U0 G1
16W: B1 U0 G1
24W: B1 U0 G1
16W: B1 U0 G1
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Full Cutoff
Allows for conformance to the IDA's fully shielding requirement, emitting no light above 90 degrees.
Housing
Die-cast aluminum
Lens
Acrylic lens
Reflector
High reflection polycarbonate
Cold Weather Starting
The minimum starting temperature is 0°C/32°F Ambient Temperature
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Integrated j-box and an optional wall plate included.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
