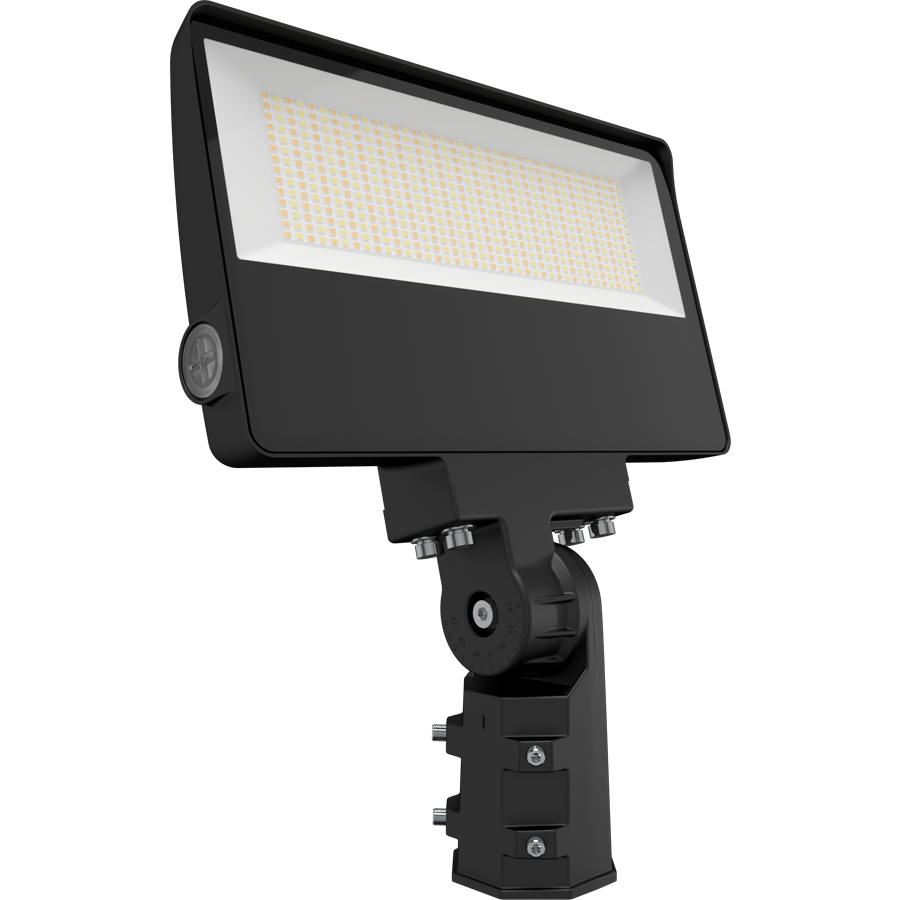

X15-150SF/480
X15-150SF/480
150W 3000K/4000K/5000K
- DLC Premium listed
- IP66 Rated protects against dust & water ingress
- IK07 Rating
- 100,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 150/130/110W |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 16518-23874 lm |
| Efficacy | 143-176.1 lm/W |
| Color Accuracy | 81-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.00A/0.00A/0.00A |
| 208V | 0.00A/0.00A/0.00A |
| 240V | 0.00A/0.00A/0.00A |
| 277V | 0.00A/0.00A/0.00A |
| Input Watts | 104.9-150.2W |
Dimensions
Weight: 7.5 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
150130/110W (factory default 150W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
On/Off Photocell (factory default "Off")
150130/110W (factory default 150W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
On/Off Photocell (factory default "Off")
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Aux Power Supply
No
Dim to Off
Yes
Surge Protection
4 kV
Photocell
Integrated photocell included with on/off switch
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
NEMA Type
NEMA Beam Spread 7H x 7V
BUG Rating
B4 U3 G2
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Slipfitter with tilt angle in 10° increments
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 122°F (50°C)
Lens
Glass
Housing
Die-cast aluminum
Reflector
White polycarbonate
IK Rating
IK07 Protected against 2 joules of impact. Equivalent to the impact of a 1.1 lbs. (.5kg) mass dropped from 15.8" (400mm) above the impacted surface.
Vibration Rating
3G vibration rating per ANSI C136.31
Effective Projected Area (EPA)
0.862 ft²
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products

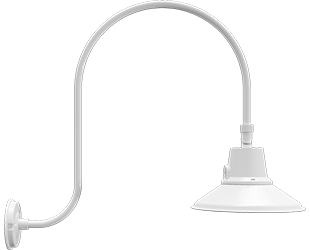

GN3FSTW
