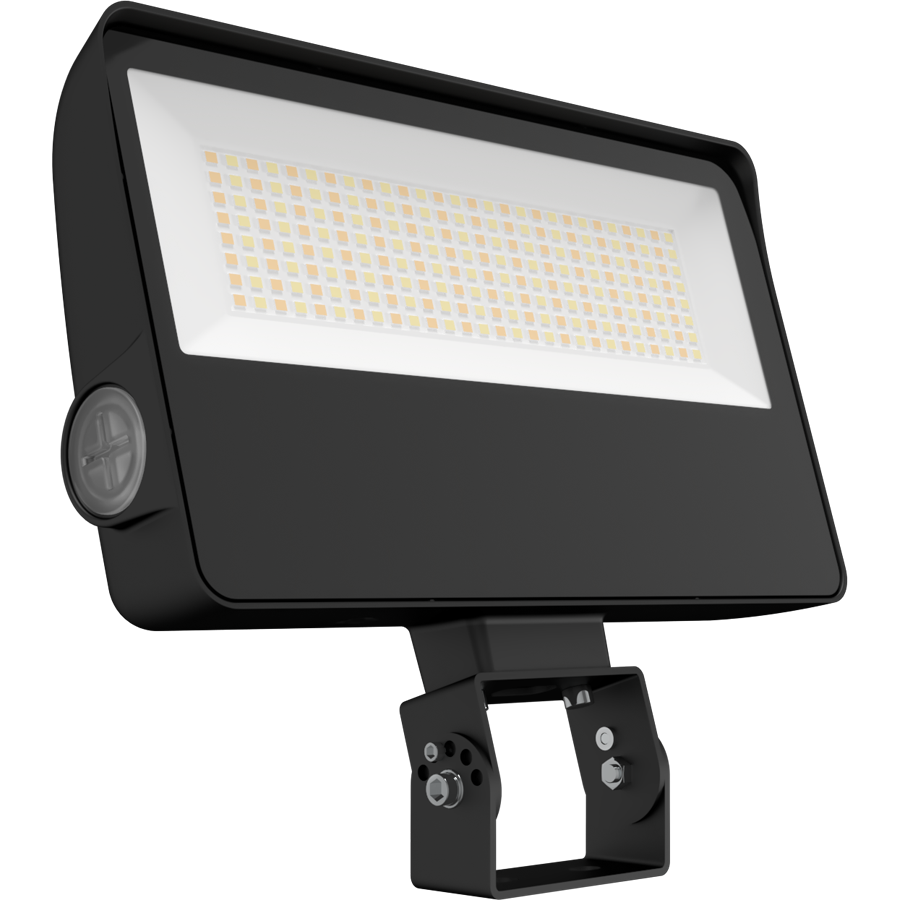

X15-60T

60W 3000K/4000K/5000K

DLC Premium listed

IP66 Rated protects against dust & water ingress

IK07 Rating

100,000-Hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	60/50/40W
Color Temp	3000K/4000K/5000K
Lumens	5998-9510 lm
Efficacy	145.1-174.9 lm/W
Color Accuracy	81-83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.51A/0.41A/0.32A
208V	0.29A/0.24A/0.22A
240V	0.25A/0.20A/0.19A
277V	0.23A/0.19A/0.16A
Input Watts	37.2-60.6W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 3.4 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
60/50/40W (factory default 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
On/Off Photocell (factory default "Off")

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP66 for dust and water

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Aux Power Supply

Dim to Off

Yes

Surge Protection

4 kV

Photocell

Integrated photocell included with on/off switch

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Optical

NEMA Type

NEMA Beam Spread 7H x 7V

BUG Rating

B3 U3 G1

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Trunnion with tilt angle in 30° increments

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Lens

Glass

Housing

Die-cast aluminum

Reflector

White polycarbonate

IK Rating

IK07 Protected against 2 joules of impact. Equivalent to the impact of a 1.1 lbs. (.5kg) mass dropped from 15.8" (400mm) above the impacted surface.

Vibration Rating

3G vibration rating per ANSI C136.31

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
