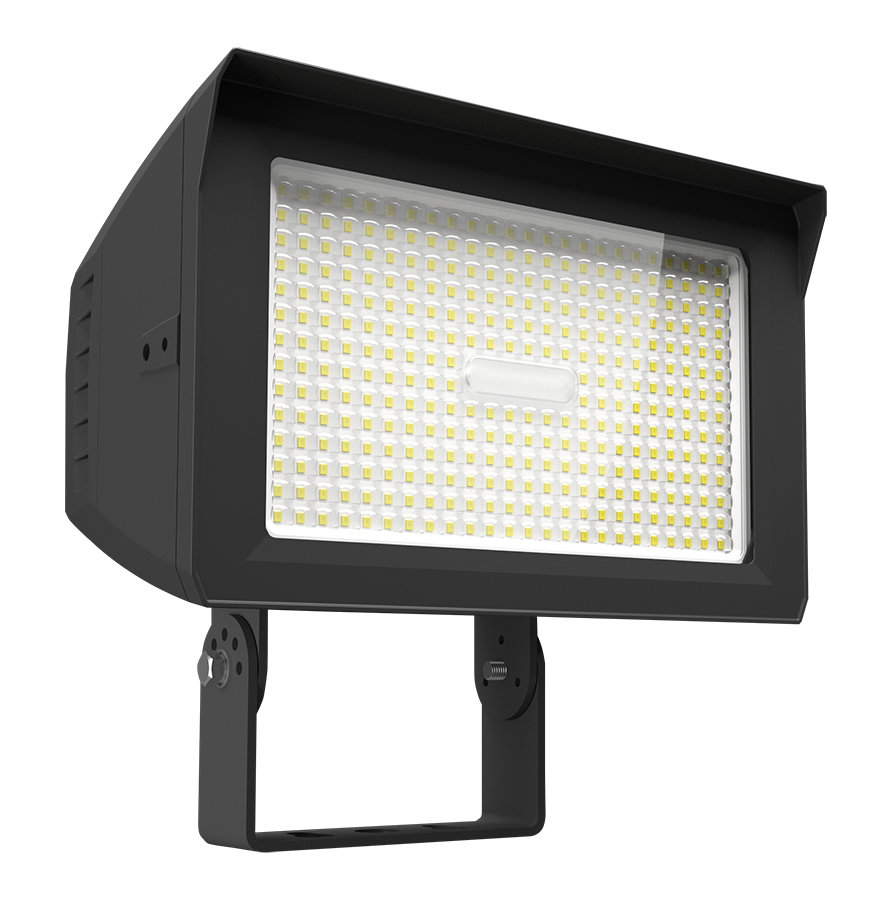

X22-150T
X22-150T
- DLC Premium listed
- IP65 Rated
- 50,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 150/125/100/75W |
| Color Temp | 3000/4000/5000K |
| Lumens | 10,736-23,793 lm |
| Efficacy | 128.9-173.3 lm/W |
| Color Accuracy | 82-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 1.20A |
| 208V | 0.71A |
| 240V | 0.62A |
| 277V | 0.56A |
| Input Watts | 71.8-153.1W |
Dimensions
Weight: 8.8 lbs
Technical Specifications
Field Adjustability
Optical Field Adjustability
90°, 75° and 55°
Field Adjustable
Field Adjustable Light Output:
150W/125W/100W/75W (factory default 150W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
150W/125W/100W/75W (factory default 150W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
150W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 1.20A, 208V: 0.71A, 240V: 0.62A, 277V: 0.56A
125W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 1.01A, 208V: 0.60A, 240V: 0.53A, 277V: 0.47A
100W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.83A, 208V: 0.49A, 240V: 0.43A, 277V: 0.39A
75W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.69A, 208V: 0.37A, 240V: 0.34A, 277V: 0.31A
120V: 1.20A, 208V: 0.71A, 240V: 0.62A, 277V: 0.56A
125W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 1.01A, 208V: 0.60A, 240V: 0.53A, 277V: 0.47A
100W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.83A, 208V: 0.49A, 240V: 0.43A, 277V: 0.39A
75W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.69A, 208V: 0.37A, 240V: 0.34A, 277V: 0.31A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
