XL22-60W

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

XL22-60W

60W 3000K/4000K/5000K

IP66 Rated

100,000-Hour LED lifespan

3000/4000/5000K CCT Adjustable

55/75/90° Selectable Beam Angle

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	60/50/40/30W
Color Temp	3000K/4000K/5000K
Lumens	4500-9474 lm
Efficacy	132.9-178.5 lm/W
Color Accuracy	82-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant
120V	0.52A
208V	0.31A
240V	0.27A
277V	0.23A
Input Watts	31-62.4W

EZ-Layout

Create Custom Lighting Layout

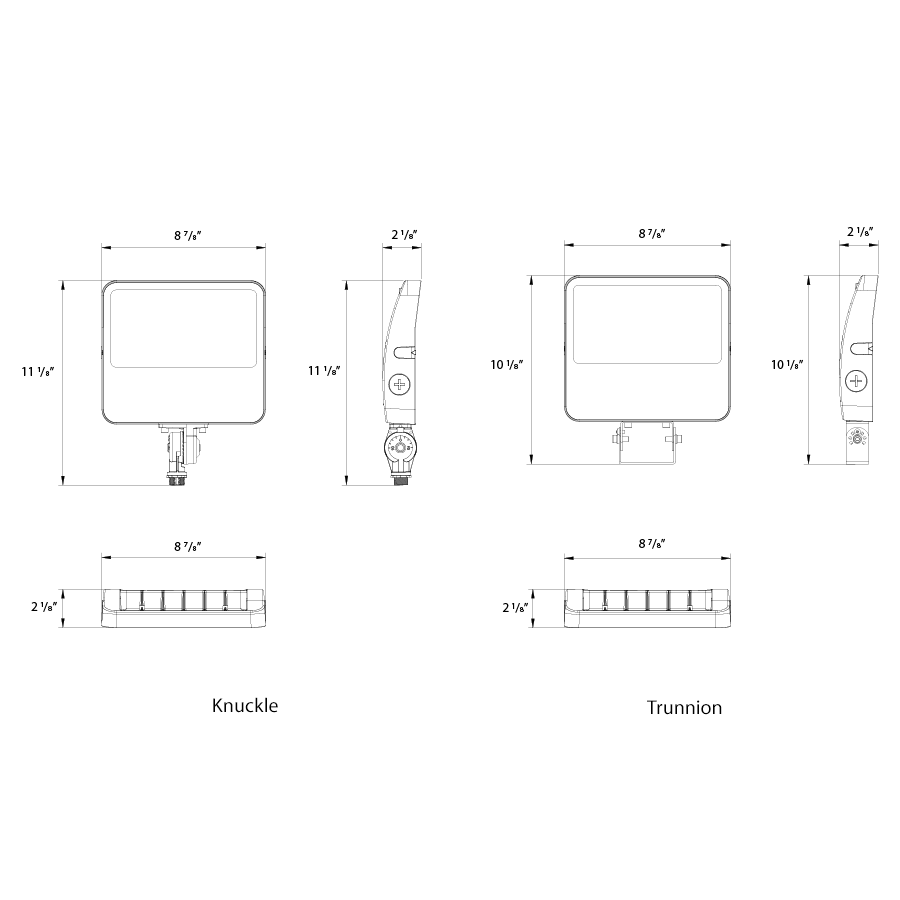

Dimensions

Weight: 4.5 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
60/50/40/30W (factory default 60W)
Color Temperature Adjustable:
3000K, 4000K and 5000K (factory default 4000K)
Optical Field Adjustable:7H x 6V/6H x 6V/5Hx5V (factory default 7Hx6V
On/Off Photocell (factory default "On")

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP66 for dust and water

Electrical

Driver

Constant Current, Class1, 120-277V, 50/60 Hz:
60W: 120V: 0.52A, 208V: 0.31A, 240V: 0.27A, 277V: 0.23A
50W: 120V: 0.44A , 208V: 0.26A, 240V: 0.23A, 277V: 0.19A
40W: 120V: 0.35A, 208V: 0.22A, 240V: 0.19A, 277V: 0.15A
30W: 120V: 0.26A, 208V: 0.18A, 240V: 0.16A, 277V: 0.11A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

11.31% at 120V, 19.24% at 277V

Power Factor

99.4% at 120V, 95.6% at 277V

Surge Protection

L-N: 4 kV
L/N-PE: 6 kV

Aux Power Supply

Yes

Dim to Off

Yes

Photocell

Integrated photocell included with on/off switch

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Color Consistency

3000K & 5000K: 5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
4000K: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Construction

IK Rating

IK06 Protected against 1 joules of impact. Equivalent to the impact of a 0.55 lbs. (.25kg) mass dropped from 15.8" (400mm) above the impacted surface.

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Housing

Die-cast aluminum

Lens

Polycarbonate lens

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

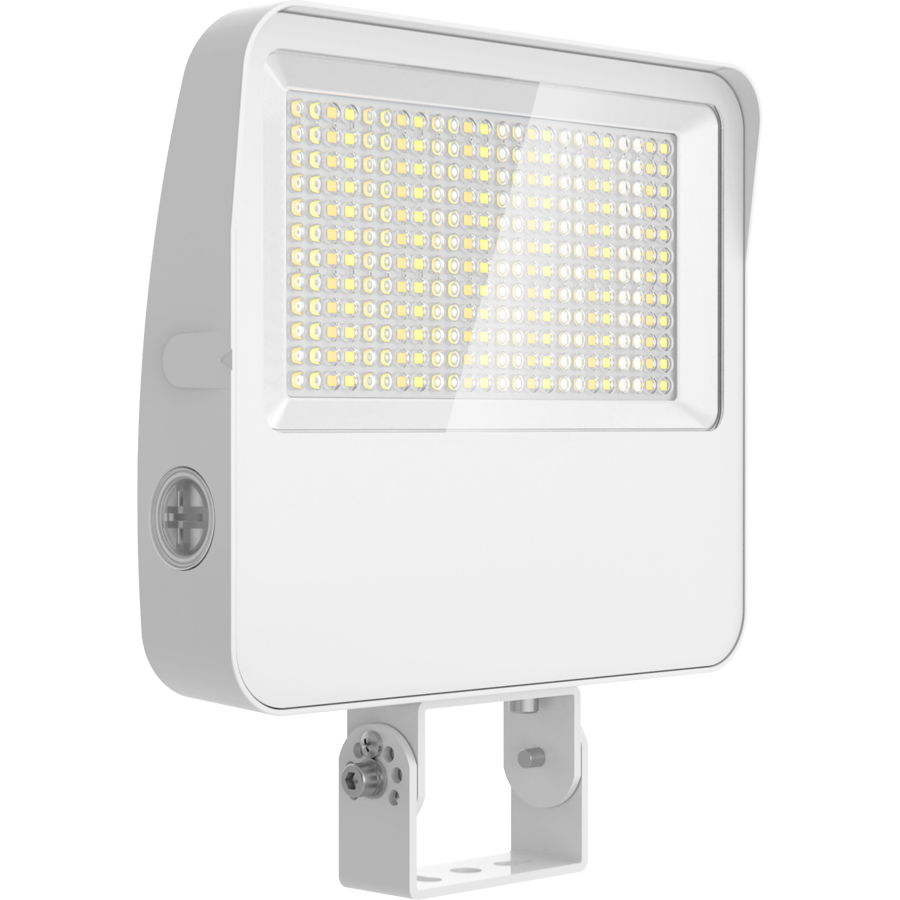

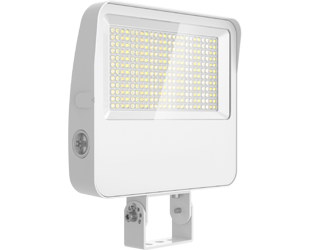

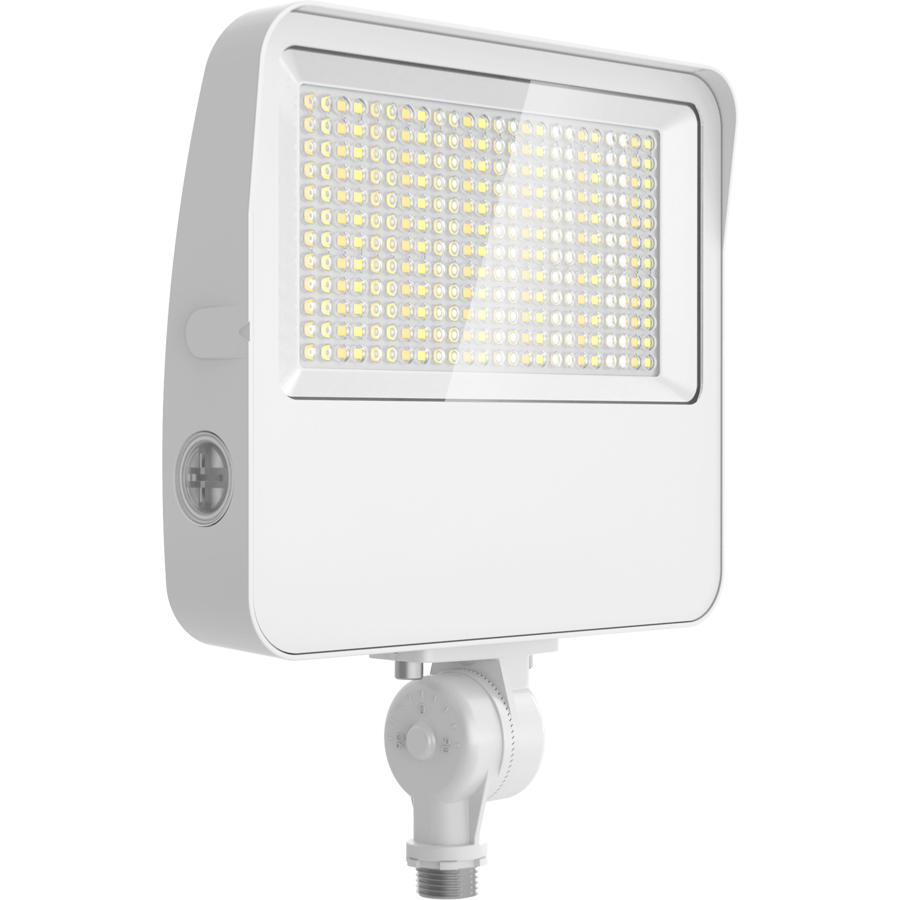

Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments. Trunnion kit is included.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
