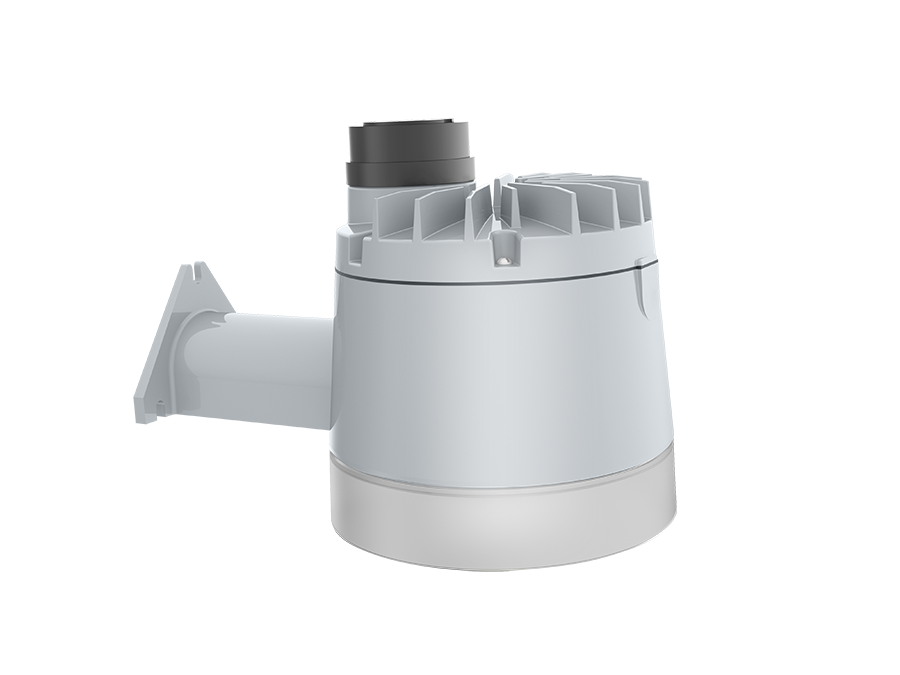

YBLED40N/D10/5PR
YBLED40N/D10/5PR
- Widespread light distribution illuminates large areas
- Vandal-resistant
- High-impact polycarbonate lens
- Rugged die-cast aluminum housing withstands harsh environments
- Integrated dusk to dawn photocell
- 100,000-hour LED lifespan
Performance
| Watts | 40W |
| Color Temp | 4000K (Neutral) |
| Lumens | 5,563 lm |
| Efficacy | 132.5 lm/W |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.4A |
| 208V | 0.217A |
| 240V | 0.188A |
| 277V | 0.17A |
| Input Watts | 42W |

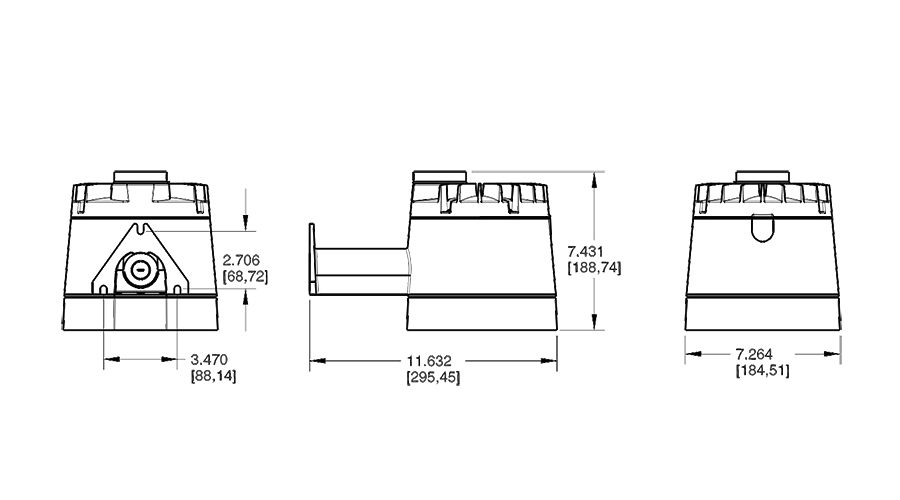

Dimensions
Weight: 8.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for dry and wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
Electrical
Driver
Constant Current, Class 2, 120V-277V, 50/60 Hz, 1100mA, 120V: 0.4A, 208V: 0.217A, 240V: 0.188A, 277V: 0.17A
THD
6.7% at 120V, 9% at 277V
Power Factor
99.7% at 120V, 89.1% at 277V
5-Pin Receptacle
ANSI C136.41 5-pin receptacle, compatible with wireless control systems
Surge Protection
4 kV Line-Line, 6 kV Line-Earth
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 175 HPS
Construction
IES Classification
The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Housing
Precision die-cast aluminum housing and arm
Mounting
Mounts on wall or existing arm/pole YARM24 (1 5/8" diameter pipe)
Reflector
High-reflectance white paint
Lens
Flat polycarbonate lens
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Optical
BUG Rating
B2 U3 G2
Other
Patents
The design of YBLED26 is protected by patents pending in US, Canada, China, Taiwan and Mexico
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
