HID post top lamps reimagined in LED.

Reduce maintenance and energy costs with a simple upgrade.


Versatile, low-cost upgrades for outdated metal halide and high-pressure sodium.

LED post tops were designed to replace up to 600W lamps in post top, low bay, bollard and high bay applications. Available in both Medium (E26) and Mogul (EX39) bases, these lamps also come in various color temperatures to maximize versatility.






The power of detection.

The tops of these lamps have an AUX port for integrating individual, lamp-level sensor controls. RAB offers both MW (microwave) and PIR (passive infrared) sensors for use with post top LED lamps.





Omnidirectional light output.

All models have a 360° beam spread, making them versatile enough for universal installations* (base up, down or horizontal).

*Models 80W and higher can only be used for vertical (base up/base down) applications.










Small but mighty.

RAB blends design and reliability in these compact form factors in order to ensure they will fit and perform in many applications.







Staying cool is easy.

With automated thermal management, LED post top lamps will reduce their rated power to 70% if they exceed 110°F and to 50% if they exceed 120°F.

But wait, there's more.

Universal voltage models are ideal for commercial applications. Available from 50W metal halide replacements up to 600W with E26 and EX39 bases. For any retrofit application RAB has you covered.

Protected from the elements.

IP64 rating for complete protection against dust and low-pressure water jet ingress.

Accessories

SURGE PROTECTOR

SP10KV
Provide an additional level of protection from dangerous powerline
transients in industrial and commercial applications. 3-lead devices
protect line-neutral, line-ground, and neutral-ground in accordance
with IEEE/ANSI C62.41.2

STEP DOWN TRANSFORMER

XFMR200-480-277
Step down auto transformers are non-isolated, makin them compact
and lightweight compared to isolated transformers. Step down from 480V/347V with a maximum power of 150VA.

SENSORS

PIR-S

Passive infrared sensor with daylight photocell built in.

MW-S

Microwave sensor with daylight photocell built in.

SPIR-S

Passive infrared sensor (No daylight photocell)

DAYLIGHT-S

Daylight sensor

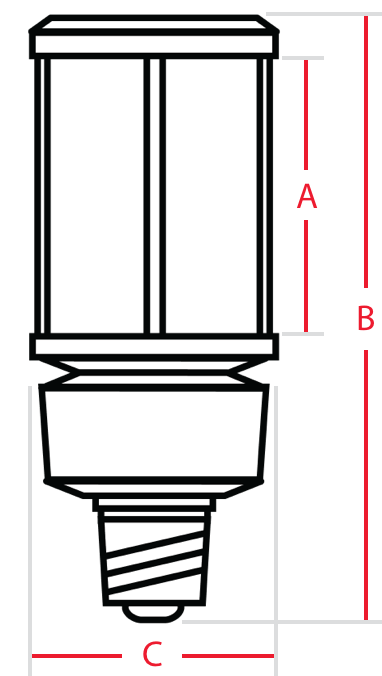

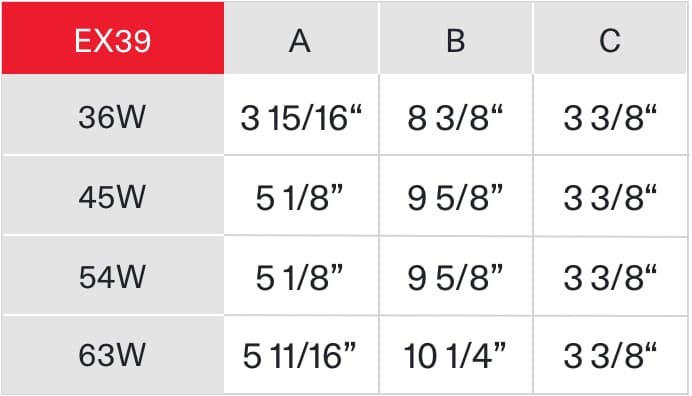

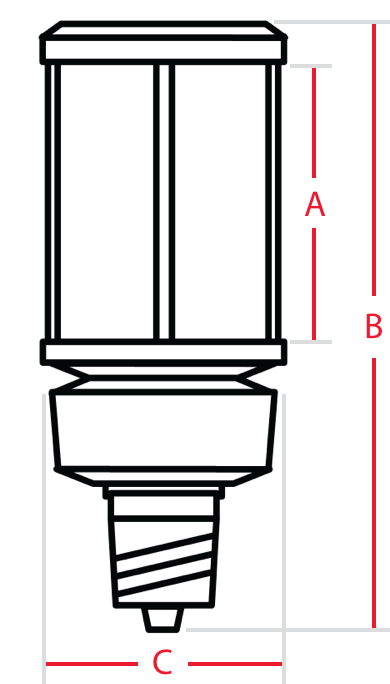

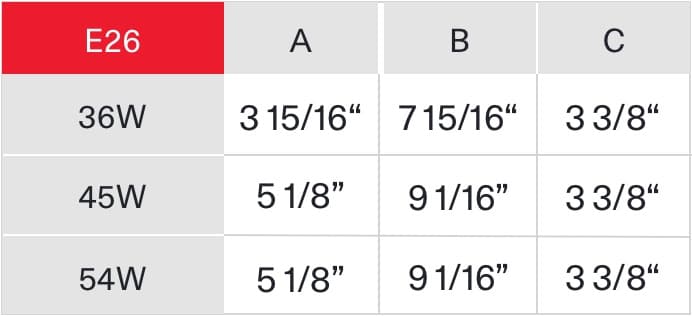

Dimensions
