HID wall pack lamps reimagined in LED.
Reduce maintenance and energy costs with a simple upgrade.
HID wall pack lamps reimagined in LED.
Reduce maintenance and energy costs with a simple upgrade.
Replace metal halide or high-presssure sodium lamps for wall packs, areas lights, and canopies.
LED wall pack replacement lamps are the ideal way to upgrade existing HID wall packs to the latest in LED technology. Simply bypass the existing ballast by cutting the wires and connecting the 120-277V line voltage directly to the sockets. No ballast or external driver is required.
Ballast bypass
Reduces maintenance costs.
Compact design
Allows the lamp to fit in most fixtures.
Installation orientation
Lamps can be installed base up, down or horizontal.
Heat dissipation
Thermal technology extends LED lifespan.
Water & dust resistant
Ideal for outdoor fixtures.
Enclosed fixture rated
May be used in enclosed and open fixtures.
Keeping it cool.
LED wall pack lamps can take the heat by using active cooling technology. Their design allows air to pass through and cool things down without the use of an on-board fan that can fail prematurely.
Direct light where
you need it.
Each LED wall pack lamp has a rotatable base that allows you to direct light where you need it. These lamps also come with a support stand in the box that protects against strain on the socket.
It can take the heat.
All wall pack lamps are designed to handle the heat of closed spaces, so they can be used with confidence in both open and enclosed fixtures.
But wait, there's more.
Universal voltage models are ideal for commercial applications. Available in 100W, 150W, 200W, and 250W Metal Halide replacements with E26 and EX39 bases. For any retrofit application RAB has you covered.
Protected from the elements.
IP64 rating for complete protection against dust and low-pressure water jet ingress.
Accessories

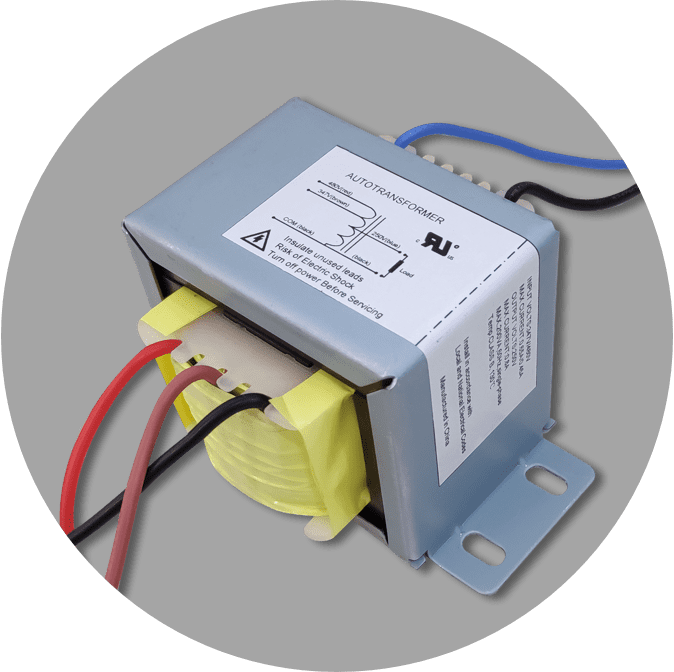

STEP DOWN TRANSFORMER
XFMR200-480-277
Step down auto transformers are non-isolated, makin them compact
and lightweight compared to isolated transformers. Step down from 480V/347V with a maximum power of 150VA.
5-year warranty.
The RAB 5-year, no-compromise warranty covers light output, color stability, driver performance, paint finish and labor. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Big rebates.
Wall pack lamps are available in DLC-listed models.
50,000-Hour LED lifespan.
At 10 hours daily use, LEDs are rated to last 13 years, dramatically reducing maintenance and re-lamping costs.

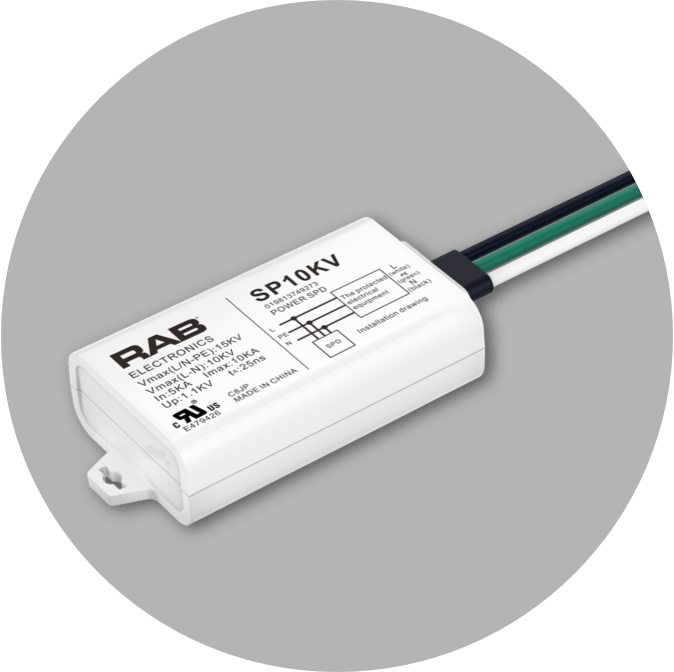

Surge protection.
Up to 10kV surge protection with accessory for regions with frequent lighting strikes.
480V capable.
With use of step down transformer accessory.
Ballast bypass.
Bypassing the ballast eliminates the maintenance costs associated with replacing a ballast when it fails.

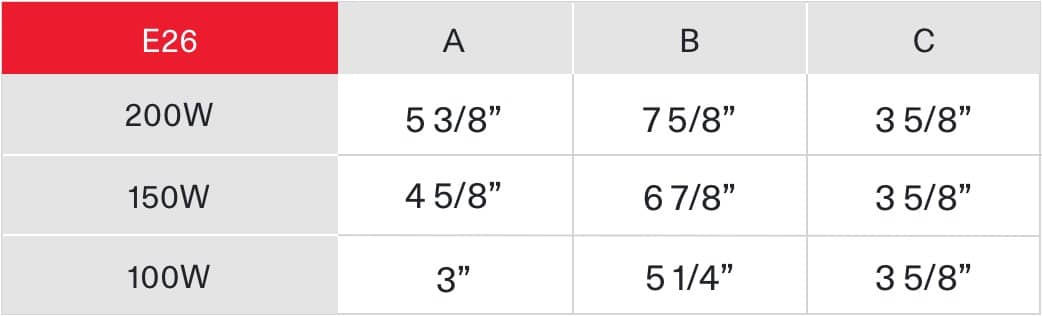

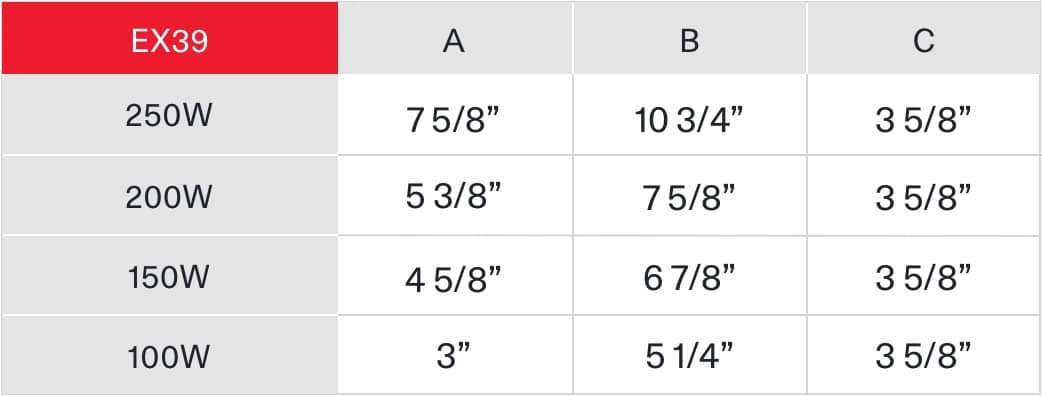

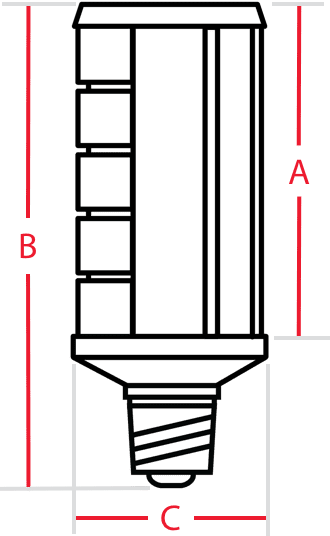

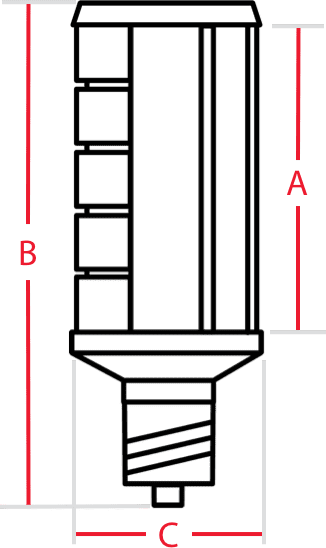

Dimensions
