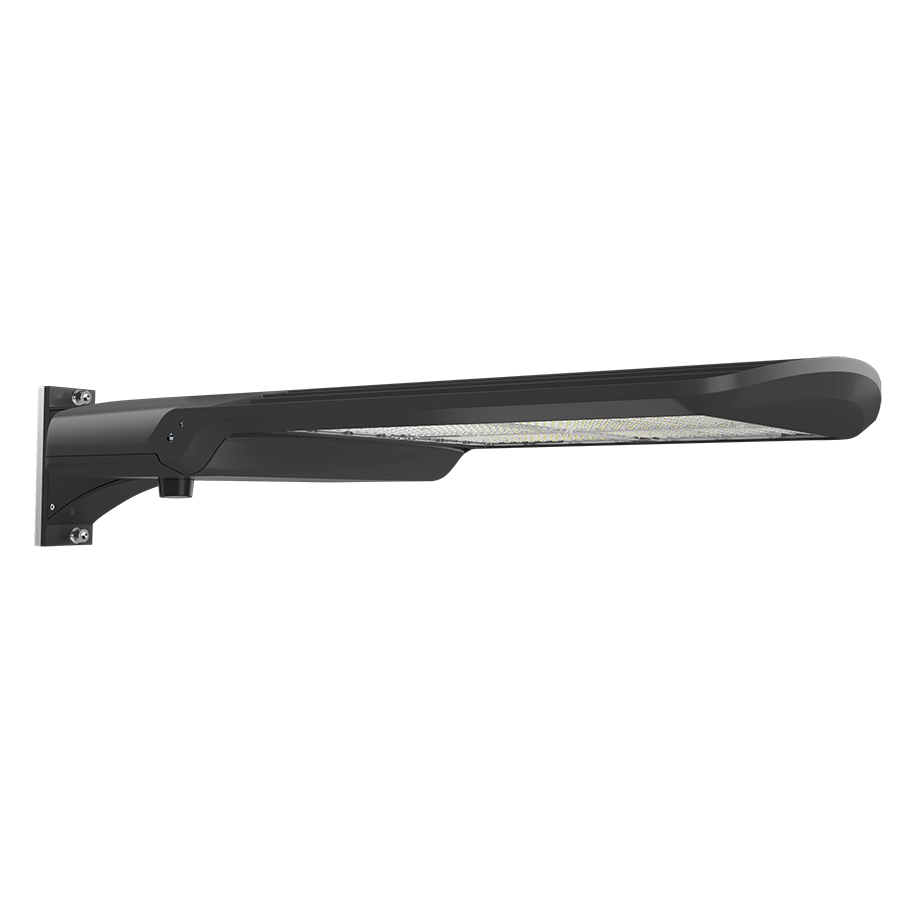

A17-3T480/480/MVS
A17-3T480/480/MVS
480W 3000/4000/5000K
- 0-10V Dimming, standard
- 100,000-hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 480/400/320W |
| Color Temp | 3000/4000/5000K |
| Lumens | 49,556-76,317 lm |
| Efficacy | 146-171.1 lm/W |
| Color Accuracy | 81 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | /480 |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 308.8-488.5W |
Dimensions
Weight: 24.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-NZK29V (Architectural Flood and Spot Luminaires)
DLC Product Code: S-S7FX51 (Outdoor Pole/Arm-Mounted Area and Roadway Luminaires)
DLC Product Code: S-NZK29V (Architectural Flood and Spot Luminaires)
DLC Product Code: S-S7FX51 (Outdoor Pole/Arm-Mounted Area and Roadway Luminaires)
Electrical
Driver
480W: Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.97A
400W: Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.88A
320W: Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.71A
400W: Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.88A
320W: Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.71A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.61% at 480V
Power Factor
96.7% at 480V
Surge Protection
6kV
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
IES Classification
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Lens
Polycarbonate lens
Housing
Die-cast aluminum housing, lens frame and mounting arm
Vibration Rating
3G vibration rating per ANSI C136.31
Effective Projected Area (Without Shield)
1 Fixture: 0.8 ft²
2 Fixtures at 90°: 1.18 ft²
2 Fixtures at 180°: 1.6 ft²
3 Fixtures at 90°: 1.98 ft²
4 Fixtures at 90°: 1.98 ft²
2 Fixtures at 90°: 1.18 ft²
2 Fixtures at 180°: 1.6 ft²
3 Fixtures at 90°: 1.98 ft²
4 Fixtures at 90°: 1.98 ft²
Effective Projected Area (With Shield)
1 Fixture: 0.84 ft²
2 Fixtures at 90°: 1.59 ft²
2 Fixtures at 180°: 1.68 ft²
3 Fixtures at 90°: 2.43 ft²
4 Fixtures at 90°: 2.43 ft²
2 Fixtures at 90°: 1.59 ft²
2 Fixtures at 180°: 1.68 ft²
3 Fixtures at 90°: 2.43 ft²
4 Fixtures at 90°: 2.43 ft²
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
\
Installation
Mounting
Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease. Round pole diameter must be >4" to mount fixtures at 90° orientation.
Optical
BUG Rating
B5 U0 G5
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Sensor Settings
Capacitance Load
400VA at 120VAC, 800VA at 230VAC, 1000VA at 277VAC
Operating Temperature
-20°C to +60°C (-4°F to +140°F)
Relay
Zero-cross relay
Maximum Mounting Height
49.2 ft (15M)
Customizable Detection Area
10, 50, 75 or 100%
Time Delay
5s, 30s, 1min, 5min, 10min, 20min, 30min
Cut Off Period
0s, 10s, 1min, 5min, 10min, 30min, 1hr, Bi-Level
Cut-Off Dimming level
10, 20, 30, 50%
Cut-Off Power
Less than 1W
Daylight Threshold
About .2-5 fc for disabled
Sensor Principle
High Frequency
Microwave Frequency
5.8GHz +/- 75MHz
Microwave Power
<0.2mW
Max Detection Range
26 ft diameter at 16 ft mounting height
Detection Angle
About 30 to 150 degrees
Remote Control Accessory
Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.
