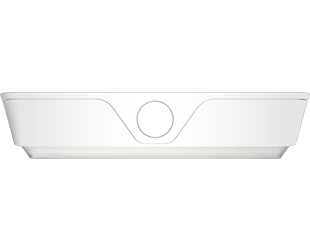

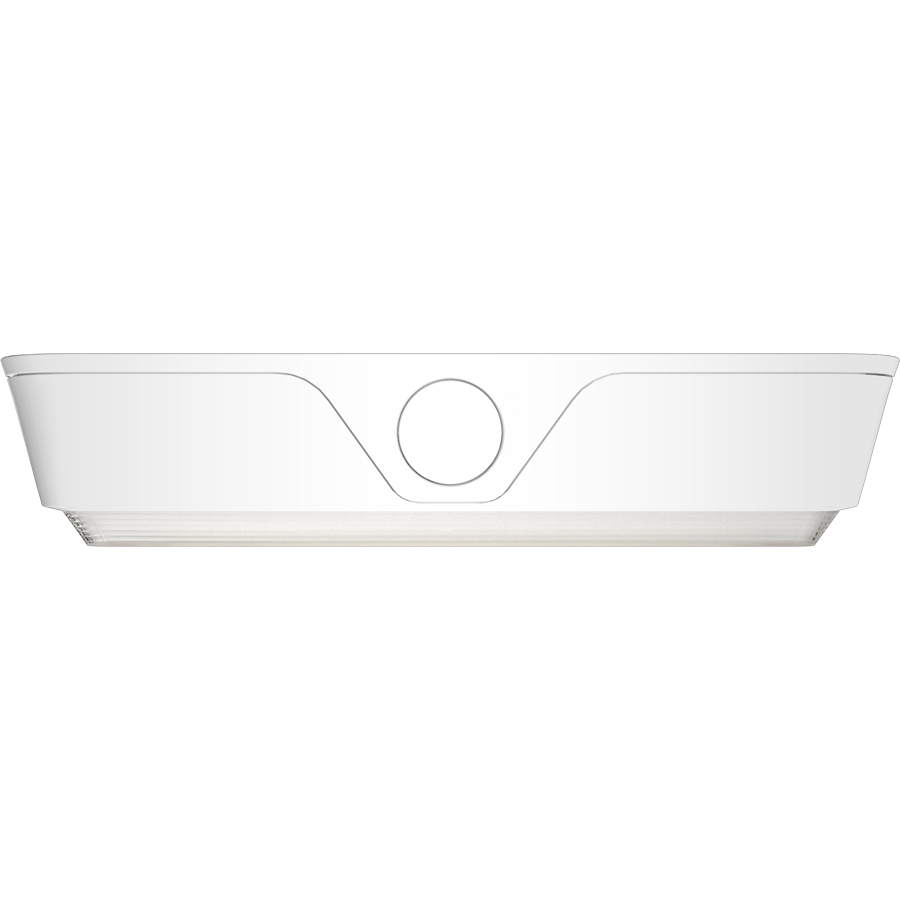

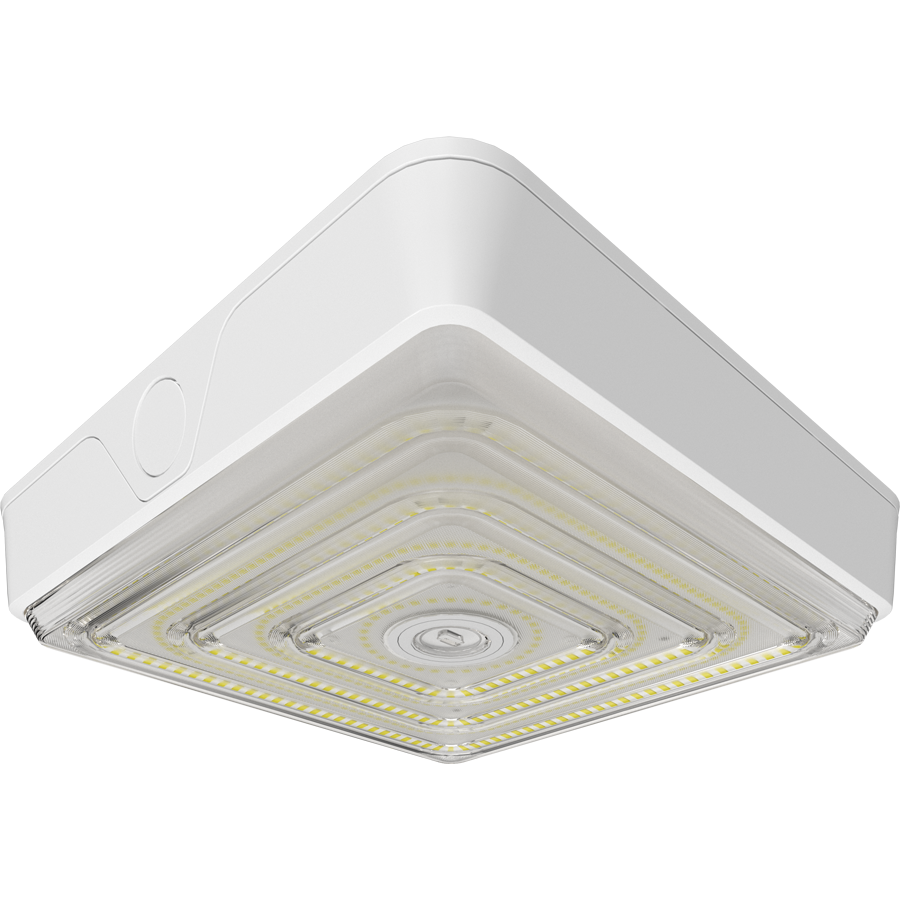

VAN75W
75W 3000K/4000K/5000K
- 100,000-Hour LED lifespan
- DLC Premium listed
- 0-10V Dimming
- IP66 Rated & IK08 Protection
- 10-Year, combined warranty
Performance
| Watts | 75/60/40W |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 5416-11247 lm |
| Efficacy | 129.6-162.1 lm/W |
| Color Accuracy | 83-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.64A/0.49A/0.33A |
| 208V | 0.37A/0.28A/0.19A |
| 240V | 0.32A/0.25A/0.16A |
| 277V | 0.28A/0.22A/0.15A |
| Input Watts | 37.5-77W |
Dimensions
Weight: 6.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
75/60W/40W (factory default: 75W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
Optics Field-Adjustable Garage/Canopy
75/60W/40W (factory default: 75W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
Optics Field-Adjustable Garage/Canopy
Performance
Product Type
Canopy Light
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
LED Characteristics
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Lens
Polycarbonate lens distributes light evenly and smoothly for general lighting applications
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 122°F (50°C)
Shape
Square
Housing
Precision die-cast aluminum housing and door frame
IK Rating
IK08 Protected against 5 joules of impact. Equivalent to the impact of a 3.75 lbs. (1.7kg) mass dropped from 11.8" (300mm) above the impacted surface.
Finish
Formulated for high durability and long-lasting color
Gaskets
Ethylene Propylene Diene Monomer (EPDM)
Electrical
Driver
Constant Current, Class 1, Non-Isolated, 120-277V 50/60 Hz;
75W: 120V: 0.64A, 208V: 0.37A, 240V: 0.32A, 277V: 0.28A
60W: 120V: 0.49A, 208V: 028A, 240V: 0.25A, 277V: 0.22A
40W: 120V: 0.33A, 208V: 0.19A, 240V: 0.16A, 277V: 0.15A
75W: 120V: 0.64A, 208V: 0.37A, 240V: 0.32A, 277V: 0.28A
60W: 120V: 0.49A, 208V: 028A, 240V: 0.25A, 277V: 0.22A
40W: 120V: 0.33A, 208V: 0.19A, 240V: 0.16A, 277V: 0.15A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Aux Power Supply
Yes
Dim to Off
Yes
Surge Protection
6 kV
Control Ready
Integrated sensor port allows for simple, quick sensor attachment without
the need for fixture modification or additional materials.
Installation
Mounting
Retrofit mounting plates for ceiling mounting
Other
10-Year Combination Warranty
The RAB 10-year combination warranty provides 5 years of no-compromise coverage and then a second 5 years of limited coverage. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
