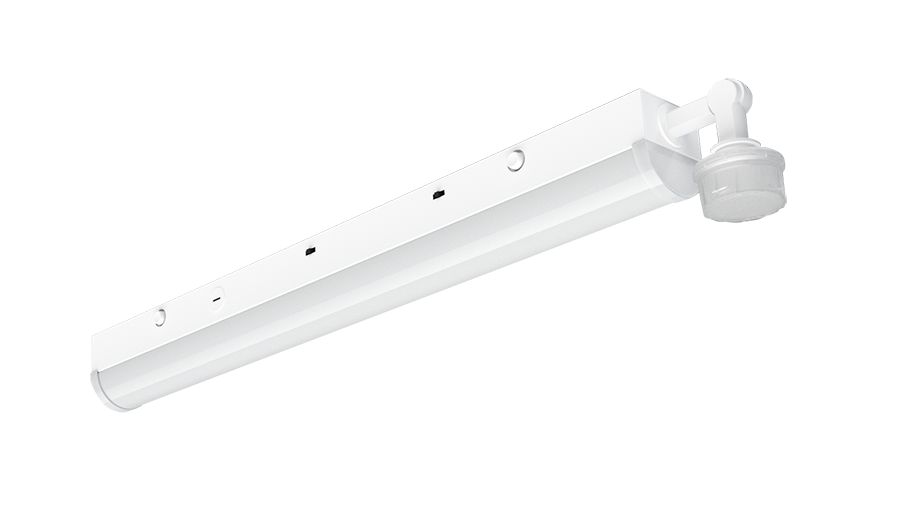

SR2/LCBS/MVS/E

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

SR2/LCBS/MVS/E

50,000-Hour LED lifespan

120-277V standard

0-10V dimming, standard

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	4/7/11/15/19W
Color Temp	3500/4000/5000/5700/6500K
Lumens	548-2883 lm
Efficacy	118.4-143.8 lm/W
Color Accuracy	83-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.04A/0.06A/0.09A/0.13A/0.17A
208V	0.02A/0.04A/0.05A/0.07A/0.10A
240V	0.02A/0.03A/0.05A/0.06A/0.08A
277V	0.03A/0.04A/0.05A/0.06A/0.07A
Input Watts	4.6-20.1W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.8 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
19/15/11/7/4W (factory default 19W)
Color temperature selectable by 3500/4000/5000/5700/6500K (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-44HZ3Z(Direct Linear Ambient Luminaires)
DLC Product Code: S-4KW6HD (Stairwell and Passageway Luminaires)

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Electrical

Driver

Constant Current, Class II, 120-277V, 50/60 Hz:
19W: 120V: 0.18A, 208V: 0.11A, 240V: 0.09A, 277V: 0.08A
15W: 120V: 0.13A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
11W: 120V: 0.09A, 208V: 0.05A, 240V: 0.05A, 277V: 0.04A
7W: 120V: 0.06A, 208V: 0.03A, 240V: 0.03A, 277V: 0.03A
4W: 120V: 0.03A, 208V: 0.02A, 240V: 0.02A, 277V: 0.02A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Aux Power Supply

Yes

Dim to Off

Yes

Surge Protection

L-N 1KV, L/N-G 2KV

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Battery Backup Light Loss Factor

19W: 22.20%
15W: 30.60%
11W: 43.10%
7W: 67.50%
4W: 116.70%

Construction

Cold Weather Starting

The minimum starting temperature is 0°C (32°F)

Maximum Ambient Temperature w/Battery Backup

Suitable for use in up to 50°C (122°F)

Lens

Polycarbonate lens

Housing

Galvanized steel (painting)

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT).

Sensor Settings

Remote Control Accessory

Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.

Sensor Sensitivity

Low/Medium/High

Occupancy Timeout

1 minute to 240 minutes

Inside Occupancy Mode

Set vacant dim level from off and any dim level

Daylight Threshold

150lux to 1500lux

Sensor Warranty

5-year sensor warranty

Mounting Height

Max 39.37ft.(12m)

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Accessories

Suspended Mounting Kit: SR VHOOK KIT
Surface Mount Kit: SR JOIN KIT

Lightcloud

Lightcloud Blue Sensor Installed

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Learn more at www.lightcloud.com.
