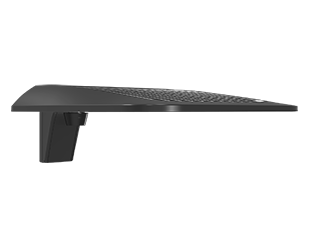

A17-4T100/480
A17-4T100/480
100W 3000/4000/5000K
- 0-10V Dimming, standard
- 100,000-hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 100/80/60W |
| Color Temp | 3000/4000/5000K |
| Lumens | 9,210-15,207 lm |
| Efficacy | 140.2-162.6 lm/W |
| Color Accuracy | 81 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | /480 |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 59.7-100.1W |
Dimensions
Weight: 8.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
100W: Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.22A
80W: Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.18A
60W: Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.12A
80W: Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.18A
60W: Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.12A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
148.2% at 480V
Power Factor
99.8% at 480V
Surge Protection
6 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
BUG Rating
B3 U0 G3
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Polycarbonate lens
Housing
Die-cast aluminum housing, lens frame and mounting arm
Vibration Rating
3G vibration rating per ANSI C136.31
Effective Projected Area (Without Shield)
1 Fixture: 0.60 ft²
2 Fixtures at 90°: 0.86 ft²
2 Fixtures at 180°: 1.21 ft²
3 Fixtures at 90°: 1.47 ft²
4 Fixtures at 90°: 1.47 ft²
2 Fixtures at 90°: 0.86 ft²
2 Fixtures at 180°: 1.21 ft²
3 Fixtures at 90°: 1.47 ft²
4 Fixtures at 90°: 1.47 ft²
Effective Projected Area (With Shield)
1 Fixture: 0.64 ft²
2 Fixtures at 90°: 1.14 ft²
2 Fixtures at 180°: 1.28 ft²
3 Fixtures at 90°: 1.8 ft²
4 Fixtures at 90°: 1.8 ft²
2 Fixtures at 90°: 1.14 ft²
2 Fixtures at 180°: 1.28 ft²
3 Fixtures at 90°: 1.8 ft²
4 Fixtures at 90°: 1.8 ft²
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole adapter plate included as a standard. Easy slide and lock to mount fixture with ease. Round pole diameter must be >4" to mount fixtures at 90° orientation.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
