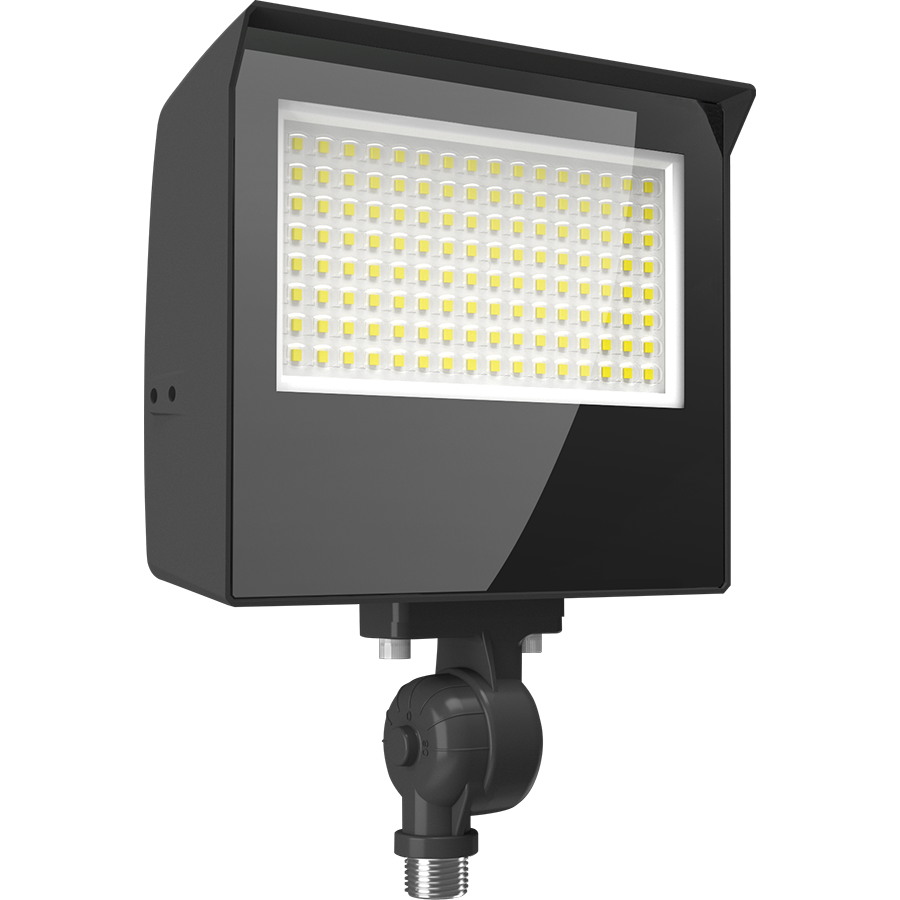

X22-60
X22-60
60W 3000/4000/5000K
- DLC Premium listed
- IP65 Rated
- 100,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 60/50/40/30W |
| Color Temp | 3000/4000/5000K |
| Lumens | 4,405-9,353 lm |
| Efficacy | 124.7-168.6 lm/W |
| Color Accuracy | 81-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 0.50A |
| 208V | 0.29A |
| 240V | 0.26A |
| 277V | 0.23A |
| Input Watts | 31.2-62.1W |
Dimensions
Weight: 3.6 lbs
Technical Specifications
Field Adjustability
Optical Field Adjustability
90°, 75° and 55°
Field Adjustable
Field Adjustable Light Output:
60W/50W/40W/30W (factory default 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
60W/50W/40W/30W (factory default 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
60W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.50A, 208V: 0.29A, 240V: 0.26A, 277V: 0.23A
50W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.40A, 208V: 0.24A, 240V: 0.21A, 277V: 0.19A
40W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.32A, 208V: 0.20A, 240V: 0.17A, 277V: 0.16A
30W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.24A, 208V: 0.16A, 240V: 0.14A, 277V: 0.13A
120V: 0.50A, 208V: 0.29A, 240V: 0.26A, 277V: 0.23A
50W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.40A, 208V: 0.24A, 240V: 0.21A, 277V: 0.19A
40W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.32A, 208V: 0.20A, 240V: 0.17A, 277V: 0.16A
30W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.24A, 208V: 0.16A, 240V: 0.14A, 277V: 0.13A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
11.93% at 120V, 7.39% at 277V
Power Factor
98.8% at 120V, 94.1% at 277V
Surge Protection
L/N-PE: 6 kV, L-N: 6 kV
Photocell
Integrated photocell included with on/off switch
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Consistency
3000K & 5000K: 5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
4000K: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
4000K: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Performance Data
Construction
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Maximum Ambient Temperature
Suitable for use in up to 122°F (50°C)
Housing
Die-cast aluminum
Lens
Tempered glass
Effective Projected Area (EPA)
1 Fixture: 0.205 ft²
2 Fixtures at 90°: 0.427 ft²
2 Fixtures at 180°: 0.409 ft²
3 Fixtures at 90°: 0.632 ft²
4 Fixtures at 90°: 0.632 ft²
2 Fixtures at 90°: 0.427 ft²
2 Fixtures at 180°: 0.409 ft²
3 Fixtures at 90°: 0.632 ft²
4 Fixtures at 90°: 0.632 ft²
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting

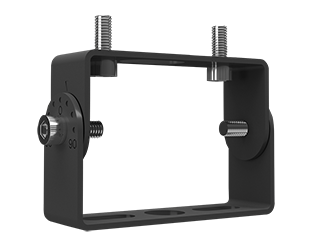

Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments. Trunnion kit is included.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
