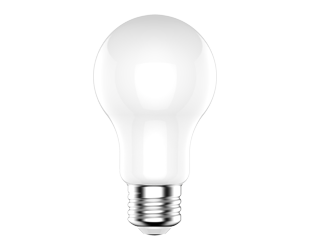

A19-10-E26-930-F-F
A19-10-E26-930-F-F
- Replacement for conventional decorative lamps
- Filament LED construction gives a unique traditional look and feel for decorative and ambient applications
- Produces rich and vibrant colors, >90CRI
- Rated for use in enclosed and open fixtures in dry and damp locations
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
- Title 20 Compliant, ENERGY STAR Compliant, UL Listed
- Smooth uniform dimming down to 10% (See Dimmer Compatibility List)
Performance
| Watts | 10W |
| Color Temp | 3000K |
| Lumens | 1,100 lm |
| Efficacy | 110 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 15,000 Hours |
| Type | Constant Current |
| 120V | 0.09A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 10W |
Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
A-Line
Input Wattage
10W
Lumens
1,100lm
Efficacy
110lm/W
L70 Lifespan
15,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
75W Incandescent
Compliance
Enclosed Fixtures
Suitable for use in enclosed fixtures
LED Characteristics
Color Temperature
3000K
Color Accuracy (CRI)
>90 CRI
Beam Angle
360°
Electrical
Power Factor
>0.7
Dimmable
Yes
Flicker
<30%
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Input Voltage
120V
Operating Frequency
50/60Hz
Construction
Shape
A19
Endcap Material
Nickel-Aluminum
Enclosure Material
Glass
Installation
Base Type
E26 Edison
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
