WFRL6R149FA120WB
WFRL6R149FA120WB
- 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
- Super slim Edge-lit fixture for thin fixture depth
- No recessed housing or J-box required
- New construction or retrofit applications
- UL wet location rated
- Smooth diffused uniform light distribution
- Dimmable down to 5% on compatible dimmers
- Spring loaded retention clips
- Robust, die cast aluminum construction
- IC and airtight rated
- 5-Year, No-Compromise Warranty
Performance
| Watts | 14W |
| Color Temp | 2700K/3000K/3500K/4000K/5000K |
| Lumens | 1,150 lm |
| Efficacy | 82.1 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.13A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 7W |
Dimensions
Weight: 1.1 lbs
Technical Specifications
Performance
Description

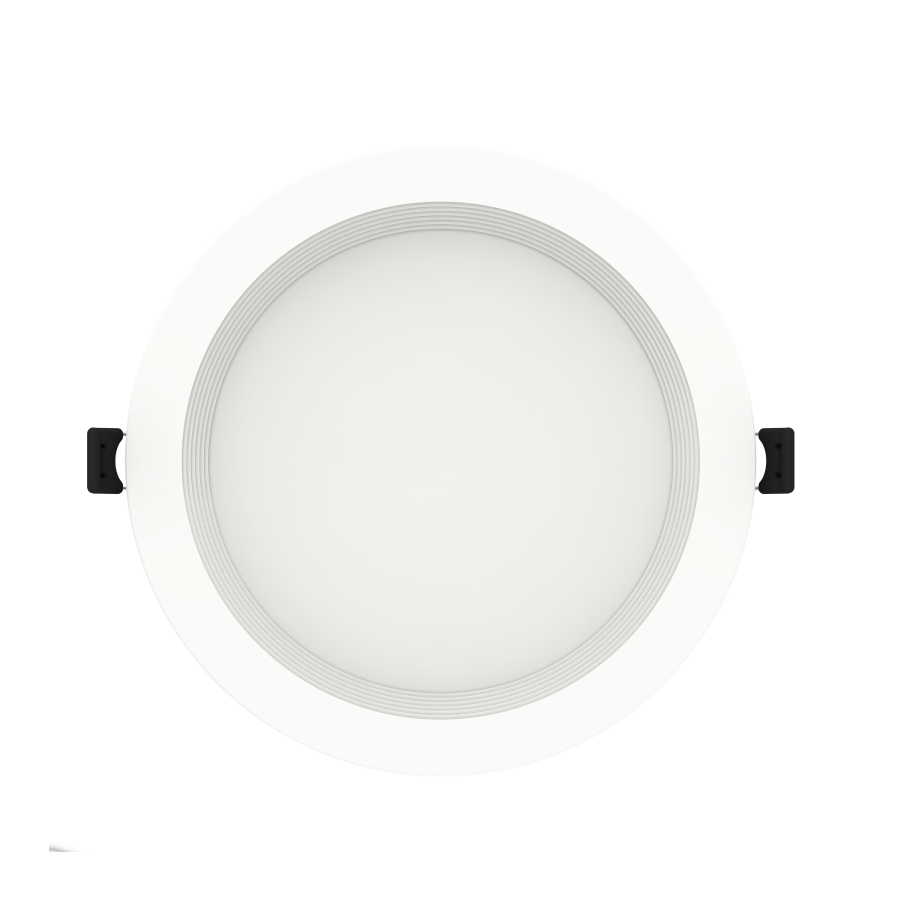

This 6-inch canless wafer downlight has an ultra low-profile design and 5 field adjustable color temperatures making them a flexible solution for both new construction and retrofit applications. The remote driver box has quick connectors, knockouts, and plenty of space for daisy chain wiring or adding an emergency backup unit.
Product Type
Recessed Downlights
Input Wattage
14W
Lumens
1,150lm
Efficacy
82.1lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Compliance
UL Listed
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Energy Star ID
2389089
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
Dimming Driver
TRIAC compatible dimmer with dimming as low as 10%.
THD
≤20%
Power Factor
≥0.9
Flicker
<5%
Input Voltage
120V
Operating Frequency
60Hz
Construction
Material
Metal and Plastic
Trim Style
Baffle
Shape
Round
Mounting
Recessed ceiling
Operating Temperature
-20°C (-4°F) to 40°C (104°F)
Size
6"
LED Characteristics
R9 Value
High color performance with R9 greater than or equal to 50
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
