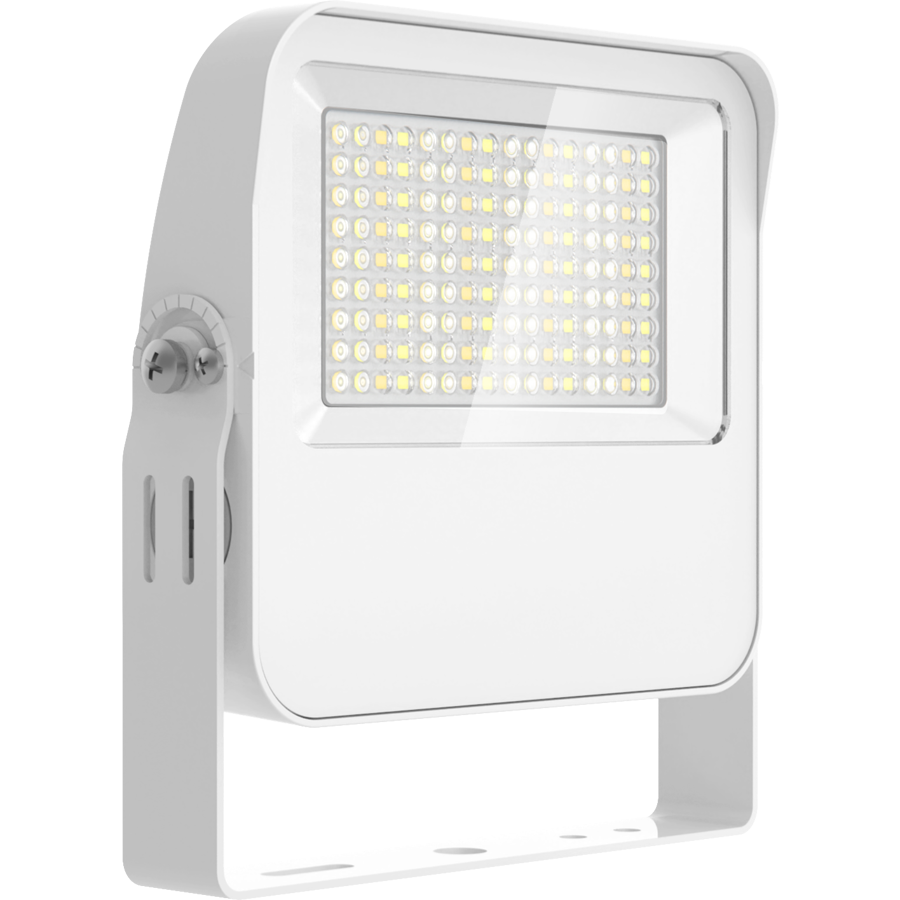

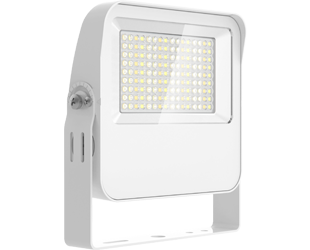

XL22-35W
35W 3000K/4000K/5000K
- IP66 Rated
- 100,000-Hour LED lifespan
- 3000/4000/5000K CCT Adjustable
- 55/75/90° Selectable Beam Angle
- 5-Year, limited warranty
Performance
| Watts | 35/30/25/20W |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 2889-5345 lm |
| Efficacy | 128-172.9 lm/W |
| Color Accuracy | 80-83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 0.31A |
| 208V | 0.18A |
| 240V | 0.16A |
| 277V | 0.13A |
| Input Watts | 20.6-36.5W |

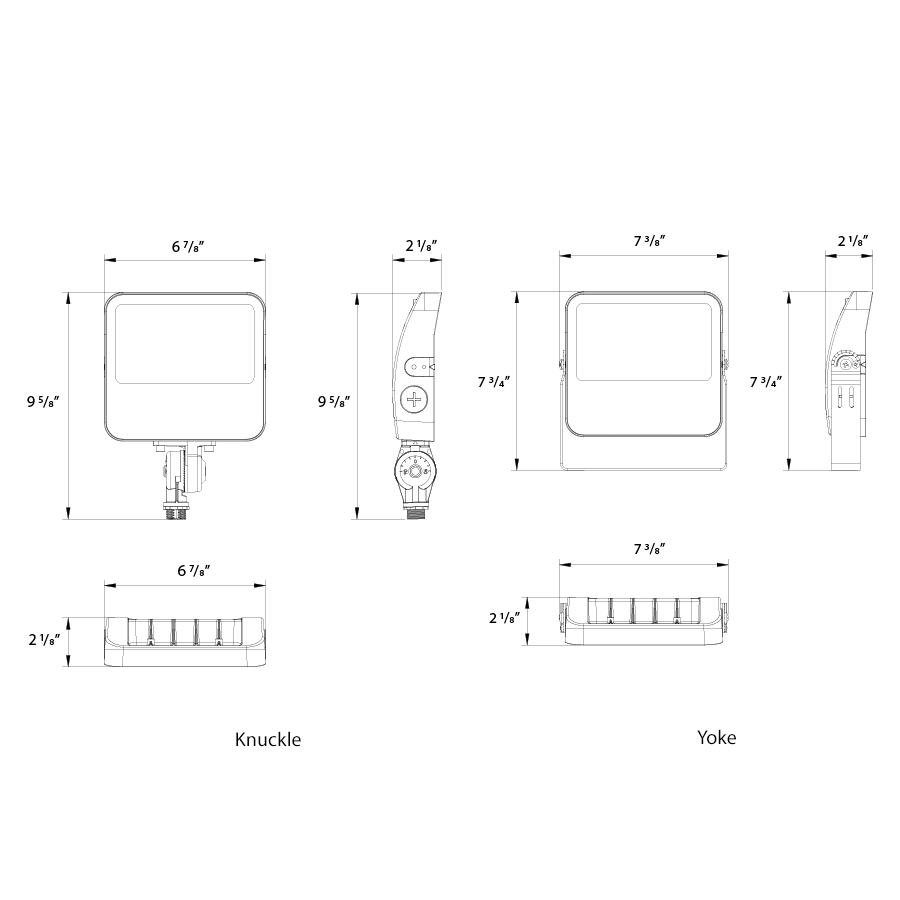

Dimensions
Weight: 3.2 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
35/30/25/20W (factory default 35W)
Color Temperature Adjustable:
3000K, 4000K and 5000K (factory default 4000K)
Optical Field Adjustable:7H x 6V/6H x 6V/5Hx5V (factory default 7Hx6V
On/Off Photocell (factory default "On")
35/30/25/20W (factory default 35W)
Color Temperature Adjustable:
3000K, 4000K and 5000K (factory default 4000K)
Optical Field Adjustable:7H x 6V/6H x 6V/5Hx5V (factory default 7Hx6V
On/Off Photocell (factory default "On")
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
Electrical
Driver
Constant Current, Class1, 120-277V, 50/60 Hz:
35W: 120V: 0.31A, 208V: 0.18A, 240V: 0.16A, 277V: 0.13A
30W: 120V: 0.26A , 208V: 0.16A, 240V: 0.14A, 277V: 0.11A
25W: 120V: 0.22A, 208V: 0.14A, 240V: 0.12A, 277V: 0.10A
20W: 120V: 0.17A, 208V: 0.12A, 240V: 0.10A, 277V: 0.08A
35W: 120V: 0.31A, 208V: 0.18A, 240V: 0.16A, 277V: 0.13A
30W: 120V: 0.26A , 208V: 0.16A, 240V: 0.14A, 277V: 0.11A
25W: 120V: 0.22A, 208V: 0.14A, 240V: 0.12A, 277V: 0.10A
20W: 120V: 0.17A, 208V: 0.12A, 240V: 0.10A, 277V: 0.08A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
9.12% at 120V, 12.13% at 277V
Power Factor
99.3% at 120V, 96.2% at 277V
Surge Protection
L-N: 4 kV
L/N-PE: 6 kV
L/N-PE: 6 kV
Aux Power Supply
Yes
Dim to Off
Yes
Photocell
Integrated photocell included with on/off switch
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Consistency
3000K & 5000K: 5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
4000K: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
4000K: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
IK Rating
IK06 Protected against 1 joules of impact. Equivalent to the impact of a 0.55 lbs. (.25kg) mass dropped from 15.8" (400mm) above the impacted surface.
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 122°F (50°C)
Housing
Die-cast aluminum
Lens
Polycarbonate lens
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting

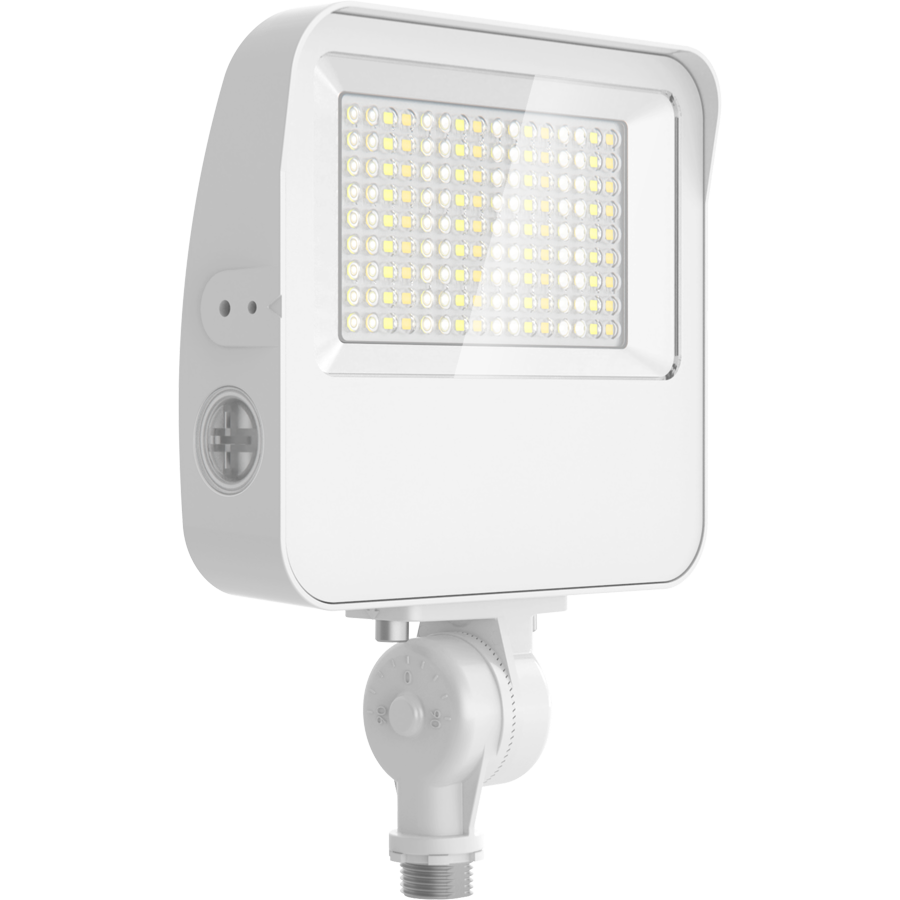

Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments. Yoke kit is included.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
