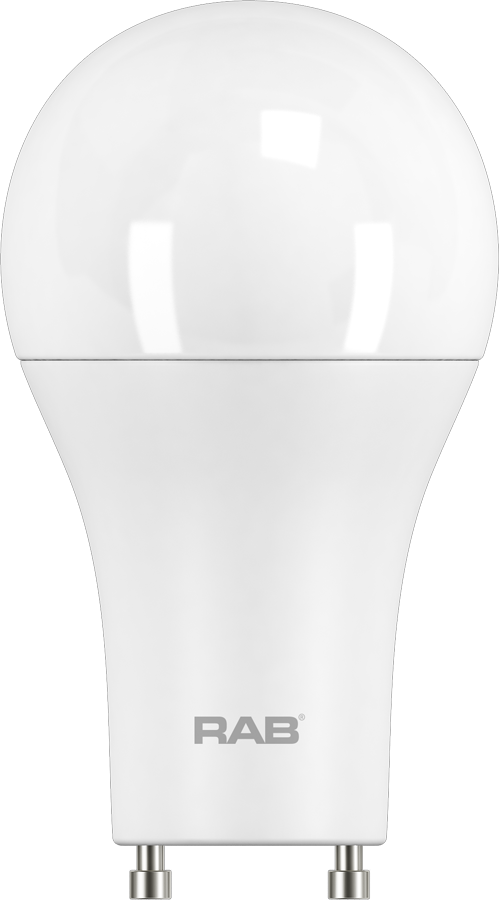

A19-16-GU24-827-DIM

Spec Sheet Photometrics Report Energy Star FCC Caution Spec Sheet

A19-16-GU24-827-DIM

Replacement for High-output Incandescent or lower wattage metal halide and high pressure sodium lamps

Rated for use in enclosed and open fixtures in dry or damp locations

Ideal for post top, bollards, and outdoor corridor lighting

Suitable for use in a base-up or base-down position

View Technical Specs

View Price & Availability

Performance

Watts	15W
Color Temp	2700K (Soft White)
Lumens	1,600 lm
Efficacy	103.2 lm/W
Color Accuracy	80 CRI
L70 Lifespan	15,000 Hours

Type
120V
208V
240V
277V
Input Watts	15.5W

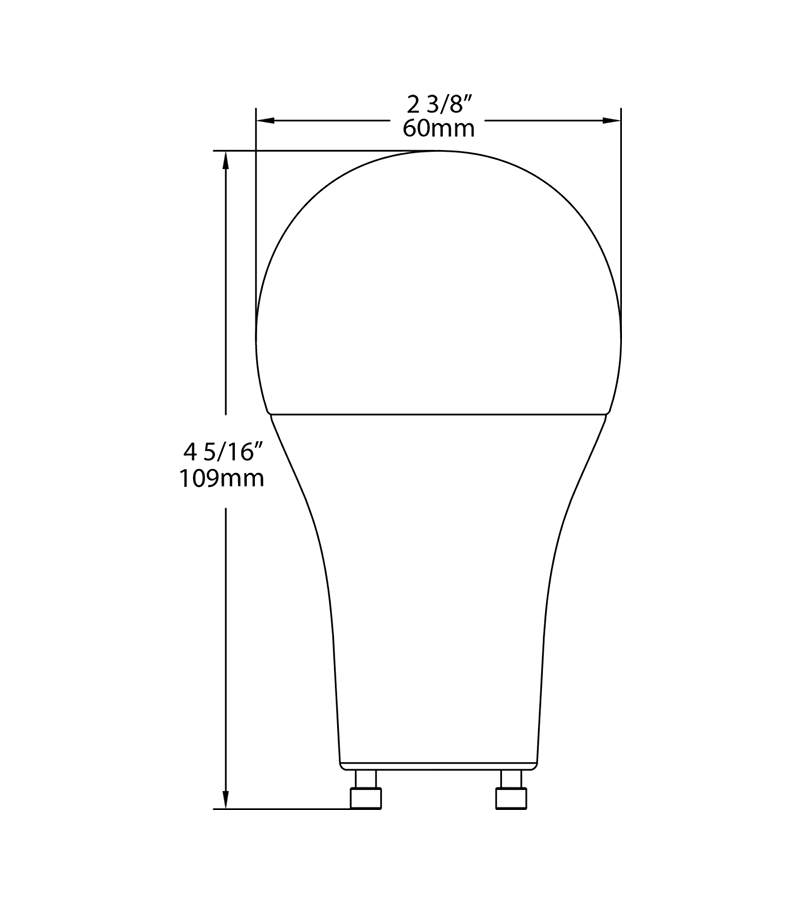

Dimensions

Weight: 0.3 lbs

Technical Specifications

Performance

Product Type

A-Line

Input Wattage

15.5W

Wattage Equivalency

100W Incandescent

Lumens

1,600lm

Efficacy

93lm/W

L70 Lifespan

15,000 Hours

Construction

Bulb Shape

A19

Base Type

GU24

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

2700K Soft White

Color Accuracy (CRI)

80 CRI

Electrical

Power Factor

≥0.7

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Dimmable

Yes, down to 10%

Input Voltage

120V

Operating Frequency

60 Hz

Optical

Beam Angle

230°

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Compliance

Energy Star Approved

This product is ENERGY STAR® Version 2.0 Certified

Energy Star ID

2329587

California Energy Commission (CEC) Status

Not Lawful for Sales in California
