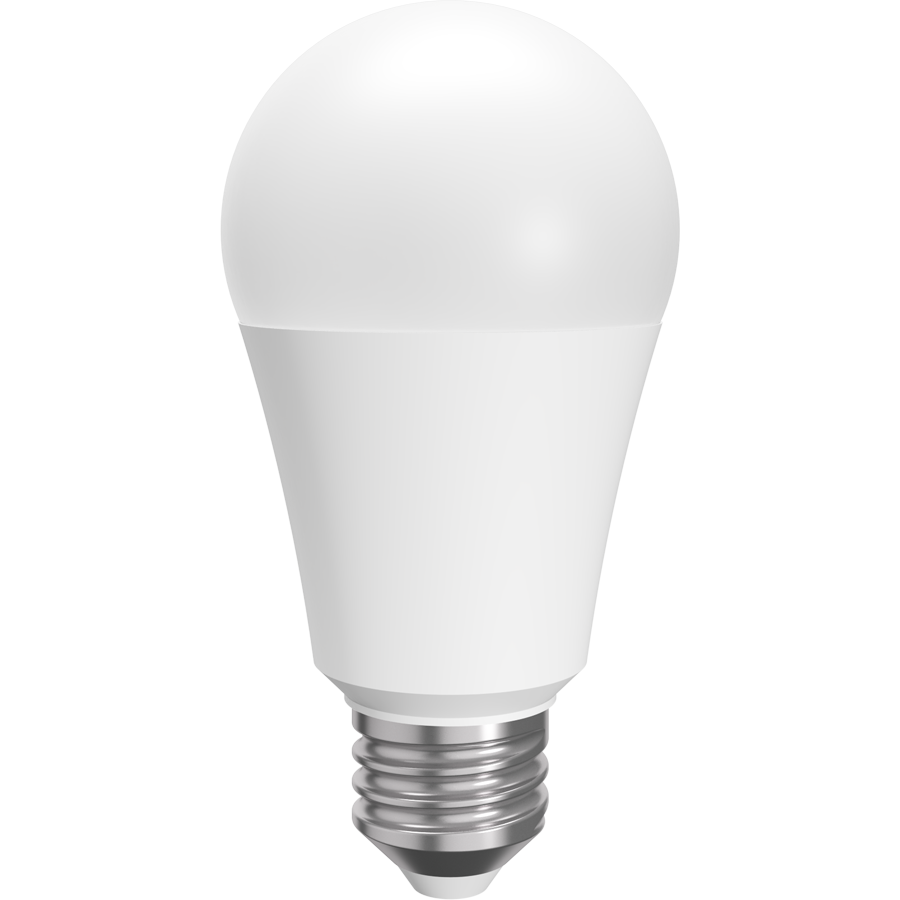

A19-5-E26-827-DIM
A19-5-E26-827-DIM
- Energy-efficient replacement for incandescent and halogen lamps
- Durable plastic construction reduces risk of breakage
- Rated for use in enclosed and open fixtures in dry or damp locations
- Frosted lens delivers smooth, diffuse light
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
Performance
| Watts | 5W |
| Color Temp | 2700K |
| Lumens | 450 lm |
| Efficacy | 82 |
| Color Accuracy | 80 CRI CRI |
| L70 Lifespan |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 5.5W |
Dimensions
Technical Specifications
Performance
Product Type
A-line, 80CRI Dimmable
Description
Classic A-line lamps that deliver the familiar incandescent look with smooth dimming and modern energy-saving performance.
Wattage Equivalency
40W Incandescent
Input Wattage
5.5W
Lumens (Nominal)
450lm
Efficacy
82lm/W
L70 Lifespan
15,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 50/60 Hz; 120V: 50mA
THD
<75%
Power Factor
0.7
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Flicker
_85%
Construction
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Shape
A19
Finish
White
Endcap Material
Nickel-plated aluminum
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Lens Finish
Frosted
LED Characteristics
Beam Angle
160°
Color Temperature
2700K
Color Accuracy (CRI)
≥80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Base Type
E26 Edison
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Energy Star Approved
No
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Certification Model Number
A30023(A19-5-E26-827-DIM)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
