A19-9-E26-950-DIM

Spec Sheet IES File Family Spec Sheet Spec Sheet EZ Layout

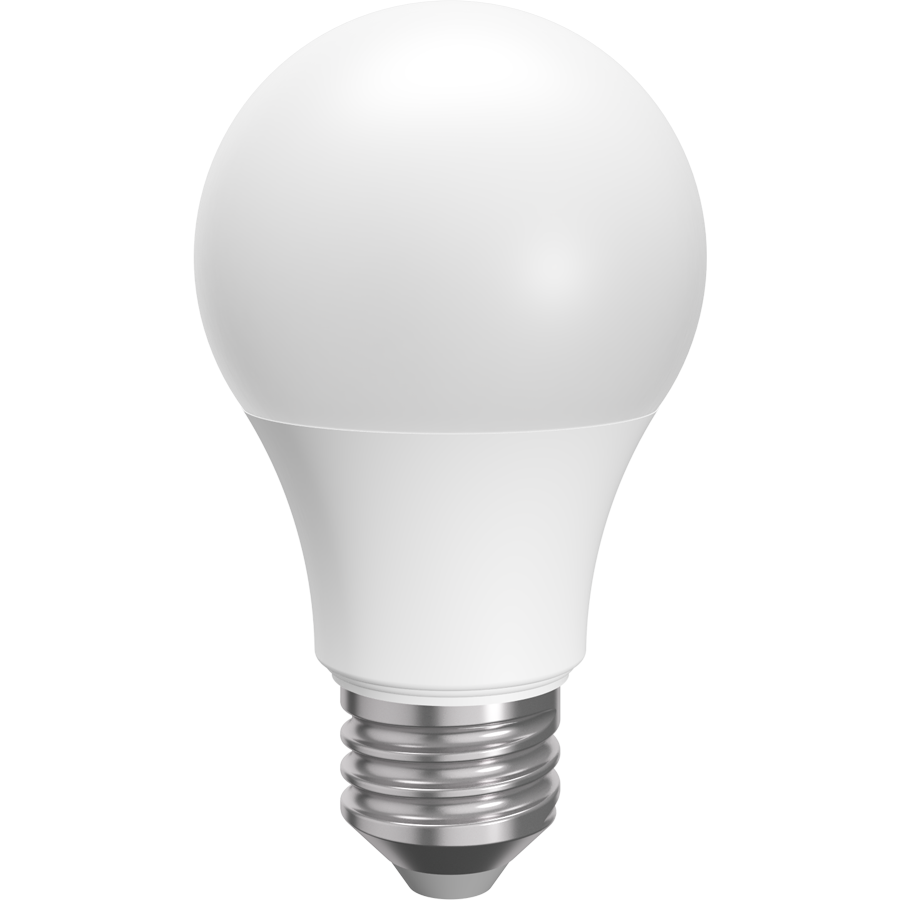

A19-9-E26-950-DIM

Energy-efficient replacement for incandescent and halogen lamps

Durable plastic construction reduces risk of breakage

Rated for use in enclosed and open fixtures in dry or damp locations

Frosted lens delivers smooth, diffuse light

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp
Lumens	800 lm
Efficacy	89
Color Accuracy	5000K CRI
L70 Lifespan

Type
120V
208V
240V
277V
Input Watts	9W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Performance

Product Type

A-line, 90CRI Dimmable Title 20 Compliant

Description

Exceptional color accuracy and smooth dimming come together in Title 20-compliant A-line LED lamps.

Wattage Equivalency

60W Incandescent

Input Wattage

Lumens (Nominal)

800lm

Efficacy

89lm/W

L70 Lifespan

15,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current 120V 50/60 Hz; 120V: 80mA

THD

<80%

Power Factor

0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Flicker

<30%

Construction

Operating Temperature Range

-4°F - 104°F (-20°C - 40°C)

Shape

A19

Finish

White

Endcap Material

Nickel-plated aluminum

Enclosure Material

Constructed from frosted, shatter-resistant polycarbonate

Lens Finish

Frosted

LED Characteristics

Beam Angle

220°

Color Temperature

5000K

Color Accuracy (CRI)

≥90

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Base Type

E26 Edison

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

Energy Star Approved

DLC Listed

Certification Model Number

A30048(A19-9-E26-950-DIM)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
