TOS/RGB

Flexible, wet location LED tape provides energy-efficient lighting for both indoor and outdoor applications.

Easy installation to most surfaces by using pre-attached 3M® double-sided tape

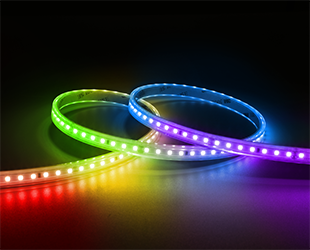

Create dynamic RGB light shows with customizable effects and color sequences. Requires Lightcloud Blue controller (sold separately)

60W & 96W Indoor or outdoor rated drivers available (sold separately)

50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	6.1 W/ftW
Color Temp	RGBW
Lumens	230lm/ft lm
Efficacy
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Voltage
120V
208V
240V
277V
Input Watts	6.1 W/ftW

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.0 lbs

Technical Specifications

Lightcloud

Factory Reset

See LCBLVD/RGB on rablighting.com

Performance

Product Type

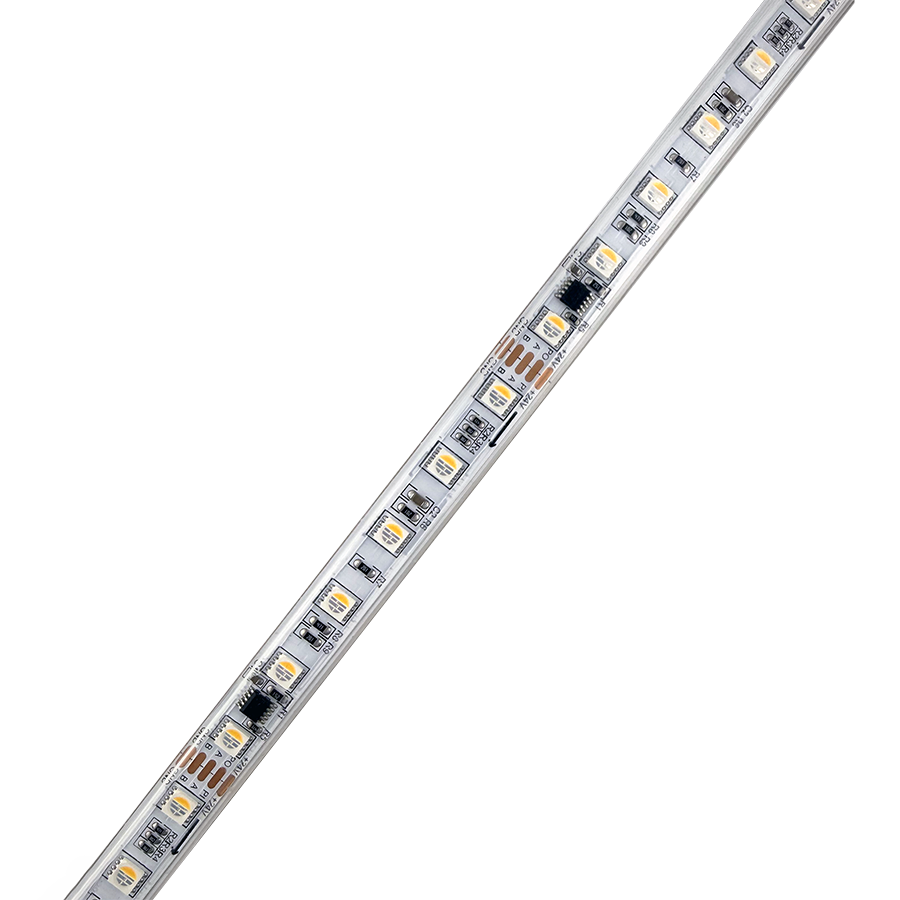

16 ft SMD tape RGBW - Wet rated

Description

FLEXTAPE is a bendable, outdoor LED tape that provides energy-efficient lighting for both indoor and outdoor applications.

Input Wattage

6.1W/ft

Lumens

R:28lm/ft
G:100lm/ft
B:22lm/ft
W:107lm/ft
Mix:250lm/ft

Lumens/Foot

230 lm/ft

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

LED Characteristics

Chip Density

18 LED/ft

Beam Angle

120°

Color Temperature

Default: 3000K
2200-3000K and 16+ million colors using Lightcloud Blue

Color Accuracy (CRI)

90 CRI

Color Changing

Color Changing-2559c

R9 Value

High color performance with R9 greater than 60

Color Consistency

<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED Segments per Reel

Pixel/Meter

10 pixels/m

LED/Pixel

6 LED/pixel

Field Cuttable Increment

Cuttable every 3.9"

Length Adjustments

Use the mobile app to adjust Minimum Segment Unit (MSU) and Maximum Segement Configuration (MSC) to ensure proper illumination. See the Lightcloud Blue Mobile App User Guide or contact RAB for more information.

Electrical

Dimmable

Yes, using Lightcloud Blue
This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

Input Voltage

DC24V

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Storage Temperature

-4°F (-20°C) to 140°F(60°C)

Installation

Mounting

Easy installation to most surfaces by using pre-attached 3M® double-sided tape

Construction

Reel Length

16 ft

Max Run Length

32 ft

Length

16.4 ft

Light Source

SMD 5050

Material Construction

Weather-reisistant, high-grade silicone cover with super-flexible bending .

Light Effect

Soft linear lighting performance

Spool Length

16.4 ft

Bendable

Top bend

Compliance

Listings

UL2108

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP Rating

IP67

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(1)

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

LCBLVD/RGB
Lightcloud Blue controller for RGBW tape light

Field Wiring Accessories

TOJ5
Tape Light Connector IP65 5-Pin PCB Width 12mm W/ 15cm Wire

TPF5
End Caps

TPFE5
Tape Light Wire Extender IP67 5-Pin Connectors w/ 8ft Wire

TPFS5
Tape Light Wire Splitter IP67 5-Pin + 2-Pin Connectors

Mounting Accessories

TAP15
15.5mm Wide Aluminum Channel Kit

TAP16TL
Trimless 16mm Wide Aluminium Profile

TSG
Silicone Glue

Compatible Drivers

TND-96
96W Indoor/Outdoor Driver ON/OFF

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
