Performance
Watts 10W
Color Temp 3000K
Lumens 837 lm
Efficacy 82.1
Color Accuracy 93 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.09A
208V
240V
277V
Input Watts 10.2W
Dimensions

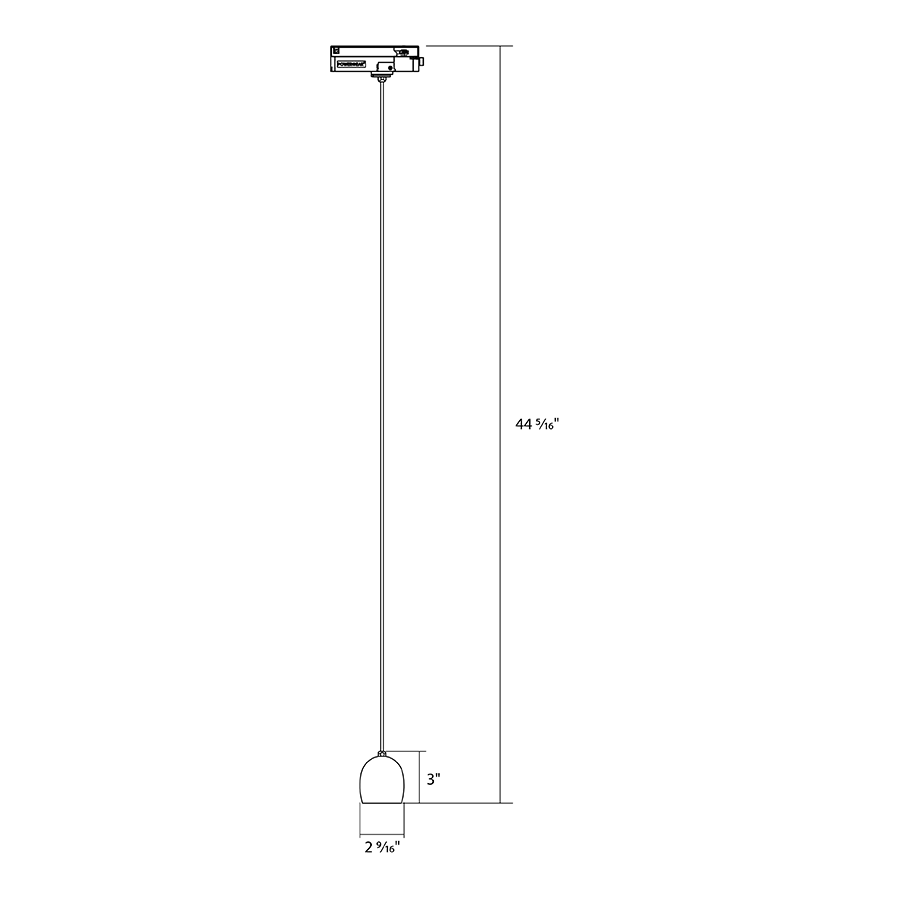

Link to Dimension Drawing

Weight: 0.7 lbs

Technical Specifications
Compliance
UL Listed
Suitable for dry locations
IP Rating
IP20
LED Characteristics
LEDs
Long-life, high-efficacy, COB (Chip on Board) LEDs
Color Temperature
3000K
Electrical
Driver
Constant Current, Class 2, 120V, 60 Hz, 120V: 0.10A
Dimming Driver
120V TRIAC Dimmers
Aux Power Supply
No
Dim to Off
No
Surge Protection
Ring Wave L-N:2.5 kV, LN-PE 2.5 kV
Emergency Characteristics
Cold Weather Starting w/Battery Backup
The minimum starting temperature is -4°F (-20°C)
Construction
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Aluminum
Reflector
Polycarbonate
Finish
Formulated for high durability and long-lasting color
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Installation
Mounting
H-Track Pendant Mount
Optical
Optics
36°
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
