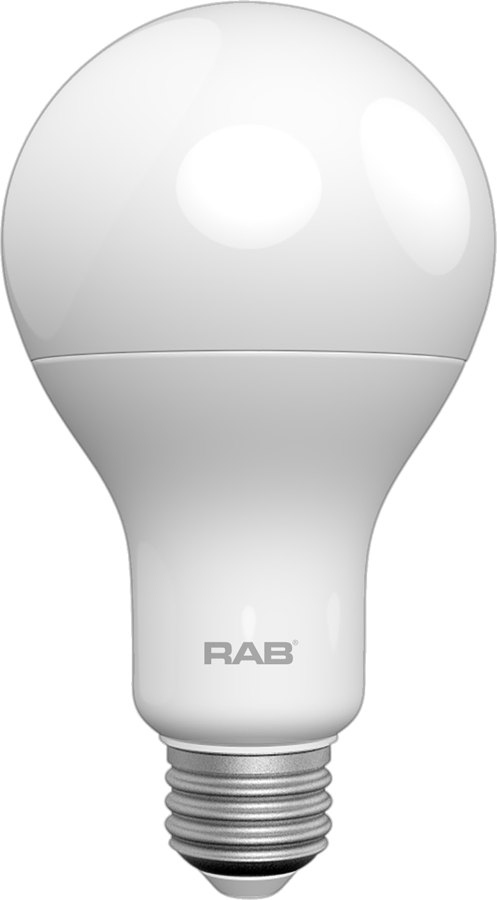

A21-17-E26-950-DIM

Spec Sheet Photometrics Report Energy Star FCC Caution Spec Sheet

A21-17-E26-950-DIM

Produces rich and vibrant colors >90CRI

Energy efficient replacement for incandescent and halogen lamps

Constructed from durable plastic which lowers risk of breakage

Rated for use in enclosed and open fixtures in dry or damp locations

Frosted lens produces smooth diffuse light

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

ENERGY STAR Compliant, Title 20 Compliant

Dimmable with common dimmer types (check compatibility list)

View Technical Specs

View Price & Availability

Performance

Watts	17W
Color Temp	5000K
Lumens	1,600 lm
Efficacy	94
Color Accuracy	90 CRI
L70 Lifespan	25,000 Hours

Input Voltage	120V
Power Factor	N/A
Flicker	N/A
THDi	N/A
R9	50

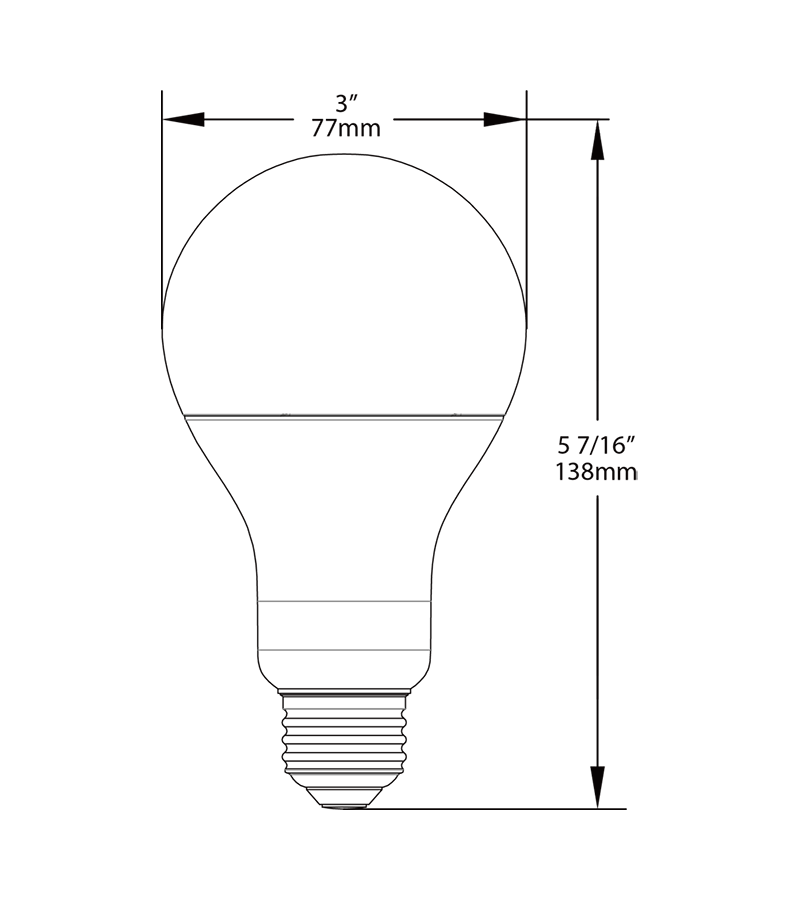

Dimensions

Weight: 0.3 lbs

Technical Specifications

Performance

Product Type

A-Line 90CRI Dimmable T20

Wattage Equivalency

100W Incandescent

Input Wattage

17W

Lumens

1,600lm

Efficacy

94lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Electrical

Power Factor

>0.9

Dimmable

Yes

Dimming Type

See Dimmer Compatibility List

Input Voltage

120V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

140mA

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Optical

Beam Angle

230°

LED Characteristics

Color Temperature

5000K

Color Accuracy (CRI)

≥90

R9 Value

High color performance with R9 no less than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Construction

Base Type

E26 Edison

Finish

White

Bulb Shape

A21

Endcap Material

Nickel-Aluminum

Enclosure Material

Plastic

Lens Finish

Frosted

Compliance

Listings

UL Listed

Environment

Suitable for use in dry and damp environments

Fixture Rating

Suitable for use in enclosed fixtures

Energy Star Approved

This product is ENERGY STAR® Version 2.2 Certified.

Certification Model Number

A21-17-E26-950-DIM

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Not Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of four (4) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Note

All values are typical (tolerance +/- 10%)
