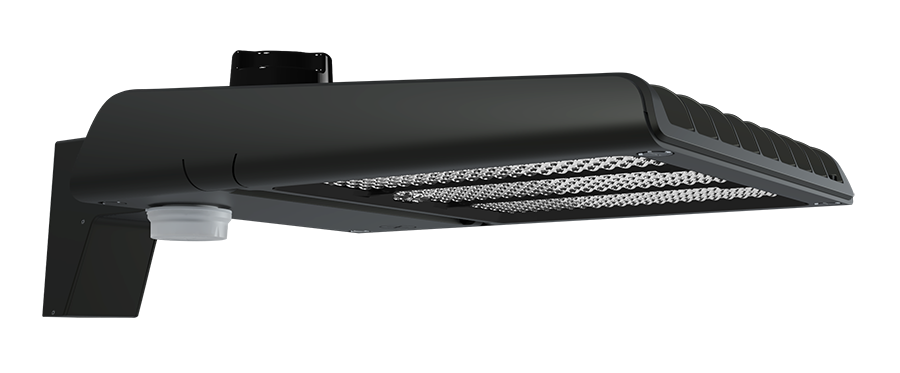

A22-5T150W/MVS
A22-5T150W/MVS
150W 3000/4000/5000K
- DLC Premium listed
- Adjustable Universal Pole Mount
- 7-Pin Receptacle with Shorting Cap
- IP66 Rated
- 100,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 150/120/100W |
| Color Temp | 3000/4000/5000K |
| Lumens | 15,342-22,677 lm |
| Efficacy | 135.7-167.1 lm/W |
| Color Accuracy | 80-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 1.25A/1.00A/0.83A |
| 208V | 0.72A/0.58A/0.48A |
| 240V | 0.63A/0.50A/0.83A |
| 277V | 0.54A/0.43A/0.36A |
| Input Watts | 99.4-151.4W |
Dimensions
Weight: 13.0 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
150W/120W/100W (factory default: 150W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
150W/120W/100W (factory default: 150W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-Q13M99
DLC Product Code: S-Q13M99
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
150W: Replaces up to 400W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
120W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
120W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
Electrical
Driver
Constant Current, Class 1, 120-277V, 50/60 Hz:
150W: 120V: 1.25A, 208V: 0.72A, 240V: 0.63A, 277V: 0.54A
120W: 120V: 1.0A, 208V: 0.58A, 240V: 0.5A, 277V: 0.43A
100W: 120V: 0.83A, 208V: 0.48A, 240V: 0.42A, 277V: 0.36A
150W: 120V: 1.25A, 208V: 0.72A, 240V: 0.63A, 277V: 0.54A
120W: 120V: 1.0A, 208V: 0.58A, 240V: 0.5A, 277V: 0.43A
100W: 120V: 0.83A, 208V: 0.48A, 240V: 0.42A, 277V: 0.36A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.11% at 120V, 6.6% at 277V
Power Factor
99.8% at 120V, 96.3% at 277V
7-Pin Receptacle with Shorting Cap
ANSI C136.41 7-pin receptacle, compatible with wireless control systems
Surge Protection
6kV
Construction
IES Classification
The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Lens
Polycarbonate lens
Housing
Die-cast aluminum
Effective Projected Area
1 Fixture: 0.4
2 Fixtures: 0.8
3 Fixtures: 1.4
4 Fixtures: 1.4
2 Fixtures: 0.8
3 Fixtures: 1.4
4 Fixtures: 1.4
Finish
Formulated for high durability and long-lasting color
Gaskets
High-temperature silicone gaskets
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Adjustable universal pole mount (standard). Slipfitter and wall mount accessory available.
Optical
BUG Rating
Type 5
150W: B4 U0 G2
120W: B4 U0 G2
100W: B4 U0 G2
150W: B4 U0 G2
120W: B4 U0 G2
100W: B4 U0 G2
Sensor Settings
Voltage Input
12V DC Input, IC Solu;tion
Operating Voltage
10-15V
Control
On/Off control
Detection Area
25%/50%/75%/100% (Factory Setting: 100%)
Microwave Frequency
5.8GHz +/- 75MHz
Hold Time
5 sec/30 sec/1 min/10 min/20 min/30 min (Factory Setting: 5 sec)
Microwave Power
<0.3mW
Switching Capacity
<40mA
Daylight Threshold
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable (Factory Setting: Disable)
Mounting Height
2.5 - 4.5 m/8.2 - 14.76 ft
Operating Current
<30mA
Stand-by Period
0 sec/10 sec/30 sec/1 min/5 min/10 min/+∞ (Factory Setting: 0 sec)
Detection Range
9.84 - 22.96 ft (3 - 7 m )
Control Method
0-10V
Stand-by Dimming Level
10%/20%/30%/50% (Factory Setting: 10%)
Detection Angle
360° (ceiling mounted)
Operating Temperature
-35°C to +70°C (-31°F to + 158°F)
Remote Control
Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
