A23-24S-EX39-8CCT-DIM-UNV

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

A23-24S-EX39-8CCT-DIM-UNV

14W 3000/4000/5000K

Wattage & CCT field-adjustable HID replacement lamps with omnidirectional light output

Die-cast housing with superior thermal management

120-277V Universal driver, internal surge protection, and suitable for use in totally enclosed fixtures

Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

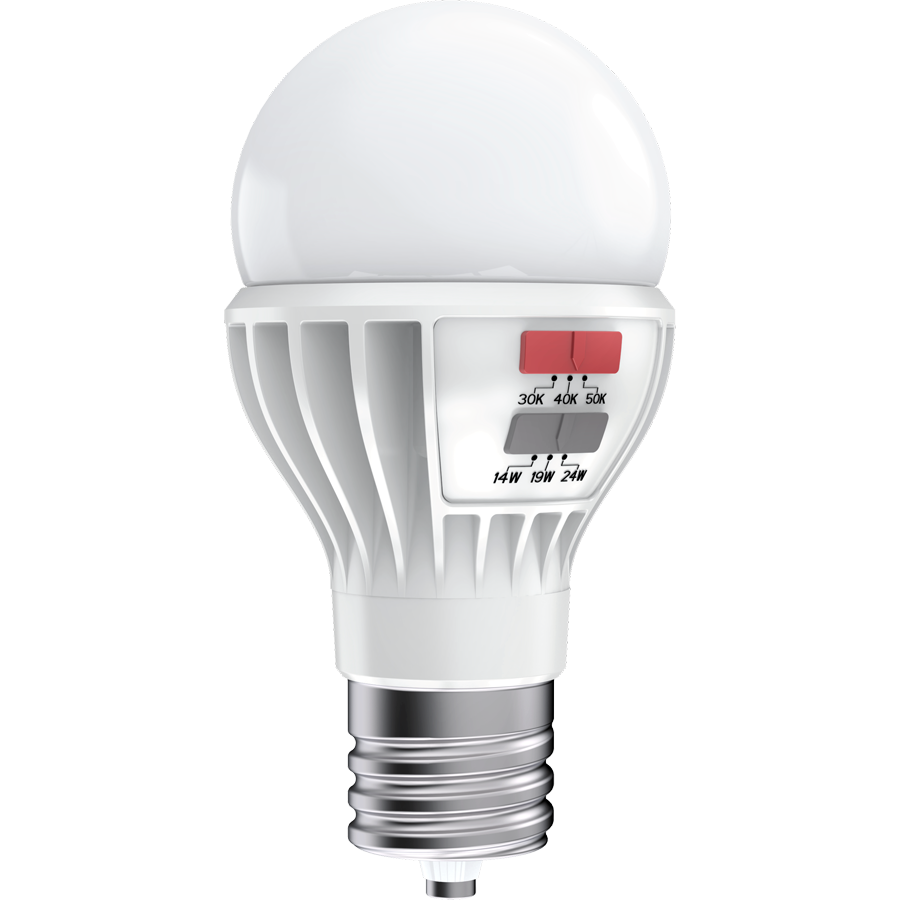

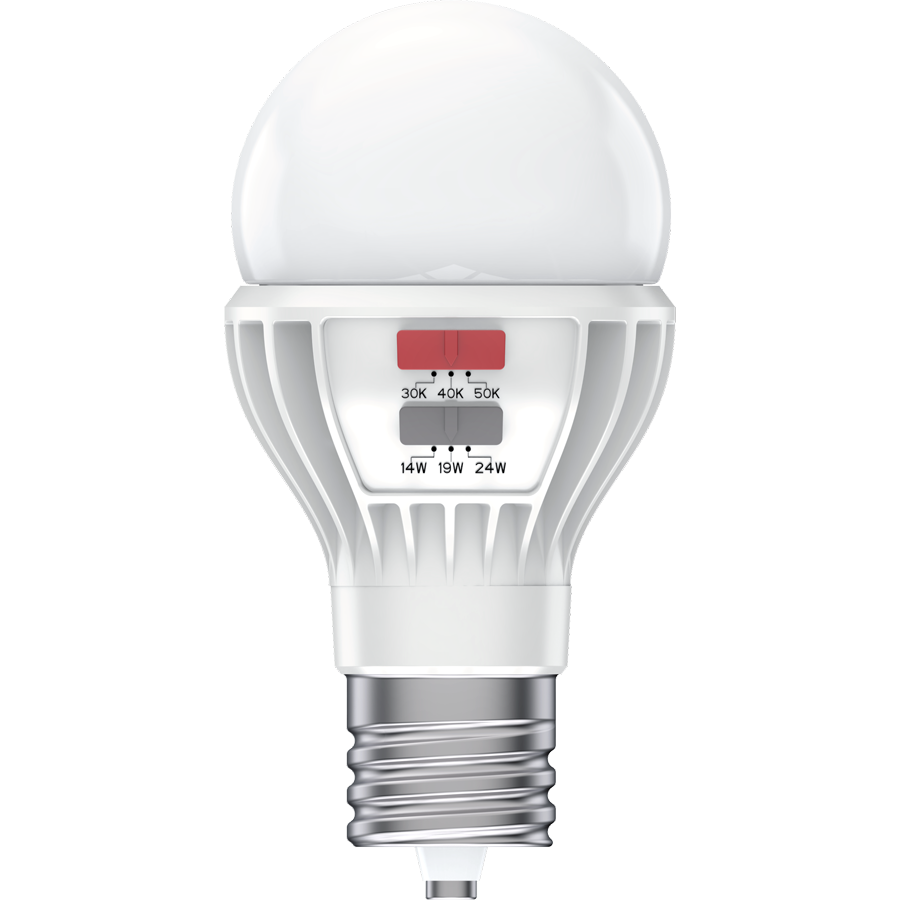

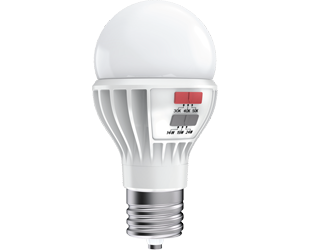

3000/4000/5000K Selectable color temperature

View Technical Specs

View Price & Availability

Performance

Watts	14/19/24W
Color Temp	3000/4000/5000K
Lumens	1931-3423 lm
Efficacy	145.5-157.2 lm/W
Color Accuracy	59-86 CRI
L70 Lifespan	50,000 Hours

Type
120V	0.11A/0.15A/0.16A/0.20A/0.21A
208V	0.06A/0.09A/0.12A
240V	0.05A/0.08A/0.10A/0.11A
277V	0.06A/0.08A/0.10A
Input Watts	12.8-25.1W

EZ-Layout

Create Custom Lighting Layout

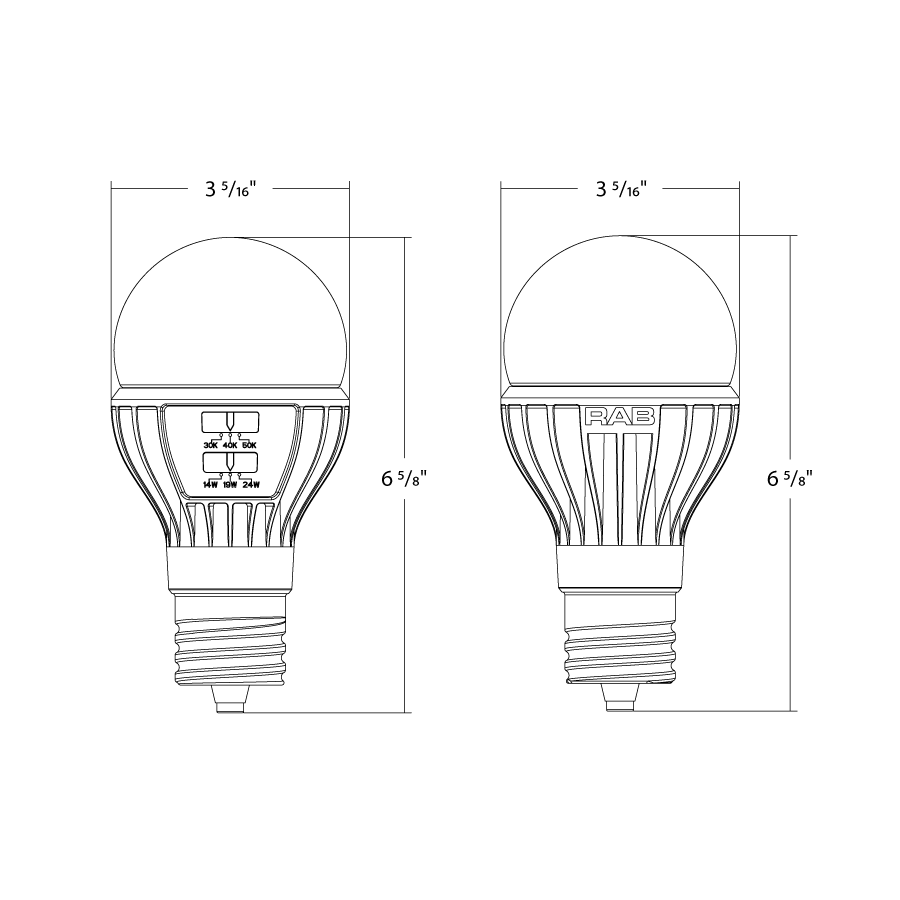

Dimensions

Weight: 1.0 lbs

Technical Specifications

Performance

Product Type

HID Repacement Bulb

Description

These HID replacement lamps provide smooth, diffuse, omnidirectional light, making them great for any HID retrofit installation

Wattage Equivalency

200W Incandescent, 70-100W HID

Input Wattage

24/19/14W

Lumens

3,200/2,550/1,900lm @3000K
3,500/2,800/2,100lm @4000K
3,400/2,750/2,050lm @5000K

Efficacy

133lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

≤20%

Power Factor

≥0.9

Dimmable

Step Dimming: 75-100%
TRIAC Dimming:20-100%

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

200mA

Input Current @ 208V (mA)

120mA

Input Current @ 240V (mA)

105mA

Input Current @ 277V (mA)

95mA

Operating Temperature

-40°F to 113°F (-40°C to 45°C)

Flicker

Step Dimming: 75-100%
TRIAC Dimming:20-100%

Surge Protection

4 kV

LED Characteristics

Beam Angle

230°

Color Temperature

Field adjustable via dip switch 3000/4000/5000K

Color Accuracy (CRI)

80 CRI

R9 Value

High color performance with R9 greater than 14

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Installation Orientation

Universal Installation

Base Type

EX39 Exlusionary Mogul

Construction

Finish

White

Lens Material

Frosted polycarbonate lens diffuses light evenly and smoothly

Enclosure Material

Precision die-cast aluminum heat sink has superior thermal management

Lens Finish

Frosted Milky white

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

IP Rating

IP54

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: N1XMLOEATBA
Learn more about Lightcloud.com.

Certification Model Number

H20047(HIDFA-120S-EX39-8CCT-BYP)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

HID-ACC-E26

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
