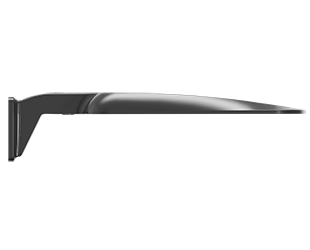

A34T4LWM
250W 3000/4000/5000K
- 100,000-hour LED Life
- 0-10V dimming standard
- IP65 rating protects against dust and water
- 5-Year, limited warranty
Performance
| Watts | 250/200/150W |
| Color Temp | 3000/4000/5000K |
| Lumens | 24,789-41,157 lm |
| Efficacy | 152.3-179.7 lm/W |
| Color Accuracy | 82-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 2.09A/1.66A/1.26A |
| 208V | 1.20A/1.10A/0.80A |
| 240V | 1.10A/0.95A/0.70A |
| 277V | 0.90A/0.74A/0.59A |
| Input Watts | 146-250.4W |
Dimensions
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
250W/200W/150W (factory default 200W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
250W/200W/150W (factory default 200W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-MW83XW
DLC Product Code: S-MW83XW
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
250W: Replaces up to 1,000W Metal Halide (MH) or 600W High Pressure Sodium (HPS)
200W: Replaces up to 750W Metal Halide (MH) or 600W High Pressure Sodium (HPS)
150W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
200W: Replaces up to 750W Metal Halide (MH) or 600W High Pressure Sodium (HPS)
150W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
Electrical
Driver
250W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 2.09A, 208V: 1.20A, 240V: 1.10A, 277V: 0.90A
200W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.66A, 208V: 1.10A, 240V: 0.95A, 277V: 0.74A
150W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.26A, 208V: 0.80A, 240V: 0.70A, 277V: 0.59A
200W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.66A, 208V: 1.10A, 240V: 0.95A, 277V: 0.74A
150W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.26A, 208V: 0.80A, 240V: 0.70A, 277V: 0.59A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection
L-L: 6 kV; L/N-G: 10 kV
10 kV Surge suppressor in addition to surge built into the driver.
10 kV Surge suppressor in addition to surge built into the driver.
Photocell
Integrated photocell included with on/off switch
Construction
IES Classification
The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Clear polycarbonate lens
Housing
Die-cast aluminum housing, lens frame and mounting arm
Effective Projected Area
EPA = 0.5
Vibration Rating
2G
Finish
Formulated for high durability and long-lasting color
Green Technology
Includes recycled plastic and RoHS-compliant components.
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Wall mount
Optical
BUG Rating
250W: B4 U0 G4
200W: B3 U0 G4
150W: B3 U0 G3
200W: B3 U0 G4
150W: B3 U0 G3
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
