ALED104
- 75% energy savings
- Superior heat sinking with die cast aluminum housing and external fins
- 100,000-hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 105W |
| Color Temp | 5100K (Cool) |
| Lumens | 14,159 lm |
| Efficacy | 131.7 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.95A |
| 208V | 0.59A |
| 240V | 0.51A |
| 277V | 0.44A |
| Input Watts | 107.5W |

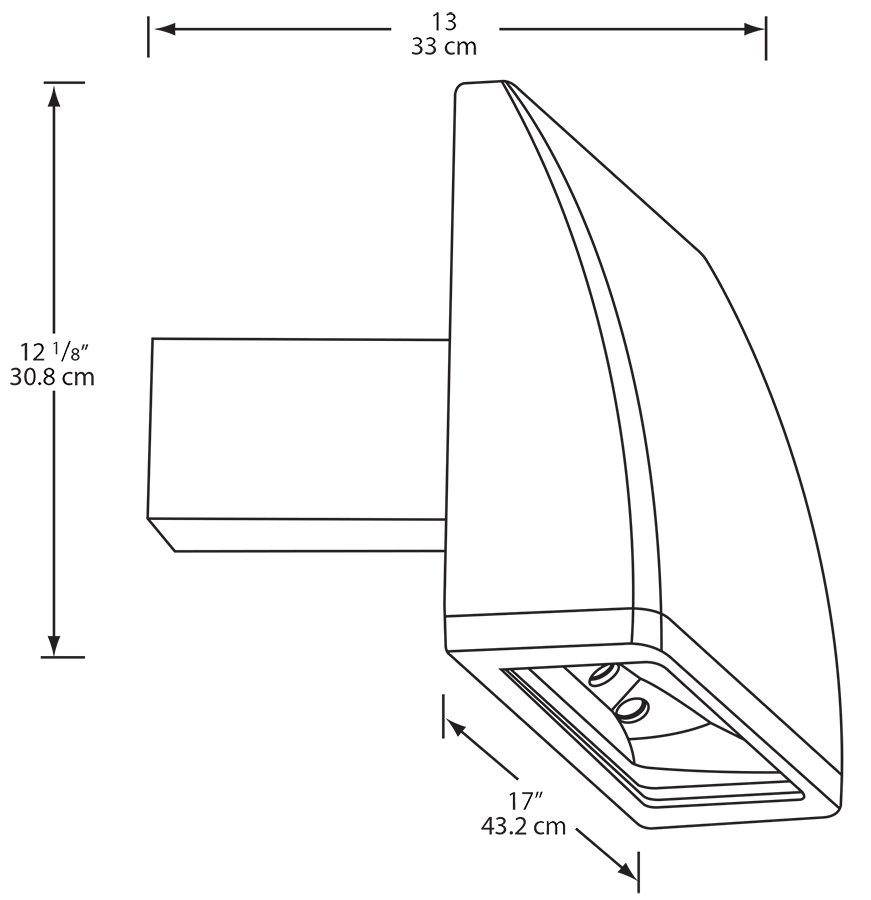

Dimensions
Weight: 29.1 lbs
Technical Specifications
Compliance
UL Listed
UL Suitable for Wet Locations as Uplight and Downlight
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Construction
Standard Mount
Standard 15° mount. Die-cast aluminum wall bracket with (5) 1/2" conduit openings with plugs. Two piece bracket with tether for ease of installation and wiring.
Effective Projected Area (EPA)
EPA = 2.0
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Precision die-cast aluminum housing, lens frame
Arm
Die-cast aluminum with wiring access plate
Lens
Tempered glass
Reflector
Specular vacuum metallized polycarbonate
Gaskets
High-temperature silicone
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Four multi-chip, high-output, long-life LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Other
Patents
The design of the ALED104 is protected by patents pending in US, Canada, China, Taiwan and Mexico
Optical
BUG Rating
B1 U1 G3
Electrical
Driver
Constant current, Class 1, 100-277V, 50/60 Hz, 4kV Surge Protection, 700mA, 100-277V = 0.95A, Power Factor 99.7%.
THD
5.22% at 120V, 7.4% at 277V
Power Factor
99.6% at 120V, 92.4% at 277V
