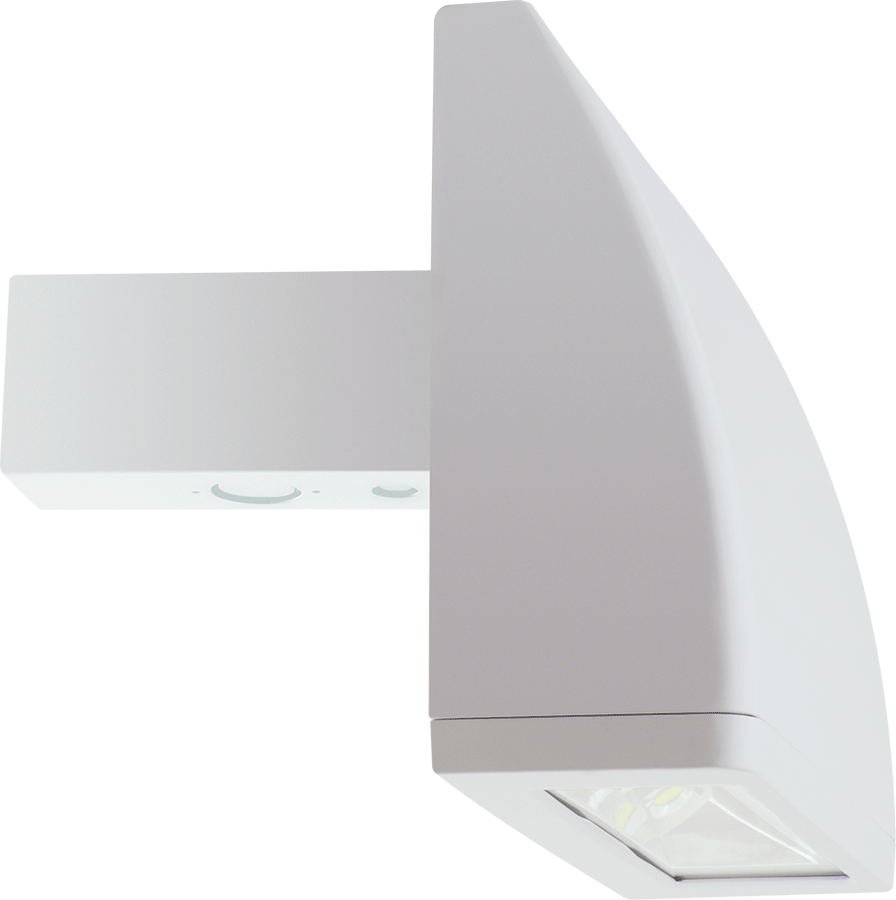

ALED104YW/PCT
ALED104YW/PCT
- 75% energy savings
- Superior heat sinking with die cast aluminum housing and external fins
- 100,000-hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 104W |
| Color Temp | 3000K (Warm) |
| Lumens | 13,728 lm |
| Efficacy | 126.6 |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.95A |
| 208V | 0.59A |
| 240V | 0.51A |
| 277V | 0.44A |
| Input Watts | 108.4W |
Dimensions
Weight: 26.0 lbs
Technical Specifications
Compliance
UL Listed
UL Suitable for Wet Locations as Uplight and Downlight
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PKEHWD79
DLC Product Code: PKEHWD79
Construction
Standard Mount
Standard 15° mount. Die-cast aluminum wall bracket with (5) 1/2" conduit openings with plugs. Two piece bracket with tether for ease of installation and wiring.
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Precision die-cast aluminum housing, lens frame
Arm
Die-cast aluminum with wiring access plate
Lens
Tempered glass
Reflector
Specular vacuum metallized polycarbonate
Gaskets
High-temperature silicone
EPA
1 Fixture: 2.0
2 Fixtures at 90°: 3.5
2 Fixtures at 180°: 4.0
3 Fixtures at 90°: 4.5
4 Fixtures at 90°: 4.5
2 Fixtures at 90°: 3.5
2 Fixtures at 180°: 4.0
3 Fixtures at 90°: 4.5
4 Fixtures at 90°: 4.5
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Four multi-chip, high-output, long-life LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.
Electrical
Driver
Constant current, Class 1, 120-277V, 50/60 Hz, 4kV Surge Protection, 120V: 0.95A, 208V: 0.59A, 240V: 0.51A, 277V: 0.44A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.22% at 120V, 7.4% at 277V
Power Factor
99.7% at 120V, 92.4% at 277V
Photocell
120-277V Twistlock photocell included. Photocell is compatible with 120-277V.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 400W Metal Halide
Other
Patents
The design of the ALED104 is protected by patents pending in US, Canada, China, Taiwan and Mexico
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Optical
BUG Rating
B1 U2 G4
