• 66% energy cost savings vs. HID
  • 100,000-hour LED lifespan
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 150W
Color Temp 5000K (Cool)
Lumens 18,464 lm
Efficacy 118.5 lm/W
Color Accuracy 71 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 1.31A
208V 0.80A
240V 0.69A
277V 0.60A
Input Watts 155.8W
Dimensions
Link to Dimension Drawing

Weight: 33.2 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 400W Metal Halide
Construction
IES Classification
The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Thermal Management
Superior thermal management with external "Air-Flow" fins
Lens
Tempered glass lens
Housing
Die-cast aluminum housing, lens frame and mounting arm
Reflector
Specular vacuum-metallized polycarbonate
Gaskets
High-temperature silicone gaskets
Bracket EPA
2.0.
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
THD
4.9% at 120V, 14% at 277V
Power Factor
99.5% at 120V, 93.7% at 277V
Surge Protection
4kV
Installation
Mounting
Heavy-duty 1/2" thread mounting arm with "O" ring seal & stainless steel screws
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Optical
BUG Rating
B1 U0 G3
Sensor Settings
Operating Voltage
120-277V
Power Consumption
1W
0-10V Sinking Current
50mA
Adjustable High and Low Modes
High: 0-10V; Low: off, 0-9.8V
Adjustable Time Delay
Amount of time in high mode with no motion before switching to low mode: 5 min., 1 -30 min.
Adjustable Cut Off Delay
Time in which the fixture will remain on low mode with no motion before turning off and waiting for new motion to turn on: None, 1 -60 min., 1 -5 hrs.
Adjustable Sensitivy
None, low, medium, maximum
Adjustable Setpoint
None, 1 to 250 fc, auto
Operating Temperature
-40°F to 167°F (-40°C to +75°C)
Operating Humidity
20% to 90% noncondensing
Relay Life Rating
200,000 cycles (120/277VAC), 50,000 cycles (230VAC)
IP Rating
Ingress protection rating of IP66 for dust and water
UL Listed
Suitable for Wet Locations as factory installed
Handheld Wireless Configuration Tool
Adjust settings using handheld wireless configuration tool (catalog# WSREM). Only available with 0-10V dimming driver options. Handheld wireless configuration tool available here.
Multi Level Motion Sensor
*60 ft diameter coverage from 40 ft height.

Recently Viewed Products

 This is a link to the product ALED4T150SF/D10/WS4 ALED4T150SF/D10/WS4
Area Lights 18464 Lumens Aled Type Iv 150W 5000K 0-10V Dimming 120V-277V Slipfitter Mounting Wattstopper Sensor 40 Feet Lens Bronze
 This is a link to the product A19-14-GU24-9CCT-DIM A19-14-GU24-9CCT-DIM
A19 14W 100Eq Cri90 5Cct Fa Dim Gu24
 This is a link to the product BRISKM32L-740/PCU BRISKM32L-740/PCU
Wall Packs 3332 Lumens Brisk 22W 4000K 120V-277V Photocell Bronze
 This is a link to the product G25-3-E26-922/30-F-C-WGD G25-3-E26-922/30-F-C-WGD
A-Line Bulbs 350 Lumens G25 3W Base E26 90Cri 2200K-3000K Filament Clear Dim To Warm

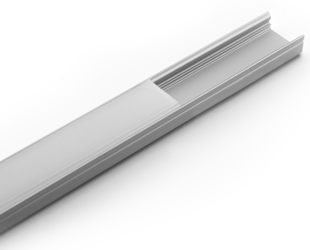

 This is a link to the product TAP12 TAP12
