ALED4T260Y/480/PCT4
ALED4T260Y/480/PCT4
- 66% energy cost savings vs. HID
- 100,000-hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 260W |
| Color Temp | 3000K (Warm) |
| Lumens | 30,076 lm |
| Efficacy | 118.1 lm/W |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 254.6W |
Dimensions
Weight: 79.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 875W Pulse Start Metal Halide
Construction
IES Classification
The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Thermal Management
Superior thermal management with external "Air-Flow" fins
Lens
Tempered glass lens included
Housing
Die-cast aluminum with airflow fins for cooling
Reflector
Vacuum-metalized polycarbonate
Gaskets
High-temperature silicone gaskets
EPA
1 Fixture: 1.2
2 Fixtures at 90°: 2.0
2 Fixtures at 180°: 4.2
3 Fixtures at 90°: 4.2
4 Fixtures at 90°: 3.5
2 Fixtures at 90°: 2.0
2 Fixtures at 180°: 4.2
3 Fixtures at 90°: 4.2
4 Fixtures at 90°: 3.5
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 480V, 50/60Hz, 480V: 0.55A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.51% at 480V
Power Factor
96.6% at 480V
Surge Protection
4kV
For areas prone to surges, upgrade to 10kV surge protection. See 10kV surge protectors here.
For areas prone to surges, upgrade to 10kV surge protection. See 10kV surge protectors here.

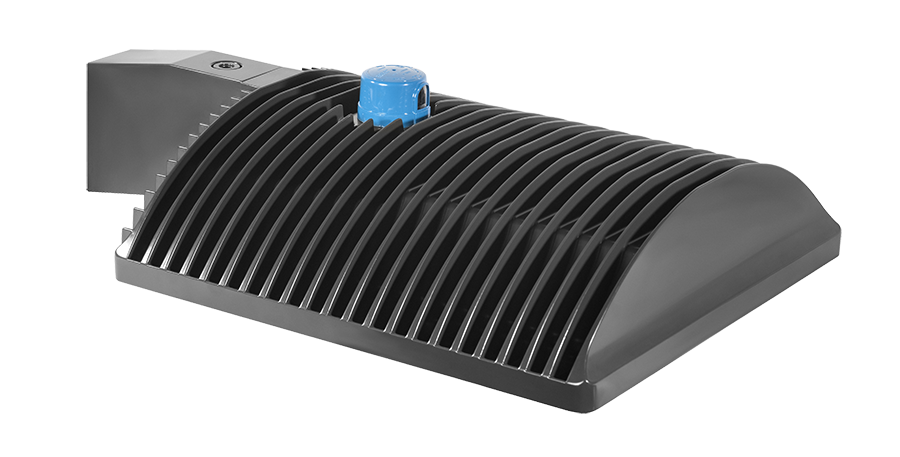

Photocell
480V Twistlock photocell included. Photocell is only compatible with 480V.
Installation
Mounting
Heavy-duty 1/2" thread mounting arm with "O" ring seal & stainless steel screws
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
