ALEDFC52N/D10
ALEDFC52N/D10
- 75% energy savings
- Superior heat sinking with die cast aluminum housing and external fins
- 100,000-hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 52W |
| Color Temp | 4000K (Neutral) |
| Lumens | 7,253 lm |
| Efficacy | 129.5 lm/W |
| Color Accuracy | 76 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.51A |
| 208V | 0.33A |
| 240V | 0.29A |
| 277V | 0.24A |
| Input Watts | 56W |
Dimensions
Weight: 16.4 lbs
Technical Specifications
Electrical
Drivers
Constant Current, Class 2, 1400mA, 100-277V, 50-60Hz, 0.8A, Power Factor 99%
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.24% at 120V, 7.1% at 277V
Power Factor
99.3% at 120V, 97.2% at 277V
Surge Protection
6kV
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 250W Pulse Start Metal Halide
Construction
IES Classification
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Thermal Management
Cast aluminum Thermal Management system for optimal heat sinking. The ALED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
Housing
Precision die-cast aluminum housing, lens frame
Arm
Die-cast aluminum with wiring access plate
Reflector
Specular vacuum-metallized polycarbonate
Gaskets
High-temperature silicone
EPA
1 Fixture: 1.5
2 Fixtures at 90°: 2.4
2 Fixtures at 180°: 2.9
3 Fixtures at 90°: 3.2
4 Fixtures at 90°: 3.2
2 Fixtures at 90°: 2.4
2 Fixtures at 180°: 2.9
3 Fixtures at 90°: 3.2
4 Fixtures at 90°: 3.2
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Two (2) multi-chip, high-output, long-life LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
\
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The WPLED design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico.
Optical
BUG Rating
B1 U0 G1
Recently Viewed Products

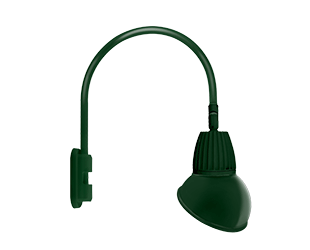

GN5LED26NAD11G
