ALEDS3TSFYA
50W Amber
- Wildlife-friendly amber light
- 0-10V dimmable standard
- IP66 Rated
- 100,000-Hour LED lifespan
- 10-Year, No-Compromise Warranty
Performance
| Watts | 50/35W |
| Color Temp | Amber |
| Lumens | 2,733/2,310 lm |
| Efficacy | 58.4/73.1 lm/W |
| Color Accuracy | |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.67A |
| 208V | 0.40A |
| 240V | 0.34A |
| 277V | 0.30A |
| Input Watts | 46.8/31.6W |
Dimensions
Weight: 14.7 lbs
Technical Specifications
Field Adjustability
Field Adjustable (Wattage)
Field adjustable light output in 2 discrete steps:
Small Housing: 50W/35W (factory default 50W)
Small Housing: 50W/35W (factory default 50W)
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Electrical
Driver
35W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.34A, 208V: 0.20A, 240V: 0.17, 277V: 0.15A
50W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.50A, 208V: 0.30A, 240V: 0.25, 277V: 0.22A
50W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.50A, 208V: 0.30A, 240V: 0.25, 277V: 0.22A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection
Line to Line: 10 kV
Line to Ground: 6 kV
Line to Ground: 6 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 250W Metal Halide
Optical
IES Classification
The Type III distribution is meant to be located near the side of an area, projecting the light outward to fill the area. Ideal for roadways, general parking areas, lighting applications and where a large pool of light is required.
BUG Rating
60W: B1 U0 G2
60W: B1 U0 G2
40W: B1 U0 G1
60W: B1 U0 G2
40W: B1 U0 G1
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Max Power Temp Rating: 104°F (40°C )
Middle Power Temp Rating: 52°C (125°F)
Low Power Temp Rating: 58°C (137°F)
Middle Power Temp Rating: 52°C (125°F)
Low Power Temp Rating: 58°C (137°F)
Housing
Die-cast aluminum
Tilt Increment
Rotates in 5 degree increments
Reflector
Aluminum reflector with white polycarbonate
Vibration Rating
3G vibration rating per ANSI C136.31
Effective Projected Area (EPA)
EPA = 2.4
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting

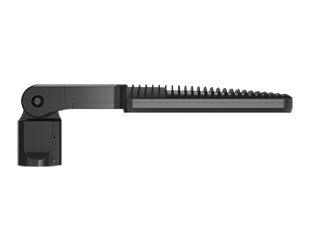

2 3/8" slipfitter mount with stainless steel hardware
Other
10-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
