ALEDXXSW

Spec Sheet IES File Instructions Family Spec Sheet Spec Sheet EZ Layout

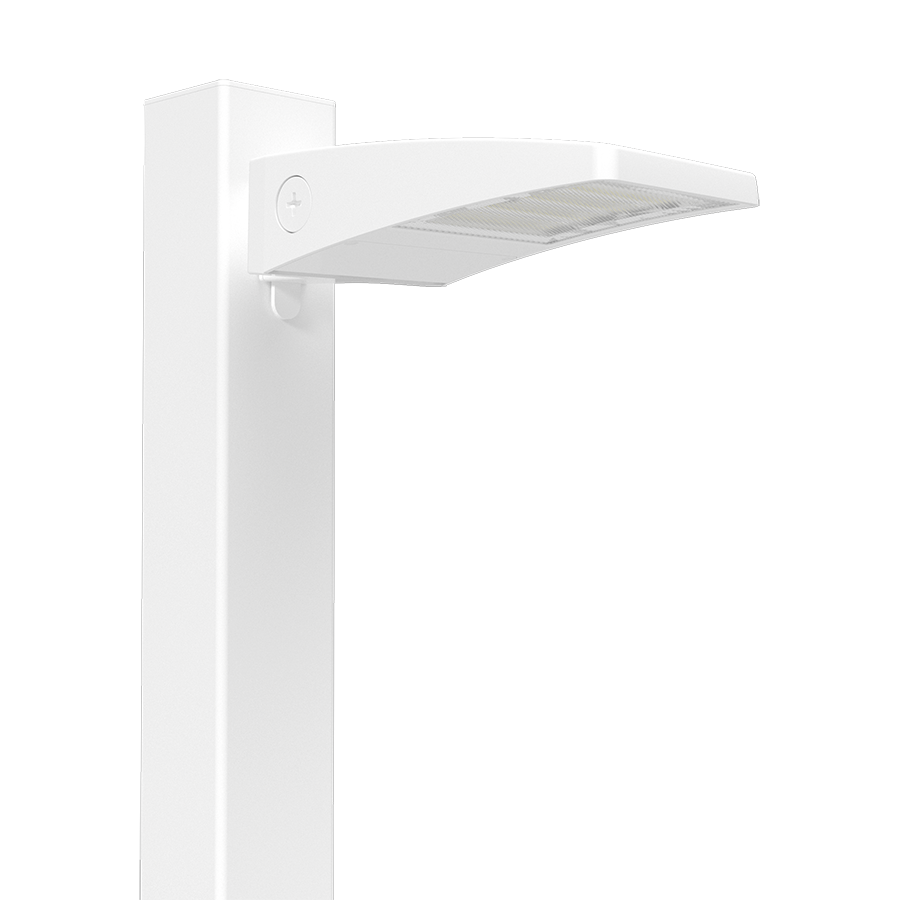

ALEDXXSW

13W 3000/4000/5000K

View Technical Specs

View Price & Availability

Performance

Watts	13/10/6W
Color Temp	3000/4000/5000K
Lumens	833-1,720 lm
Efficacy	135.5-148.3 lm/W
Color Accuracy	83-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.10A/0.07A/0.05A
208V	0.07A/0.05A/0.03A
240V	0.06A/0.04A/0.03A
277V	0.05A/0.04A/0.03A
Input Watts	5.98-12.06W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
13W/10W/6W (factory default: 10W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default: 4000K)

Compliance

UL Listed

Suitable for wet locations

Electrical

Driver

13W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.10A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
10W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.70A, 208V: 0.05A, 240V: 0.04A, 277V: 0.04A
6W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.05A, 208V: 0.03A, 240V: 0.03A, 277V: 0.03A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

4.02% at 120V, 14.83% at 277V

Power Factor

99.5% at 120V, 92.1% at 277V

Photocell

Integrated photocell included with on/off switch

Surge Protection

L-L 2kV; L-G 4kV

Aux Power Supply

Dim to Off

Yes

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Optical

BUG Rating

13W: B1 U0 G1
10W: B0 U0 G1
6W: B0 U0 G1

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Full Cutoff

Allows for conformance to the IDA's fully shielding requirement, emitting no light above 90 degrees.

Housing

Die-cast aluminum

Lens

Acrylic lens

Reflector

High reflection polycarbonate

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Integrated j-box and an optional wall plate included.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
