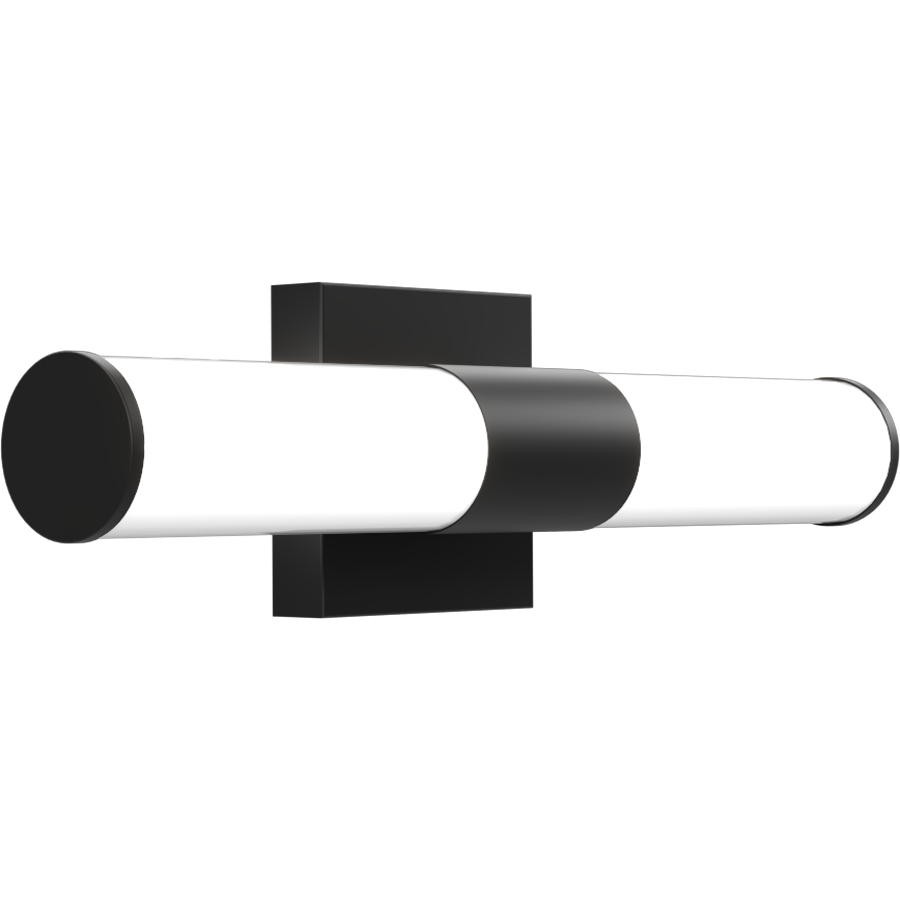

ALR-18RB
ALR-18RB
20W 2700/3000/3500/4000/5000K
- Steel housing with a shatter-resistant polycarbonate lens
- Modern round and square forms available in black or brushed nickel
- 5CCT Selectable 2700/3000/3500/4000/5000K
- 120V driver with TRIAC/ELV dimming down to 10%_
- Damp rated, Title 24 Compliant, 50,000 hrs, 5-year no compromise warranty
Performance
| Watts | 20W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1357-1487 lm |
| Efficacy | 68.7-75.8 lm/W |
| Color Accuracy | >90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current, Class 2 |
| 120V | 0.18A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 19.6-19.8W |
Dimensions
Technical Specifications
Performance
Product Type
Linear Bath Bar
Description
The Allure Vanity Family is a sleek & modern fixture perfect for single or multi-family projects.
Wattage Equivalency
150W Incandescent
Input Wattage
20W
Nominal Lumens
1,300lm
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Driver
Linear
Optical
Fixture Efficacy
65lm/W
Electrical
THD
<50%
Power Factor
>0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
180mA
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
<30%
LED Characteristics
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Wall Mount in Horizontal or Vertical orientation
Construction
Length
14"
Shape
Linear Bar with Round Lens
Finish
Black
Enclosure Material
Polycarbonate/Metal
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors in dry and damp environments.
IC Rated
No
Air Tight
No
Energy Star Approved
No
DLC Listed
No
Certification Model Number
V031(ALR-18RB)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
No
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
None
