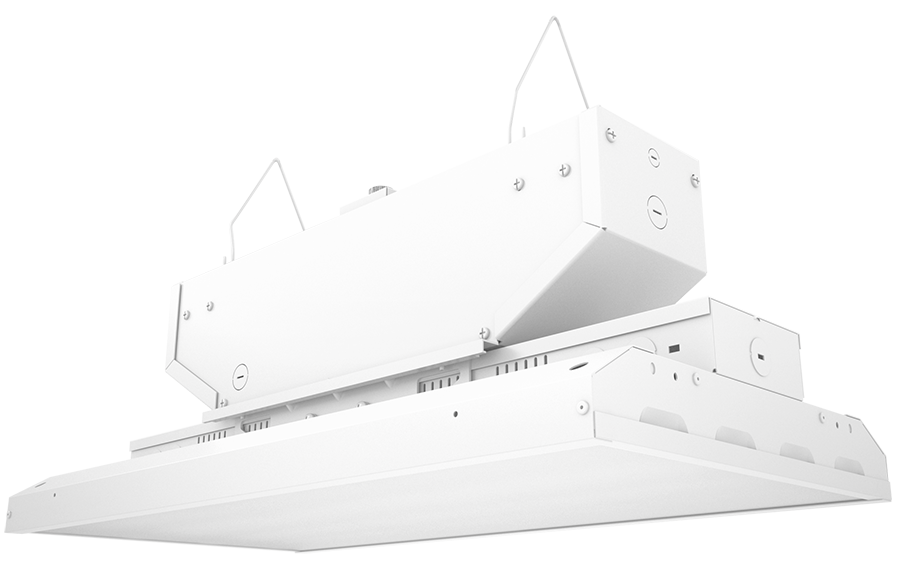

ARBAY2-90/LCS/E2

Spec Sheet IES File Spec Sheet EZ Layout

ARBAY2-90/LCS/E2

High efficiency. Low price.

Available with factory-installed Lightcloud controls

Ideal for industrial warehouse spaces

50,000 hour LED lifespan

5-Year, limited warranty and 10-Year, No-Compromise Lightcloud Warranty

View Technical Specs

View Price & Availability

Performance

Watts	90W
Color Temp	5000K (Cool)
Lumens	11,812 lm
Efficacy	134.2 lm/W
Color Accuracy	84 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.75A
208V	0.45A
240V	0.39A
277V	0.32A
Input Watts	88W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 25.2 lbs

Technical Specifications

Lightcloud

Lightcloud Sensor Installed

Occupancy, vacancy, and closed-loop daylight harvesting in one versatile sensor. Control any fixture in your Lightcloud system. Learn more at www.lightcloud.com

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

Performance

Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.75A, 208V: 0.45A, 240V: 0.39A, 277V 0.32A

THD

6.8% at 120V, 8.3% at 277V

Power Factor

99.6% at 120V, 96.9% at 277V
