ARBAY3-275/PIR
ARBAY3-275/PIR large main
  • High efficiency. Low price.
  • Ideal for industrial warehouse spaces
  • 100,000 hour LED lifespan
  • 5-Year, limited warranty
 View Technical Specs
View Price & Availability
Performance
Watts 275W
Color Temp 5000K (Cool)
Lumens 39,685 lm
Efficacy 143
Color Accuracy 83 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 2.25A
208V 1.30A
240V 1.12A
277V 1.00A
Input Watts 277.6W
Dimensions
Link to Dimension Drawing

Weight: 18.6 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P6Q8WDOE
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Construction
Operating Temperature
-4°F(-20°C) to 122°F ( 50°C)
Electrical
Driver
Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 2.25A, 208V: 1.30A, 240V: 1.12A, 277V: 1.0A
THD
3.73% at 120V, 7.29% at 277V
Power Factor
99.9% at 120V, 95.1% at 277V

Recently Viewed Products

This is a link to the product ARBAY3-275/PIR ARBAY3-275/PIR
Aerobay 3Ft 275W 5000K 120-277V Dimmable Passive Infrared Sensor White
This is a link to the product HALV18L927-MC-W/BL HALV18L927-MC-W/BL
Architectural 385 Lumens Halv Forward Light 25W 90Cri 2700K Metallic Spun Copper Lens White Finish Bi-Level Control
This is a link to the product PRT70Y/480/LC PRT70Y/480/LC
Porto Xl 18In 70W Warm Led 480V Dim Polycarb Lens Bronze Lightcloud Controller
This is a link to the product HALVS10L935-MG-S HALVS10L935-MG-S
Architectural 250 Lumens Halvs Forward & Up/Down Light 14W 90Cri 3500K Metallic Spun Gold Lens Silver Finish

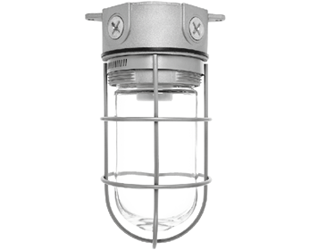

This is a link to the product VP100DGB VP100DGB
