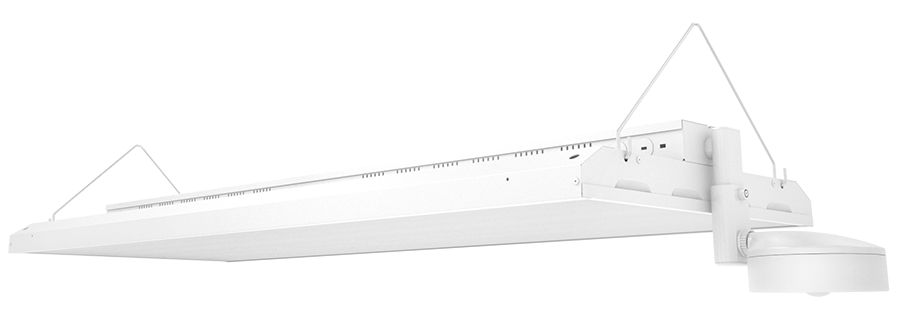

ARBAY4-260/LCS
Lightcloud Logo
ARBAY4-260/LCS large main
  • High efficiency. Low price.
  • Available with factory-installed Lightcloud controls
  • Ideal for industrial warehouse spaces
  • 50,000 hour LED lifespan
  • 5-Year, limited warranty and 10-Year, No-Compromise Lightcloud Warranty
 View Technical Specs
View Price & Availability
Performance
Watts 260W
Color Temp 5000K (Cool)
Lumens 36,224 lm
Efficacy 136.8 lm/W
Color Accuracy 84 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 2.17A
208V 1.29A
240V 1.12A
277V 0.93A
Input Watts 264.8W
Dimensions
Link to Dimension Drawing

Weight: 28.6 lbs

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More
Lightcloud
Lightcloud Sensor Installed
Occupancy, vacancy, and closed-loop daylight harvesting in one versatile sensor. Control any fixture in your Lightcloud system. Compatible with the 8.5" reflectors. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 2.17A, 208V: 1.29A, 240V: 1.12A, 277V 0.93A
THD
7.2% at 120V, 8.6% at 277V
Power Factor
99.5% at 120V, 96.9% at 277V
