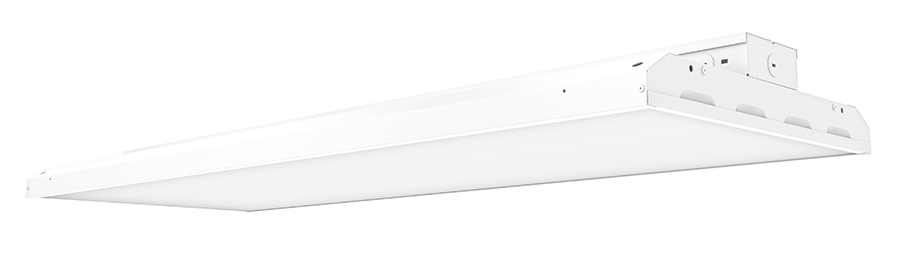

ARBAY4-260N/LC

Spec Sheet IES File Master Specification Features Spec Sheet EZ Layout

ARBAY4-260N/LC

High efficiency. Low price.

Available with factory-installed Lightcloud controls

Ideal for industrial warehouse spaces

50,000 hour LED lifespan

5-Year, limited warranty and 10-Year, No-Compromise Lightcloud Warranty

View Technical Specs

View Price & Availability

Performance

Watts	260W
Color Temp	4000K (Neutral)
Lumens	36,181 lm
Efficacy	136 lm/W
Color Accuracy	84 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	2.17A
208V	1.29A
240V	1.12A
277V	0.93A
Input Watts	266.1W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 28.6 lbs

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More

Lightcloud

Lightcloud Controller Installed

LCLC/W
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Electrical
