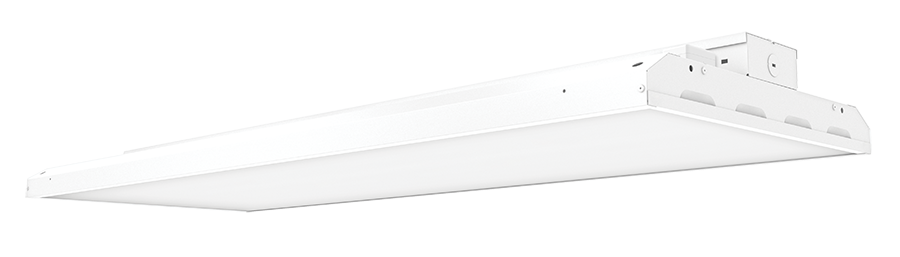

ARBAY4-260N/LC/E2
ARBAY4-260N/LC/E2 large main
  • High efficiency. Low price.
  • Available with factory-installed Lightcloud controls
  • Ideal for industrial warehouse spaces
  • 50,000 hour LED lifespan
  • 5-Year, limited warranty and 10-Year, No-Compromise Lightcloud Warranty
 View Technical Specs
View Price & Availability
Performance
Watts 260W
Color Temp 4000K (Neutral)
Lumens 36,181 lm
Efficacy 136 lm/W
Color Accuracy 84 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 2.17A
208V 1.29A
240V 1.12A
277V 0.93A
Input Watts 266.1W
Dimensions

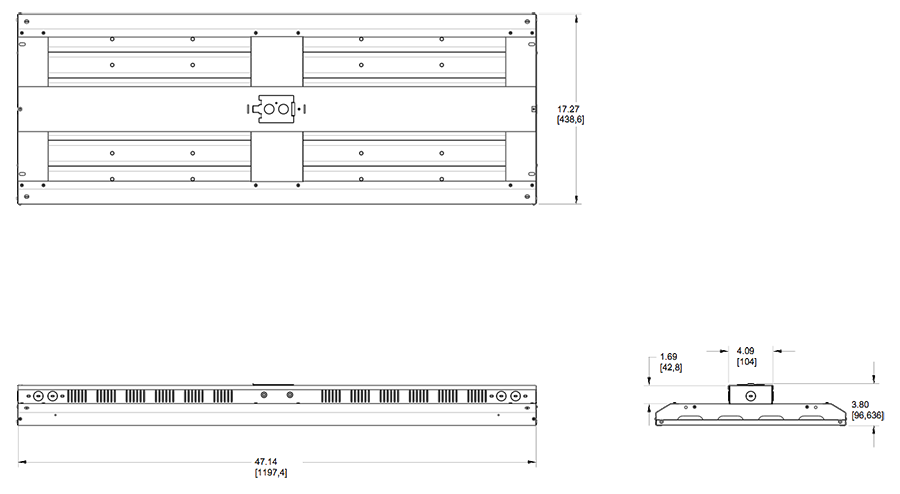

Link to Dimension Drawing

Weight: 38.7 lbs

Technical Specifications
Lightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 2.17A, 208V: 1.29A, 240V: 1.12A, 277V 0.93A
THD
7.1% at 120V, 8.4% at 277V
Power Factor
99.5% at 120V, 96.9% at 277V
