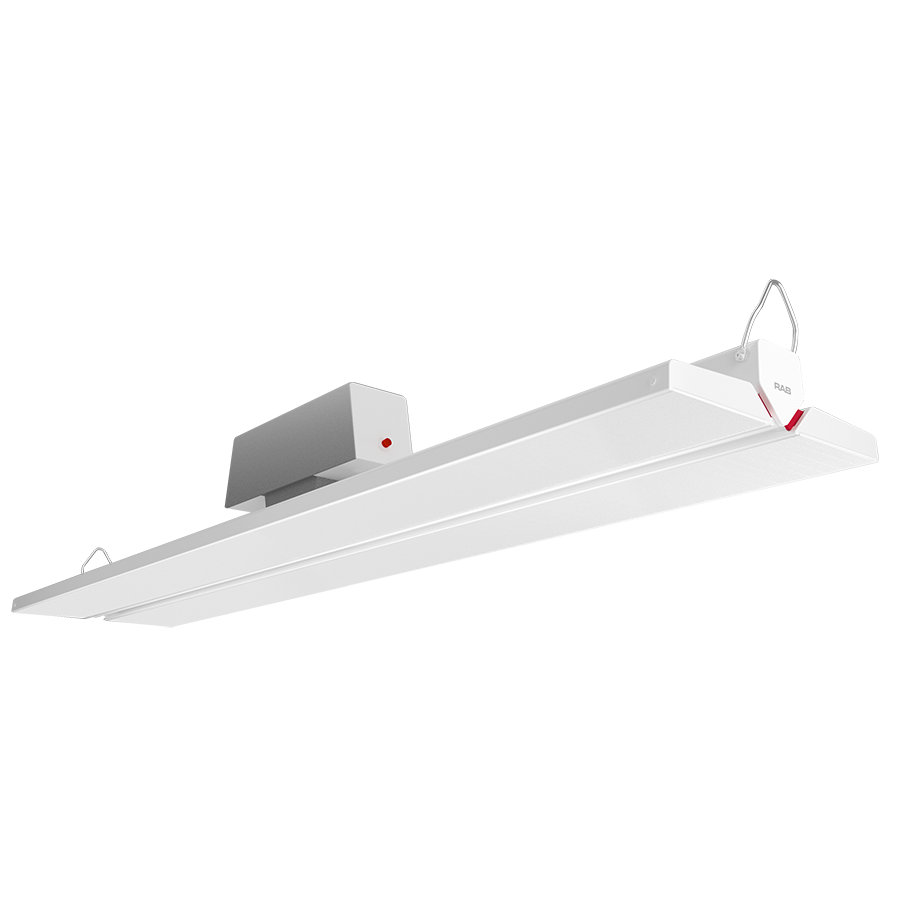

ARL/E

360W 4000/5000K

0-10V Dimming, standard

100,000-hour LED lifespan

DLC Premium listed

5-Year, no-compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	360W
Color Temp	4000/5000K
Lumens	27,222-49,779 lm
Efficacy	137.2-155.6 lm/W
Color Accuracy	83-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	2.98A/2.12A/1.52A
208V	1.73A/1.30A/0.87A
240V	1.50A/1.13A/0.75A
277V	1.27A/0.94A/0.70A
Input Watts	175-355.9W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 11.9 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
360W with 3 Power Preset:
100% (360W), 75% (270W), and 50% (180W)
Color Temperature Selectable:
4000K and 5000K(factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-8VZGVK

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Electrical

Driver

100% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.98A, 208V: 1.73A, 208V: 1.50A, 277V: 1.27A
75% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.12A, 208V: 1.30A, 208V: 1.13A, 277V: 0.94A
50% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.52A, 208V: 0.87A, 208V: 0.75A, 277V: 0.70A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

9.78% at 120V, 7.98% at 277V

Power Factor

99.5% at 120V, 96.5% at 277V

Surge Protection

6kV

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Construction

Maximum Ambient Temperature

Suitable for use in up to 60°C (140°F)

Lens

Polycarbonate lens

Reflector

Polyethylene Terephthalate (PET)

Housing

Aluminum

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Comes standard with V-hooks for chain mounting. Accessories available for pendant and surface mounting (purchased separately).

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
