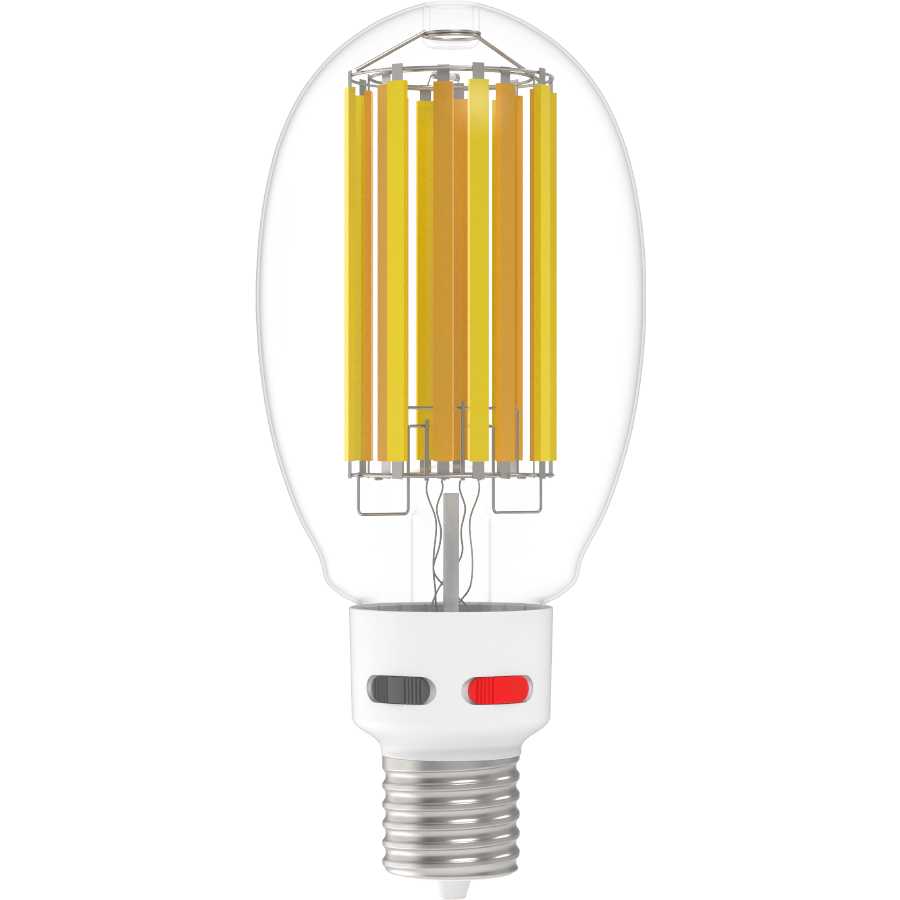

FHID-45S-EX39-8CCT
FHID-45S-EX39-8CCT
- Compact design offering the perfect fit with existing HID fixtures
- Same look and feel as traditional HID lamps
- Suitable for use in both enclosed and open fixtures
- Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- 3 Selectable wattages and CCTs 3000/4000/5000K
Performance
| Watts | 45/38/30W |
| Color Temp | 3000/4000/5000K |
| Lumens | 5,100-8,100 lm |
| Efficacy | 170-185 lm/W |
| Color Accuracy | |
| L70 Lifespan |
| Input Voltage | 120-277V |
| Power Factor | 0.9 |
| Flicker | N/A |
| THDi | <20% |
Dimensions
Technical Specifications
Performance
Product Type
Glass LED HID Lamps
Description
Glass LED HID replacement lamps offer high-powered brightness with LED filament technology. Available in many standard ANSI sizes without sacrificing on traditional aesthetics.
Wattage Equivalency
320W
Input Wattage
45/38/30W
Lumens
3000K 7,650lm@45W
3000K 6,460lm@38W
3000k 5,100lm@30W
4000K 8,100lm@45W
4000K 6,840lm@38W
4000K 5,400lm@30W
5000K 8,325lm@45W
5000K 7,030lm@38W
5000K 5,550lm@30W
3000K 6,460lm@38W
3000k 5,100lm@30W
4000K 8,100lm@45W
4000K 6,840lm@38W
4000K 5,400lm@30W
5000K 8,325lm@45W
5000K 7,030lm@38W
5000K 5,550lm@30W
Efficacy
170lm/w @ 3000K
180lm/w @ 4000K
185lm/w @ 5000K
180lm/w @ 4000K
185lm/w @ 5000K
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
<20%
Power Factor
≥0.9
Dimmable
3 step brightness adjustable
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
375mA
Input Current @ 208V (mA)
216mA
Input Current @ 240V (mA)
188mA
Input Current @ 277V (mA)
162mA
Operating Temperature
-22°F to 113°F (-30°C to + 45°C)
Surge Protection
4kV
LED Characteristics
Beam Angle
360°
Color Temperature
Field adjustable via dip switch 3000/4000/5000K
Color Accuracy (CRI)
80 CRI
R9 Value
High color performance with R9 greater than 1
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Installation Orientation
Universal Installation
Base Type
EX39 Exlusionary Mogul
Construction
ANSI Size
ED37
Endcap Material
Metal
Enclosure Material
Glass Lamp Envelop
Lens Finish
Clear
Compliance
Listings
ETL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
Fixture Rating
Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.
Suitable for use in open fixtures.
IP Rating
IP54
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
Certification Model Number
H10110(FHID-45S-EX39-8CCT)
California Energy Commission (CEC) Status
Lawful for Sales in California
Rohs
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
HID-ACC-E26
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
\
