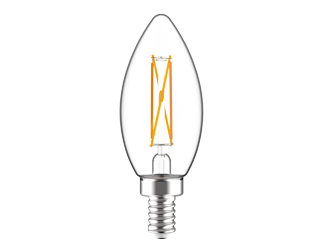

B11-5-E12-922/30-F-C-WGD

Spec Sheet IES File Dimmer Compatibility List LM79 FCC Caution Spec Sheet EZ Layout

Replacement for conventional decorative lamps

Filament LED construction gives a unique traditional look and feel for decorative and ambient applications

Produces rich and vibrant colors, >90CRI

Rated for use in enclosed and open fixtures in dry and damp locations

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

Title 20 Compliant, ENERGY STAR Compliant, UL Listed

Smooth warm to dim transition between 2200K to 3000K color temperatures

Uniform dimming down to 10% (See Dimmer Compatibility List)

View Technical Specs

View Price & Availability

Performance

Watts	5W
Color Temp	2200/3000K
Lumens	500 lm
Efficacy	90.9
Color Accuracy	90 CRI
L70 Lifespan	15,000 Hours

Input Voltage	120V
Power Factor	>0.7
Flicker	<30%
THDi	N/A

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Product Type

Decorative

Input Wattage

5.5W

Lumens

500lm

Efficacy

90.9lm/W

L70 Lifespan

15,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

60W Incandescent

Compliance

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

2200/3000K

Color Accuracy (CRI)

>90 CRI

Beam Angle

360°

Electrical

Power Factor

>0.7

Dimmable

Yes

Flicker

<30%

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

120V

Operating Frequency

50/60Hz

Construction

Bulb Shape

B11

Endcap Material

Nickel-Aluminum

Enclosure Material

Glass

Installation

Base Type

E12

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
