Performance
| Watts | 3W |
| Color Temp | Tunable White 2200K-6500K (16+ million colors) |
| Lumens | 355 lm |
| Efficacy | 93 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 15,000 Hours |
| Type | Constant Current |
| 120V | 0.35A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 3.8W |
Dimensions
Weight: 0.1 lbs
Technical Specifications
Lightcloud
Lightcloud Blue Installed
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.rablighting.com/feature/new-lightcloud-blue.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.rablighting.com/feature/new-lightcloud-blue.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
SmartShift
SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.
Requires the NANO/LCB (sold separately)
Requires the NANO/LCB (sold separately)
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 200 feet clear line of sight; Up to 120 feet around corners
Outdoor: Up to 200 feet clear line of sight; Up to 120 feet around corners
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 5 times and return to full brightness.
Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.
Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT. See the product instruction sheet for more details.
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 5 times and return to full brightness.
Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.
Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT. See the product instruction sheet for more details.
Product Overview
Product Type

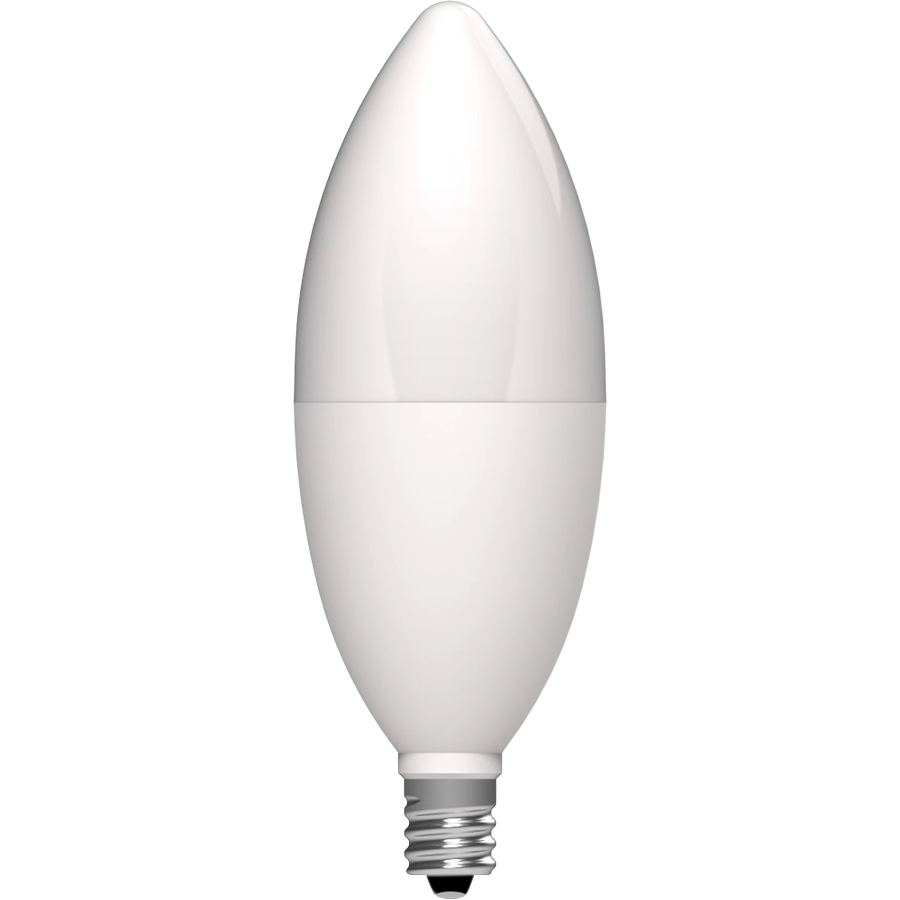

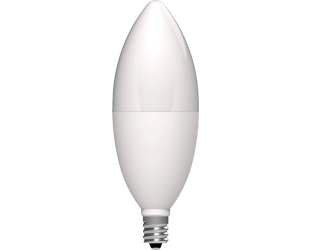

B11 RGBW
Performance
Description

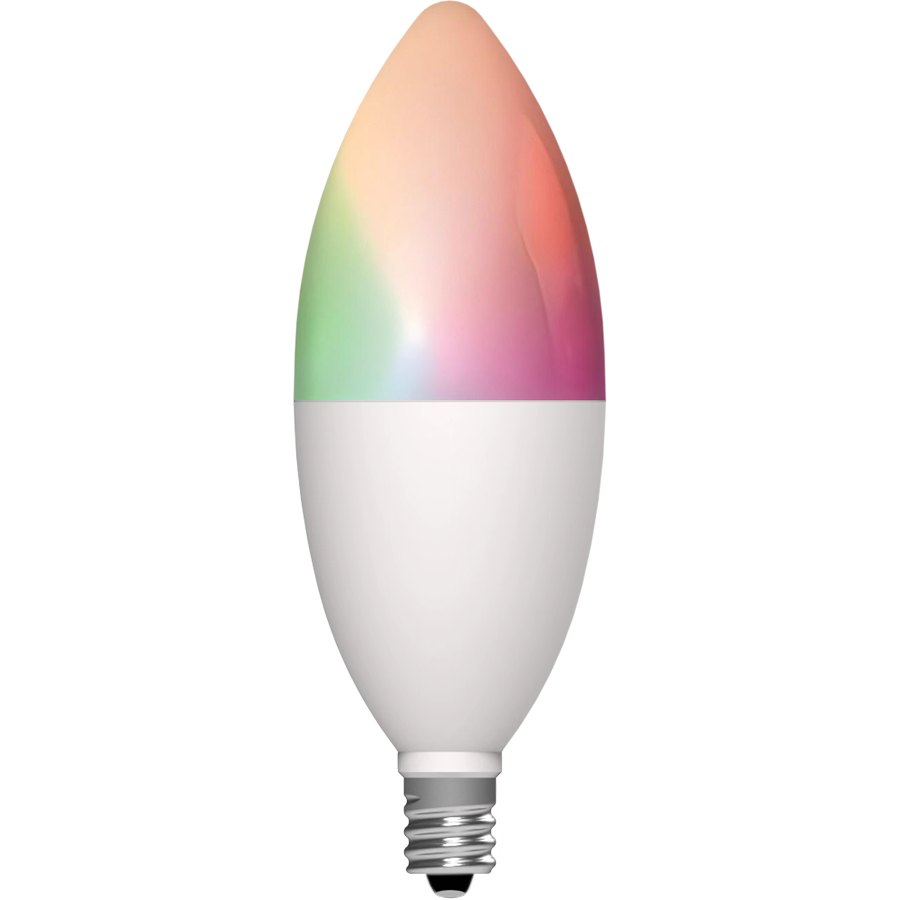

Color-changing smart lamps with Lightcloud Blue. Customizable scenes and schedules, and SmartShift circadian lighting.
Wattage Equivalency
40W Incandescent
Input Wattage
3.8W
Lumens (Nominal)
355lm
Efficacy
93lm/W
L70 Lifespan
15,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 60Hz; 120V: 35mA
Dimmable
Yes via the Lightcloud Blue mobile app and devices. This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Input Voltage
120V
Operating Temperature
-13°F to 140°F (-25°C to 60°C)
LED Characteristics
Beam Angle
250°
Color Temperature
Default: 3000K
Adjustable using the Lightcloud Blue mobile app
Tunable White 2200K - 6500K
16+ million colors|
Adjustable using the Lightcloud Blue mobile app
Tunable White 2200K - 6500K
16+ million colors|
Color Tuning
Yes, 16+ million colors using Lightcloud Blue
Color Accuracy (CRI)
90 CRI
Natural Spectrum
No
R9 Value
High color performance with R9 greater than 0
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Base Type
E12 Candelabra
Construction
Shape
B11
Finish
White
Lens Finish
Frosted
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry environments.
Fixture Rating
Suitable for use in open fixtures
Energy Star Approved
No
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
DLC NLC Listed
The Lightcloud control system is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
Safety & Compliance
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
