B5 - RAB Lighting

B5

Spec Sheet Spec Sheet

B5 large main

B5

"Flexi" mounting lugs can mount to top or side

Green hex slotted washerhead ground screw in pre tapped hole

Heavy die cast aluminum

Two easy knockout mounting holes

Versatile cover mounting system accepts most common covers

Close-up plugs allow Phillips or slotted screwdrivers for easy installation

View Technical Specs

View Price & Availability

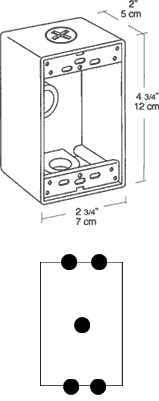

Dimensions

Link to Dimension Drawing

Weight: 0.6 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

Other

Outlet Box Construction

Precision die cast aluminum

Tap Size

1/2"

Installation

Outlet Box Mounting Lugs

16 gauge corrosion protected steel with Phillips Flat head mounting screws

Construction

Ground Screw

#10-24 Green corrosion protected steel slotted hex washer head screw provided in pre-tapped hole

Hole Count

5 Hole
