• IC rated for direct contact with insulation
  • Quick connect provided for electrical connection to the LED Trim
  • Airtight in accordance to ASTM E283
  • Damp Location (Wet location when used with compatible luminaire)
  • 24-1/2" bar hangers included with captive nails and alignment foot
View Technical Specs

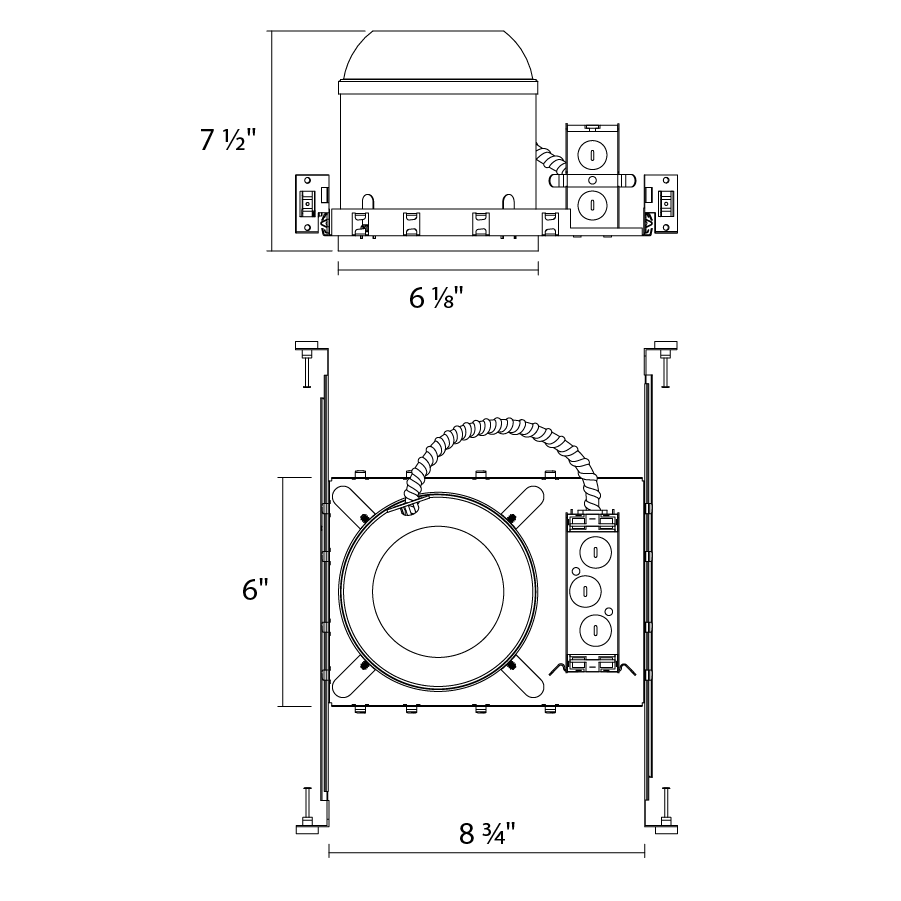

Dimensions
Link to Dimension Drawing

Weight: 2.1 lbs

Technical Specifications
Performance
Product Type

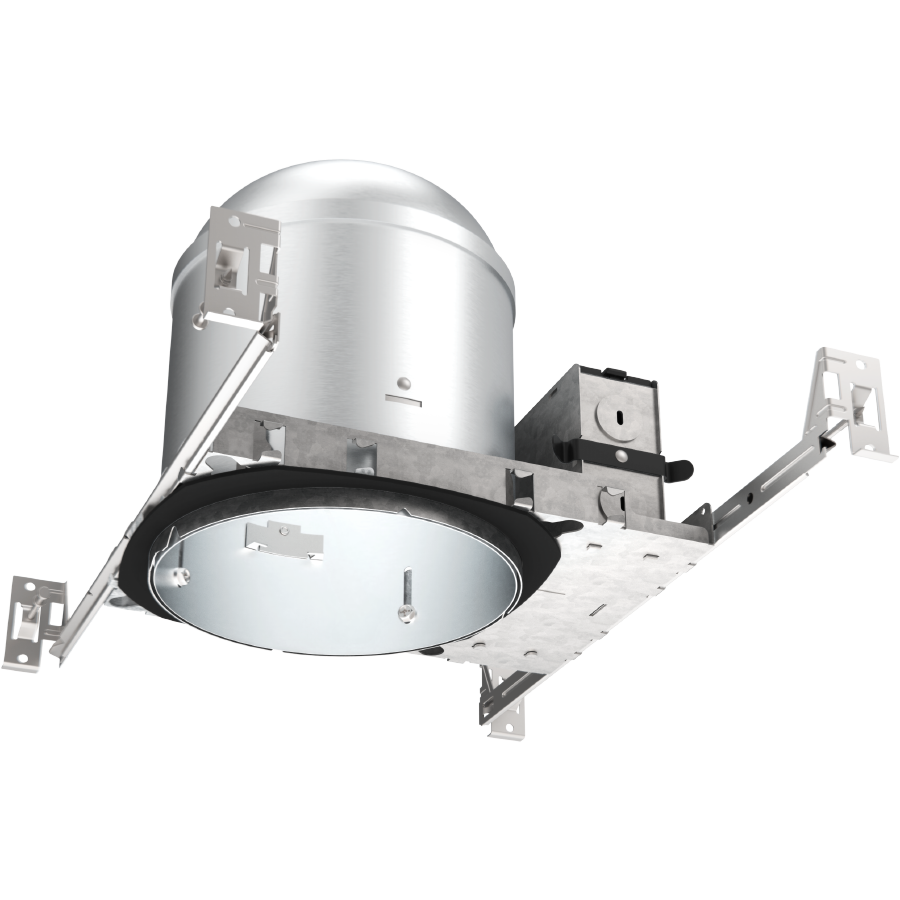

IC Air-Tight LED Dedicated Recessed housings
Construction
Size
6"
Housing
0.040 aluminum housing with riveted cap adjusts for ceiling thicknesses from 5/8" to 1-1/4"
Nailer Bars
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Hanger bars have T-Bar slot and alignment feet. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allows easy installation in a suspended ceiling.
Junction Box
Prewired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2" trade size knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
Romex Strain Relief
Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Mounting
New construction housing
Air Tight
Housing certified Air Tight as per ASTM-E283
Electrical
Dimmable
Specified by downlight
Input Voltage
120V
Operating Temperature
122°F (50°C) max.
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
IC Rated
Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
