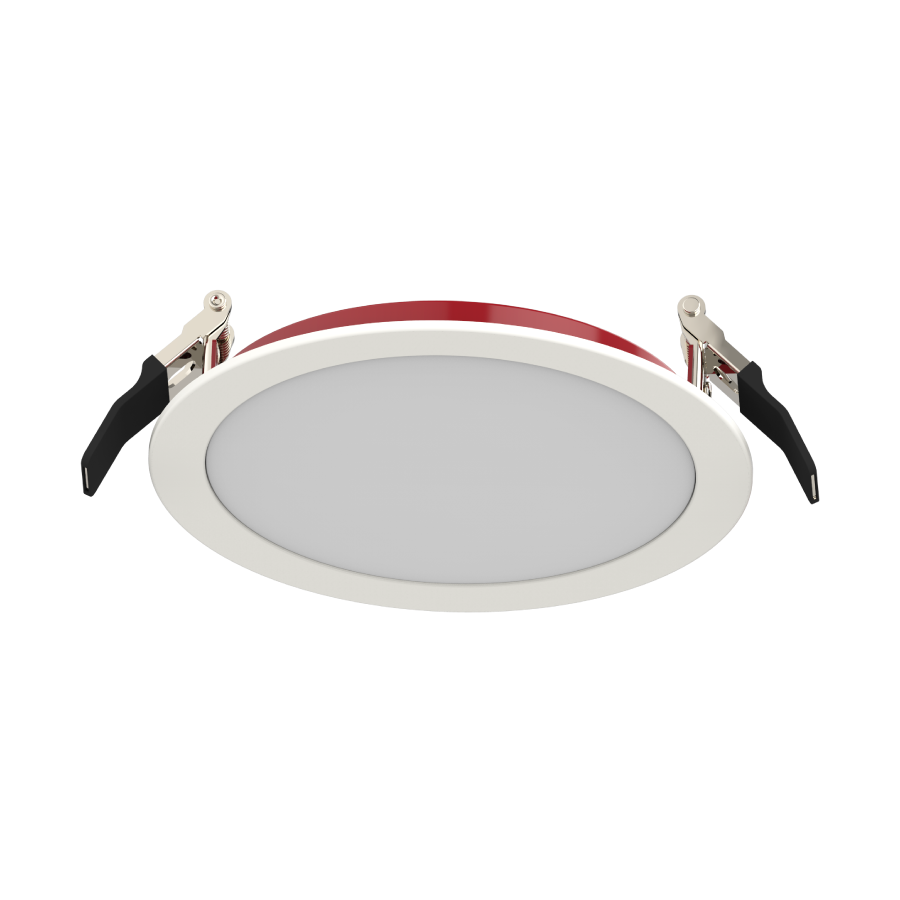

BACKDRAFT6
BACKDRAFT6
- Complies with UL 263, tested and certified for 2 hours
- 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
- Super slim, edge-lit fixture
- No recessed housing or J-box required
- New construction or retrofit applications
Performance
| Watts | 15W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1,330 lm |
| Efficacy | 89 |
| Color Accuracy | >90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current, Class 2 |
| 120V | 0.14A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 15W |
Dimensions
Weight: 1.4 lbs
Technical Specifications
Performance
Product Type
Edge-Lit Wafer
Description
Fire-resistant edge-lit wafer offered in 4" and 6" models with 5 selectable color temperatures in one wafer. The remote driver makes these ideal for new construction and retrofit applications.
Wattage Equivalency
75W Halogen
Input Wattage
15W
Lumens
2700K @ 1,270lm; 3000K @ 1,313lm; 3500K @ 1,364lm; 4000K 1,378lm; 5000K 1,327lm
Efficacy
2700K @ 85lm/W; 3000K @ 88lm/W; 3500K @ 91lm/W; 4000K @ 92lm/W; 5000K @ 88lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Compliance
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
