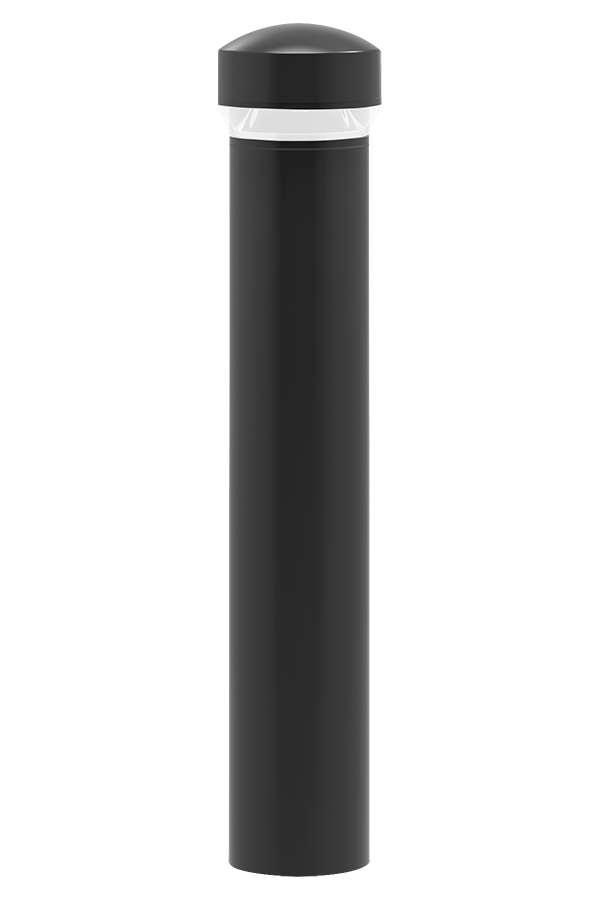

BDLEDR12-32H
BDLEDR12-32H large main
  • Patented base mount design for super sturdy installation
  • Durable construction and frosted vandal-resistant polycarbonate lens
  • Precision-engineered optics deliver maximum downward lighting without glare
  • Four leveling screws provided for easy installation
  • 100,000-hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 12W
Color Temp 5000K (Cool)
Lumens 1,310 lm
Efficacy 109.2 lm/W
Color Accuracy 74 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.13A
208V 0.09A
240V 0.08A
277V 0.07A
Input Watts 12W
Dimensions

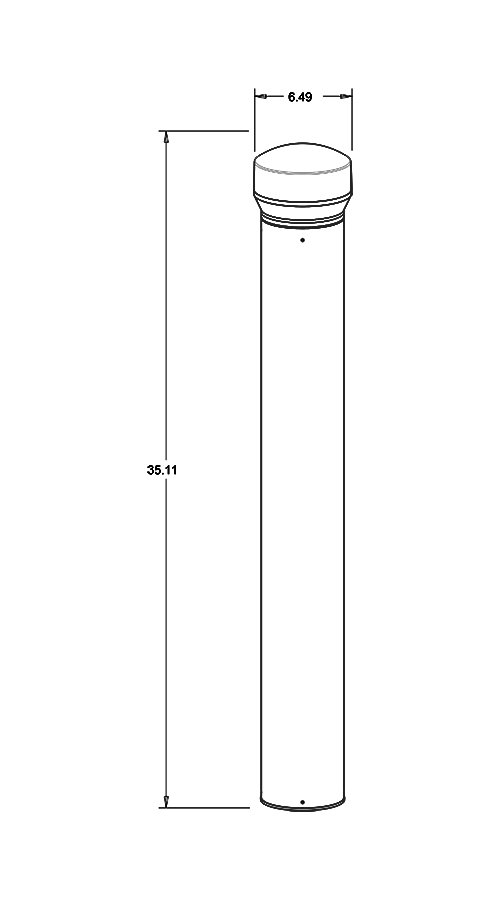

Link to Dimension Drawing

Weight: 10.2 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
BUG Rating
B1 U3 G1
Construction
Height
32"
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Thermal Management
Cast aluminum Thermal Management system for optimal heat sinking. The BDLED is designed for cool operation, maximum efficiency and long life by minimizing LED junction temperature.
Electrical
Driver
Constant Current, Class2, 100-277V, 50/60 Hz, 4kV Surge Protection, 700mA, 120V: 0.13A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A
THD
12.9% at 120V, 22.5% at 277V
Power Factor
98.3% at 120V, 88.1% at 277V
