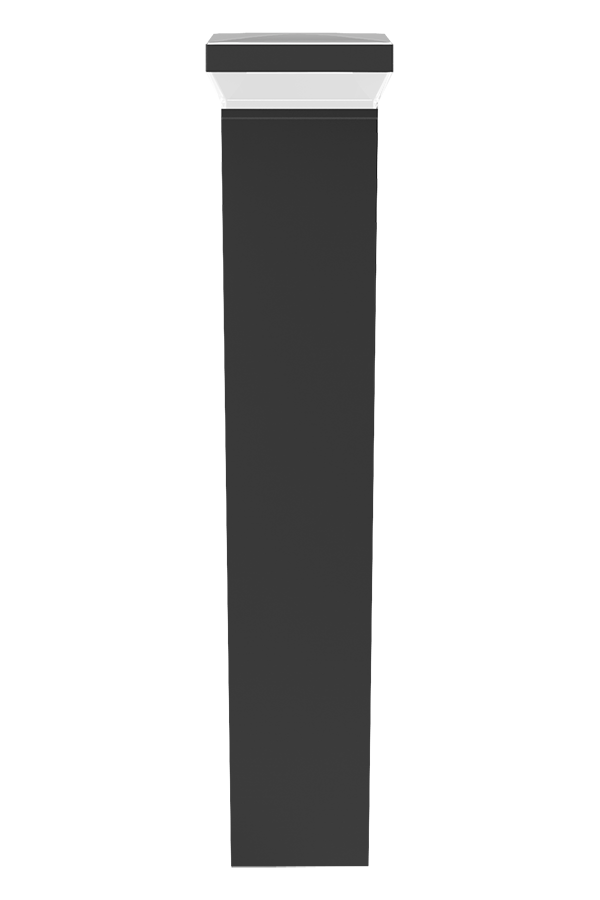

BLED24-32H/EC
BLED24-32H/EC large main
  • Backup battery UL924 listed
  • Patent-pending base mount design for super sturdy installation
  • Durable construction and vandal-resistant polycarbonate lens
  • 90 minutes illumination time during power interruption
  • 360° lighting pattern
  • Precision-engineered optics deliver maximum downward lighting without glare
  • Four leveling screws provided for easy installation
  • 100,000-hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 24W
Color Temp 5000K (Cool)
Lumens 2,533 lm
Efficacy 110.6 lm/W
Color Accuracy 69 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.26A
208V 0.18A
240V 0.15A
277V 0.14A
Input Watts 22.9W
Dimensions

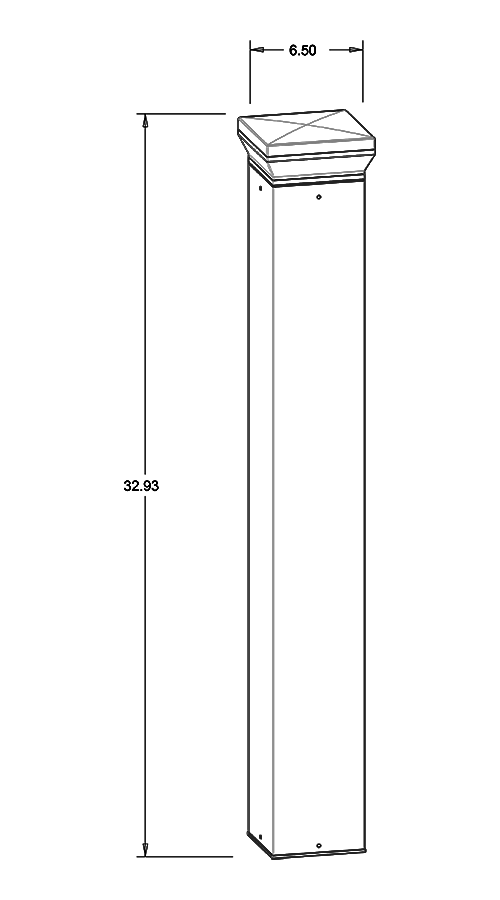

Link to Dimension Drawing

Weight: 25.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
Cold Start BDLED24with Battery Backup
Minimum starting temperature is -20°C/-4°F
Electrical
Driver
Constant Current, Class 2, 100-277V, 50/60 Hz, 4kV Surge Protection, 720mA, 120V: 0.26A, 208V: 0.18A, 240V: 0.15A, 277V: 0.14A
THD
12.5% at 120V, 11.4% at 277V
Power Factor
98.7% at 120V, 91.7% at 277V
Battery Backup
Two field-replaceable, high-temperature, maintenance-free, nickel-cadmium batteries
Optical
BUG Rating
B2 U3 G2
