• High output LED
  • 100,000-hour life
  • Superior heat sinking with die cast aluminum housing
  • Meets ADA Requirements
  • Cutting-Edge, Heat-Dissipating Design
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 26W
Color Temp
Lumens 3,304 lm
Efficacy 111.6 lm/W
Color Accuracy
L70 Lifespan
Type Constant Current
120V 0.22A
208V
240V
277V
Input Watts 29.6W
Dimensions

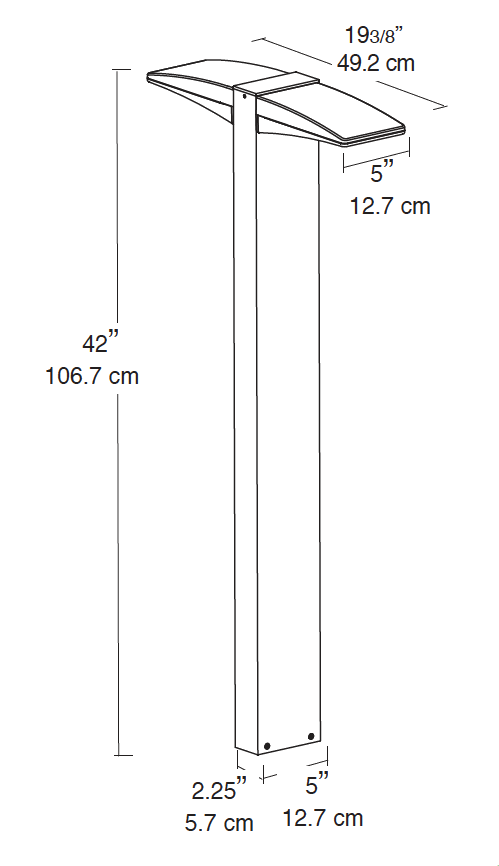

Link to Dimension Drawing

Weight: 22.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V 0.05A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
7.08% at 120V, 15.05% at 277V
Power Factor
99% at 120V, 90.4% at 277V
Surge Protection
4 kV
Construction
Junction Box
Junction Box Not Included
Maximum Ambient Temperature
Suitable for use in up to 131°F (55°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
