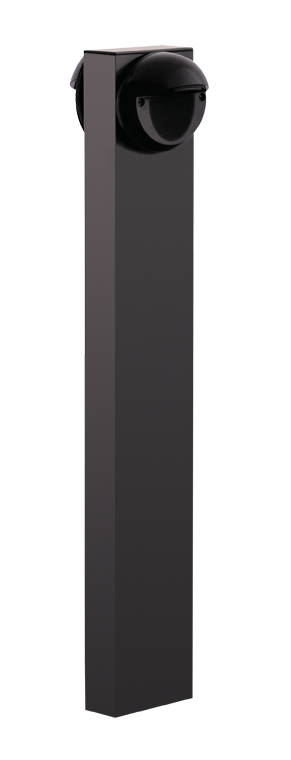

BLEDR2X5-36N

Spec Sheet Instructions Spec Sheet

BLEDR2X5-36N

High output LED

100,000-hour life

Superior heat sinking with die cast aluminum housing

Meets ADA Requirements

View Technical Specs

View Price & Availability

Performance

Watts	5W
Color Temp	4000K (Neutral)
Lumens	310 lm
Efficacy	29.5 lm/W
Color Accuracy	85 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.2A
208V	0.12A
240V	0.1A
277V
Input Watts	10.5W

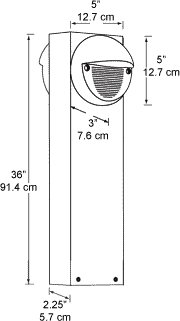

Dimensions

Weight: 11.7 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

LED Characteristics

Color Temperature

4000K

Lumen Maintenance

The LED will deliver 70% of its initial lumens at 100,000 hours of operation

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Housing

Precision die-cast aluminum housing, lens frame

Mounting

36" Bollard

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Anchor Bolt

The anchor bolts for the BLED's have the following dimensions 1/2 - 13 x 12 1/4" long with 2 3/4" hook.Available online in pdf file.

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Electrical

Driver

Multi-chip 2x5W high output long life LED Driver Constant Current, Class II, 120V-240V, 50/60 Hz, 400mA
