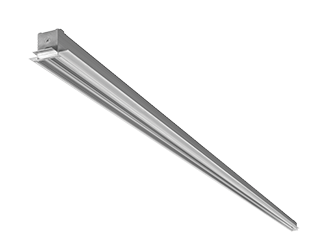

• 10 ft. Recessed Linear Slot Rough-In includes housing and driver
  • Offers a trimless design for a seamless appearance
  • 3-step binning for color consistency
  • 0-10V dimming, standard
  • 100,000-Hour LED lifespan
View Technical Specs
Performance
Watts 100W
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.72A
208V 0.42A
240V 0.39A
277V 0.36A
Input Watts
Dimensions

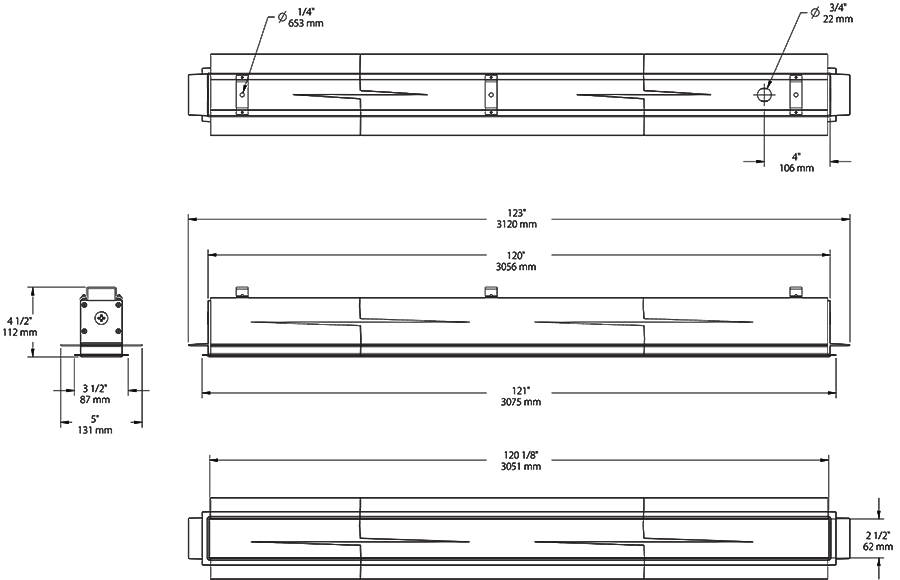

Link to Dimension Drawing

Weight: 33.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations. Recommended for indoor use only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Construction
IC Rated
Suitable for direct contact with insulation
Housing
Precision extruded aluminum
Lens
High-transmission, microprismatic acrylic lens for smooth light distribution and uniformity
Finish
Natural aluminum
Green Technology
Mercury and UV free. RoHS-compliant components.
Optical
Reflector
40° reflector
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Special Order
Available in 6-8 weeks by special request
Recessed Rough-In
This Recessed Rough-In must be ordered with Recessed Finishing Section in order to make a complete fixture. See here for 10 ft Recessed Finishing Section.
Electrical
Drivers
120 - 277V, 0 - 10V dimming down to 10%, 93.7% power factor, 1 kV surge protection
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Installation
Mounting
Trimless flange for seamless spackling to edge of fixture
